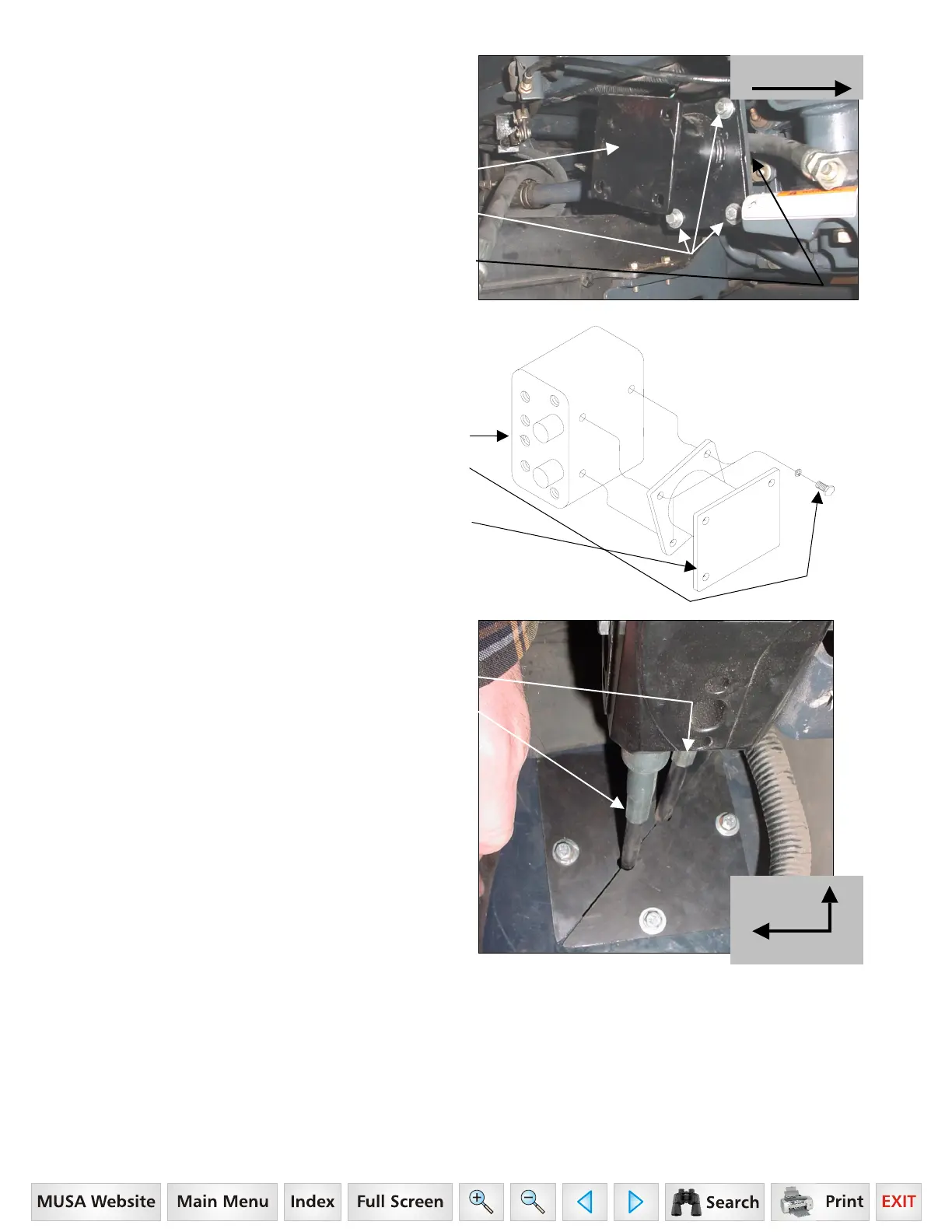

3.3.17. Install valve mount to tractor mount located
under RH side of cab behind cab step that was just
removed. Secure using 8mm x 20mm hex bolt and
5/16" lockwasher, 3 places.
Valve Mount
8mm x 1.25P x 20mm Hex Bolt
and 5/16" Lockwasher,
3 places.
Tractor Mount
3.3.18. Install valve to valve mount under RH side of
cab using 5/16" x 1" hex bolt and 5/16" lockwasher,
3 places.
Valve
5/16" x 1" Hex Bolt
and 5/16" Lockwasher,
3 places.
Valve Mount
3.3.19. Identify and trace cables from Single Lever
Controller.
Raise and Lower (Lift) Cable is Frontward Cable
Dump and Rollback (Tilt) Cable is Rearward Cable
3.3.20. Install raise and lower (lift) cable to upper spool
of valve and dump and rollback (tilt) cable to lower
spool of valve as follows. Refer to photo and illustration
following.
Front of
Tractor
Center of Cab
Front of Tracto
r
