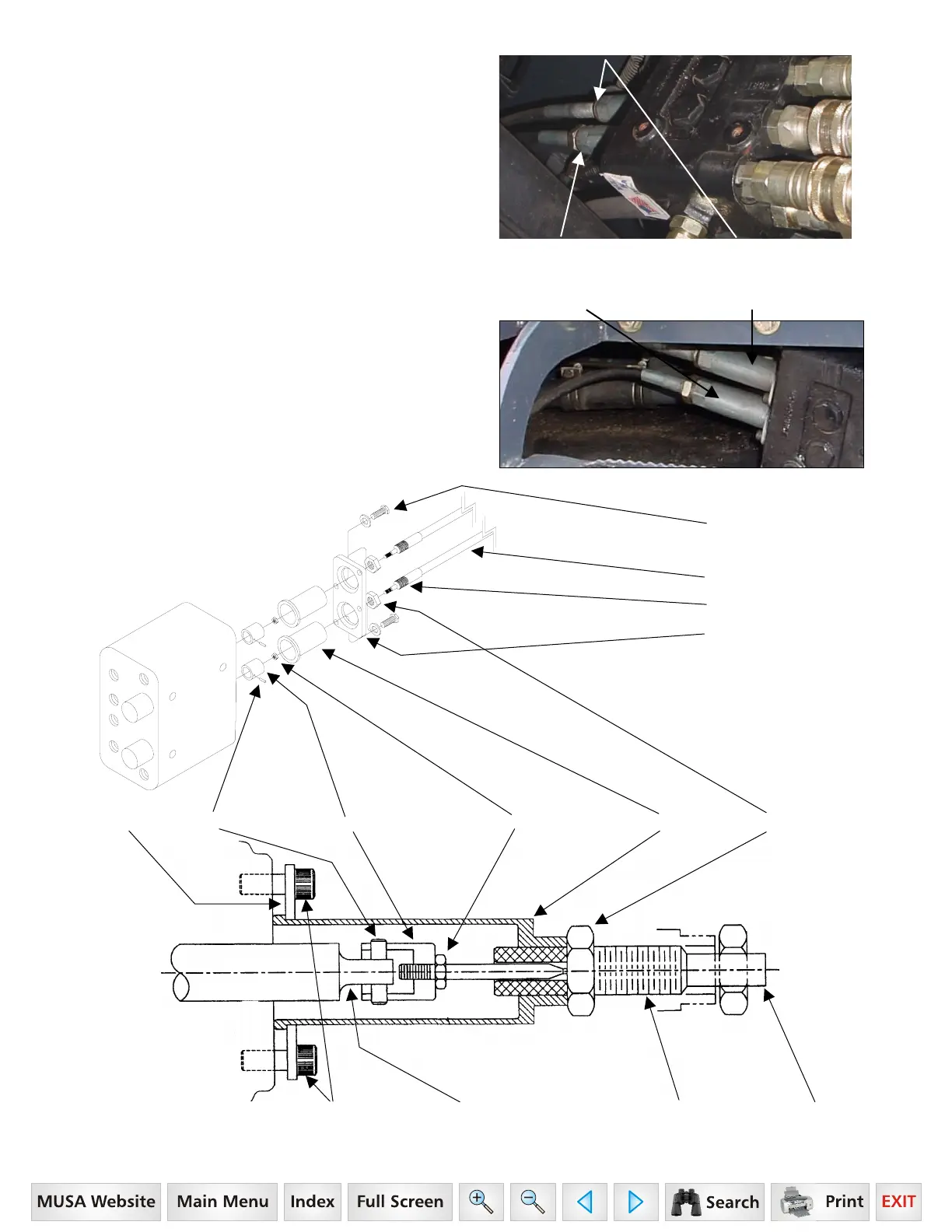

A. Thread large jam nuts entire length of threaded hubs
and onto cables.
B. Place dual flange over both cables.
C. Thread sleeves entire length of threaded hubs and
onto cables.
D. Thread small jam nuts onto cable threaded rods until
they bottom out on threads.
E. Place connectors onto threaded rods and against jam
nuts. Align connectors so they will mate with spool
terminal eyes and secure jam nuts against connectors.
F. Slide connectors onto spools and align the holes.
Insert pins through connectors and spool holes.
G. With cables attached to valve and single handle
controller, turn the sleeves onto threaded hubs until
they are flush with the valve face.
Install Install
Dump and Rollback Raise and Lower
(Tilt) Cable to (Lift) Cable to
Lower Spool of Valve Upper Spool of Valve
NOTE: When turning the sleeves, make sure the single
handle controller remains in the neutral position.
H. Tighten large nuts against sleeves to lock in position.
I. Slide dual flange into position and secure using socket
head cap screws and flatwashers.
NOTE: Over-tightening will distort flange.
NOTE: Controller handle can be repositioned slightly
by tightening or loosing sleeves.
Dual Flange Pin Connector Small Nut Sleeve Large Nut
Socket Head Cap Screw/Flatwasher Spool Terminal Eye Threaded Hub Cable
Socket Head
Cap Screw and
Flatwasher
Cable
Threaded Hub
Dual Flange
