27

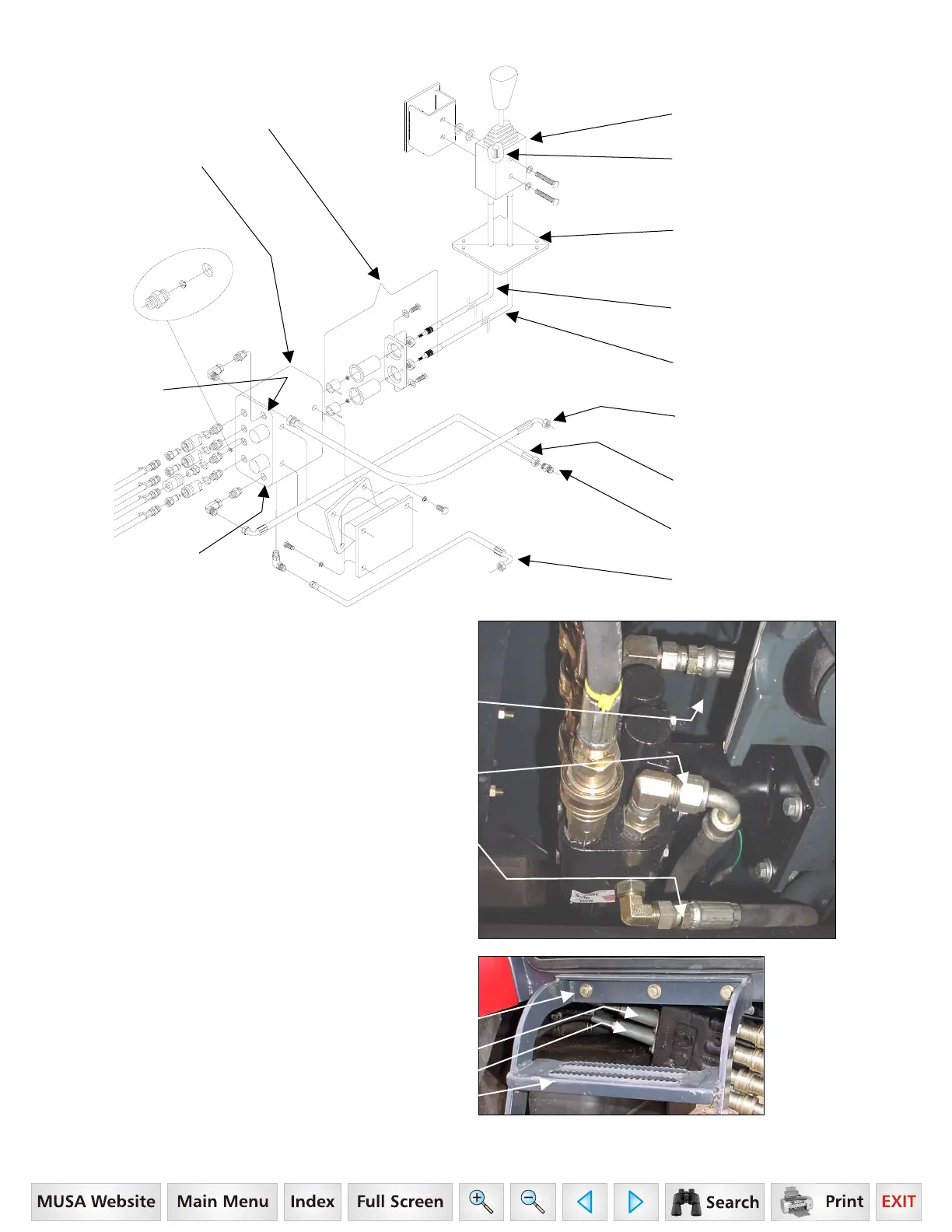

3.3.21. Route 17" pressure hose to fittings in pressure
port of valve.
17" Pressure Hose
3.3.22. Route 25" return hose to fittings in return port of
valve.
25" Return Hose
3.3.23. Route 60" power beyond hose to fitting in power
beyond port of valve.
60" Power Beyond Hose
3.3.24. Remove all twists from hoses then tighten
hydraulic connections.
3.3.25. Check that all hydraulic connections have been
tightened.
3.3.26. Reinstall RH cab step reusing cab step
hardware.
Cab Step Hardware
Raise and Lower (Lift) Cable
Dump and Rollback (Tilt) Cable
RH Cab Step
Single Lever
Controller
Solid Post – located
front and center of
Tractor
Triangle Floorboard
Plates
Raise and Lower
(Lift) Cable Frontward
Dump and Rollback
(Tilt) Cable Backward
Pressure "IN" Line
17" hose (opposite of
power beyond port)
Return "OUT" Line
25" hose
Return "OUT" Line
Fitting
Power Beyond Line
60" hose
Cable Adapter Group
Valve
Pressure
"IN" Port
Return
"OUT" Port
To Next Page
