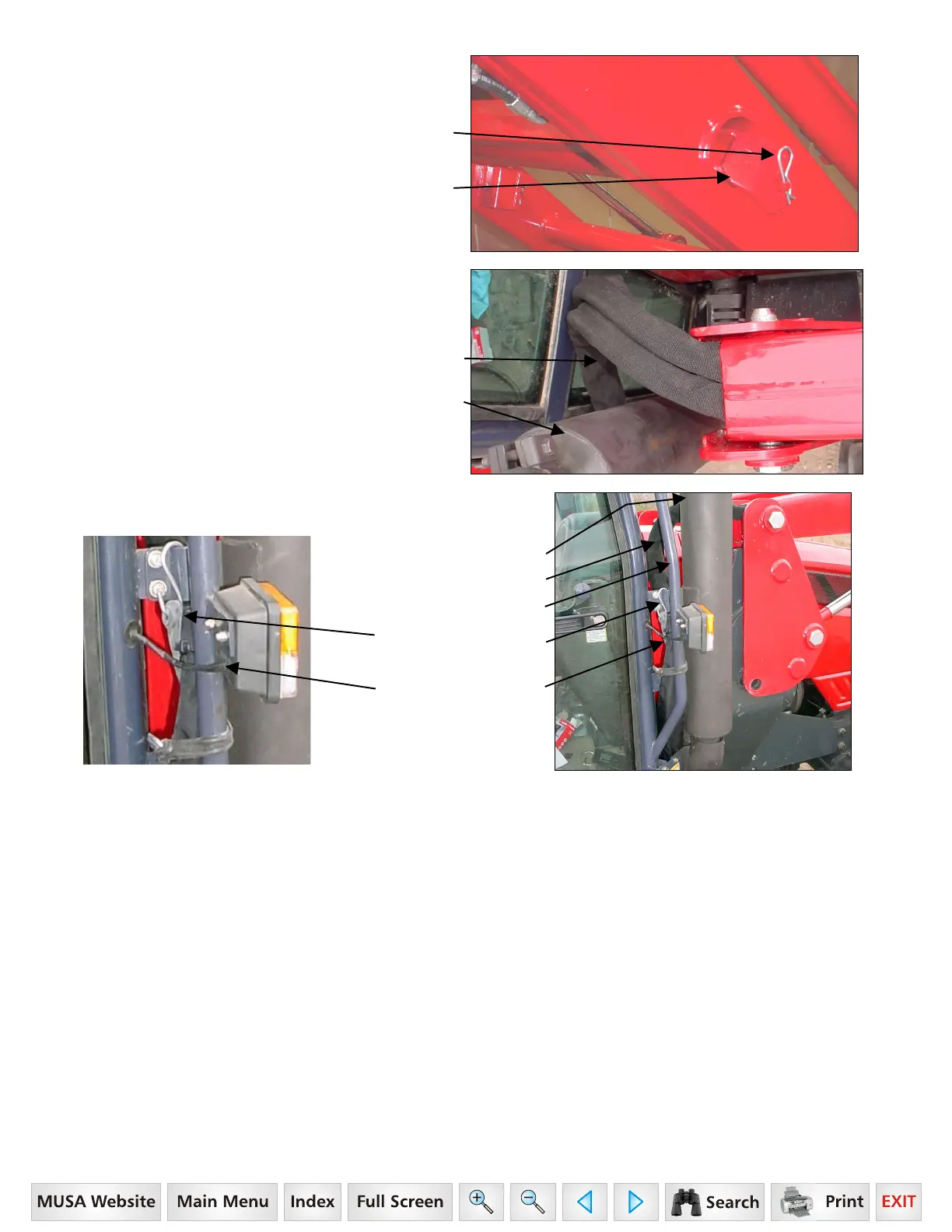

8.1.13. Return parking stands to storage positions in
the boom crosstubes. Secure using hairpin cotters.
Hairpin Cotter
in Storage Position.
Parking Stand
in Storage Position.
8.1.14. Remove rubber strap from RH cab hand rail.
8.1.15. Route hoses away from tractor exhaust.
Loader Hoses
(route toward center of tractor)
Tractor Exhaust
8.1.16. Route hoses to RH side of tractor cab as shown. Secure
hoses to cab hand rail using rubber strap.
Tractor Exhaust
Loader Hoses
RH Tractor Cab Hand Rail
Rubber Strap secured
to Cab Hand Rail
Rubber Strap wrapped
around Tractor Hoses
IMPORTANT: To avoid hydraulic hose damage, be alert and make sure hoses do not catch on tractor
and/or loader during mounting or dismounting.
