MP2600D, MP2600C & MP1700E Series Installation Manual V1.4
Maipu Confidential & Proprietary Information Page 14 of 52
ASYN 0-7 (8 async interface) (MP2600D supports)
LINK - asynchronous interface link status indicator
ACT - asynchronous interface data indicator

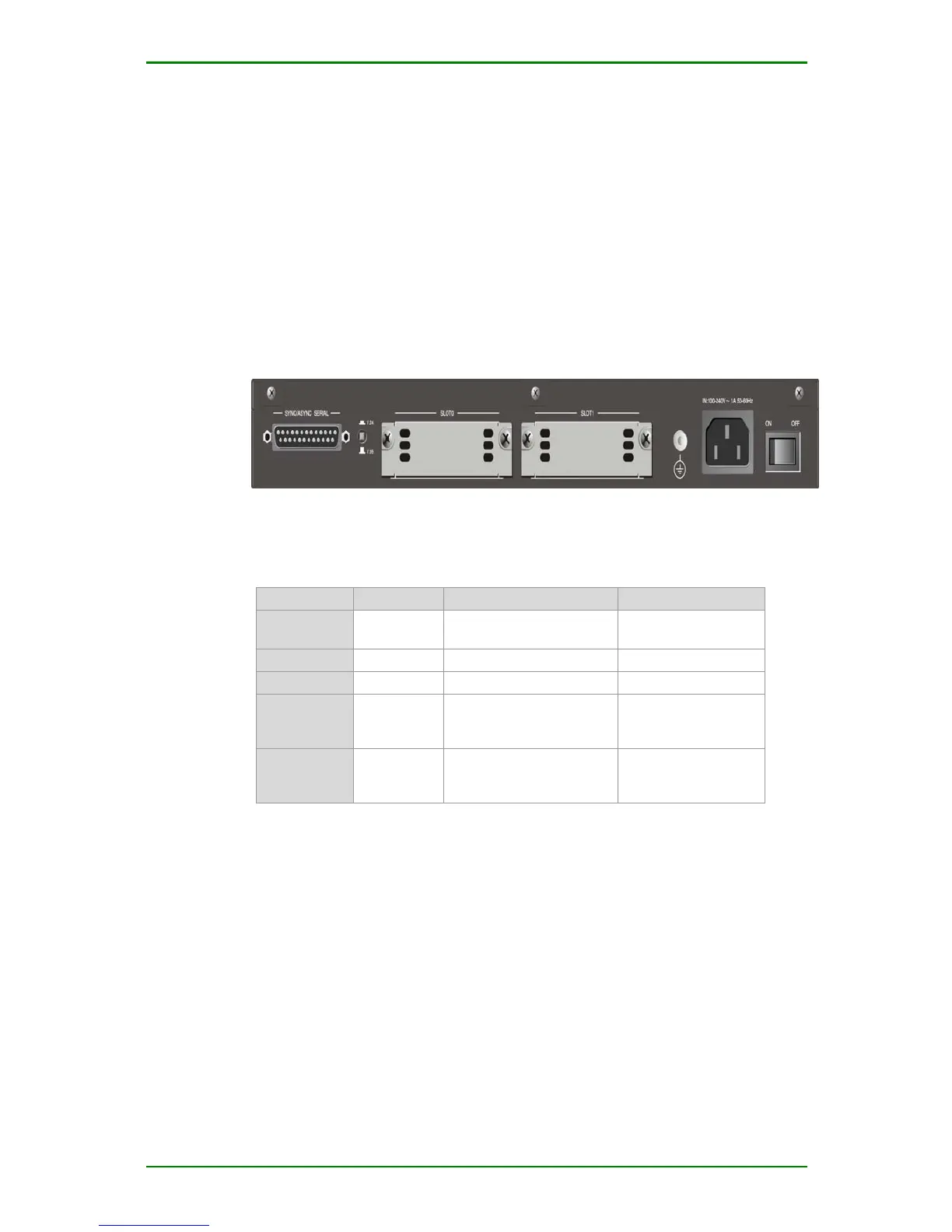

MP2600D, MP2600C &
MP1700E Back Panel
MP2600D, MP2600C & MP1700E back panel interface configuration
MP2600D, MP2600C & MP1700E back panel interface:
Interface Form Description Application
ON/OFF Power supply switch,
right is OFF; left is ON
INPUT AC 100-240V 1A input
SLOT1 Bus slot VOP/VOS module
SLOT0 Decided by
interface
module
High-speed serial, bus
slot
MIM module
S/A DB25 pin High-speed serial High-speed fixed
sync/async
interface
SLOT1 is voice card module slot for VOP/VOS series module; SLOT0 is MIM
slot, adopting modularization design, and its function can be realized
according to different interface card and relevant software modules.
