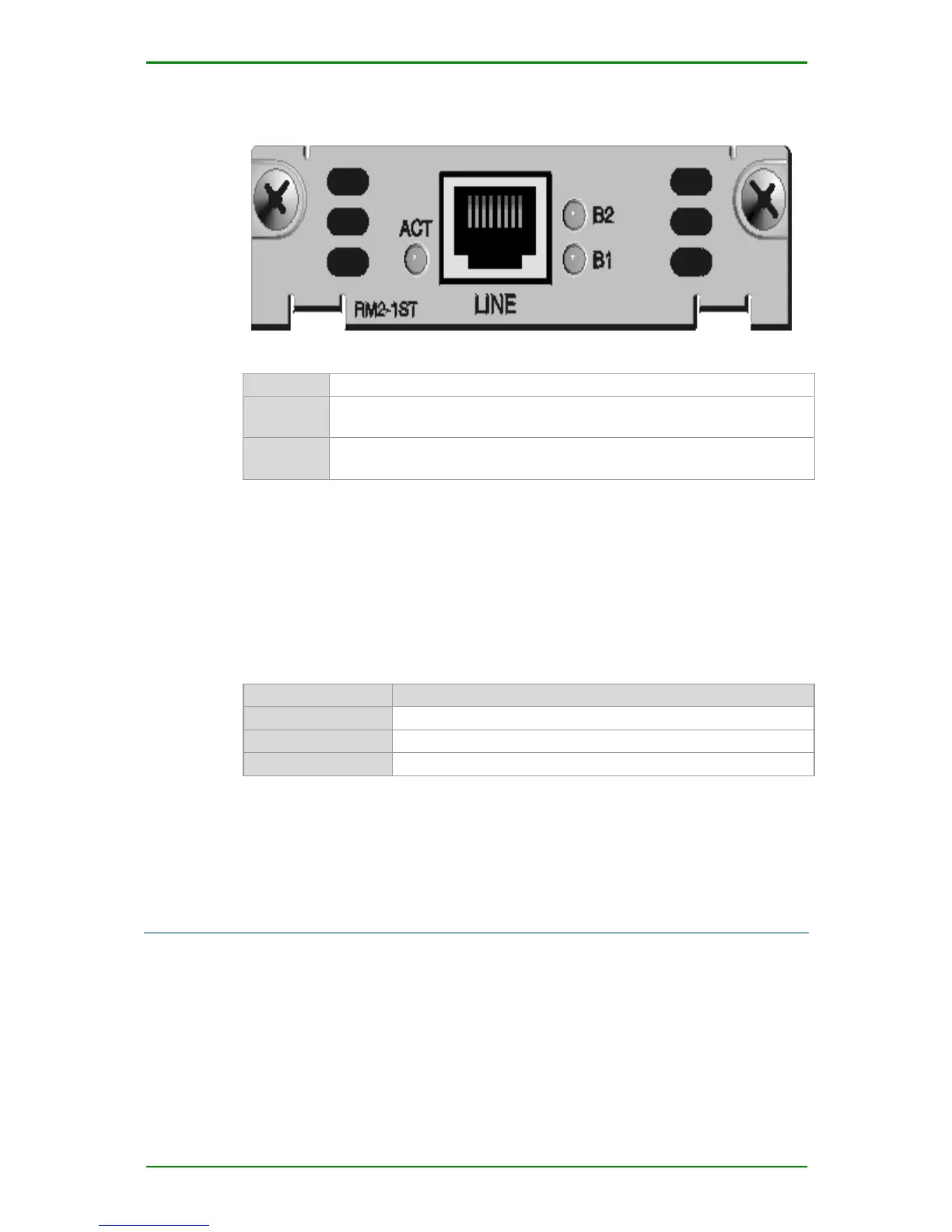

1-port ISDN S/T module (1ST) indicator:
ACT Active indicator, and it is on when it operates normally.
B1 B1 channel indicator. The indicator on when using
Channel B1, B1=64K or B1+B2=128K
B2 B2 channel indicator. The indicator on when using
Channel B2, B2=64K or B1+B2=128K
1ST Module Connected Cable
1ST cable is RJ45 straight connected Ethernet cable.
1ST Module Interface Attributes
1-port ISDN S/T module (1
ST
) interface attributes:
Attributes Description
Tie-in RJ45
Number 1
Supported protocol PPP
