1CE1 Interface Module Attributes
1-port channelized E1 (1CE1) attributes:
Attributes Description
Interface BNC
Interface number 1 group
Interface standard G.703
Supported protocol PPP
X.25
HDLC
FR
Non-channelized E1 Series
1-port Non-channelized E1 (1E1)
1port non-channelized E1 module provides a data transmission port with
2.048Mbit/s bandwidth. E1 is same as CE1, it can be divided into 32
timeslots, and timeslot 0 of E1 can be used to transmit data in unframed
mode, to realize 2M transparent transmission.

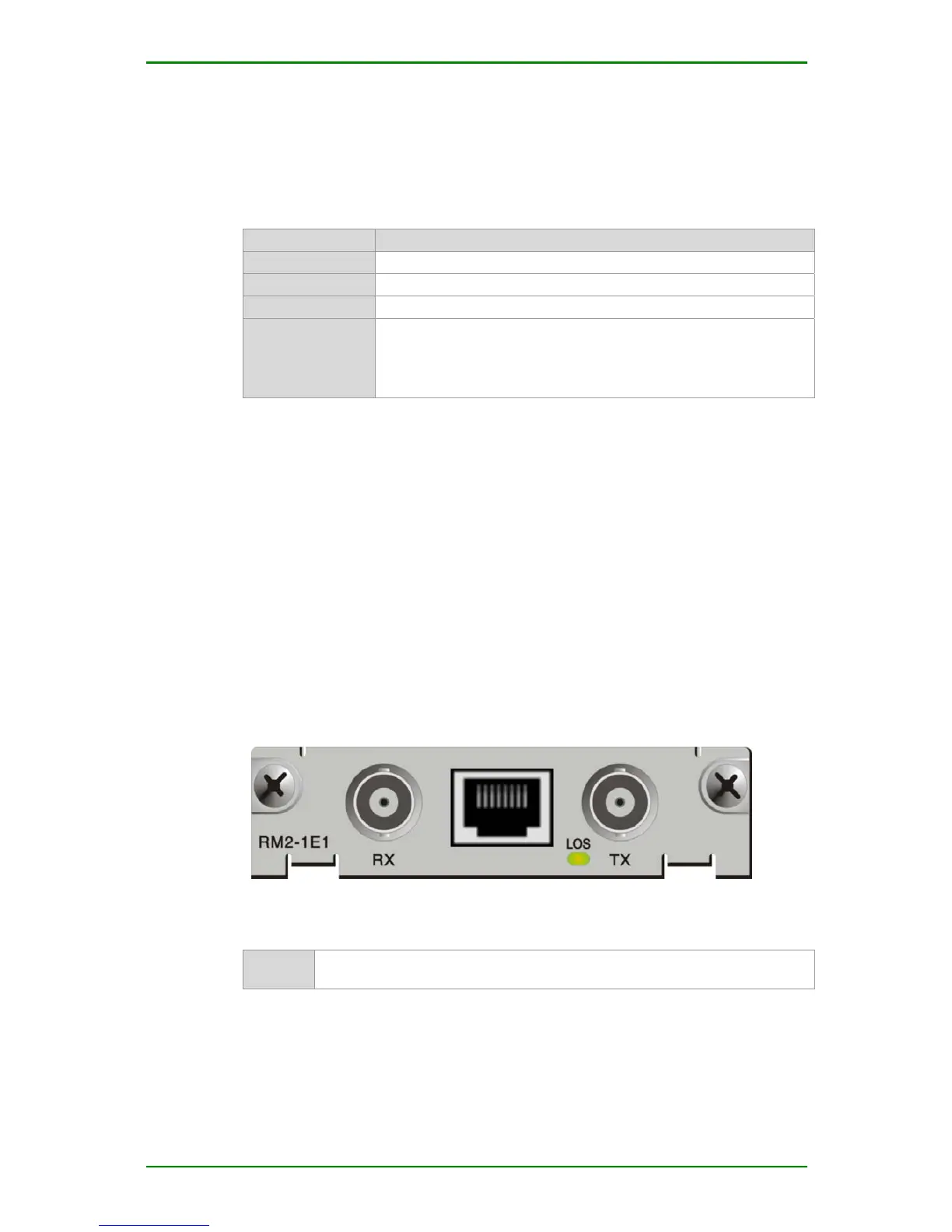

1E1 Interface Module & Indicator
1E1 interface module:
1-port non-channelized E1（1E1）
1-port non-channelized E1（1E1）indicator:
LOS On: transparent 2M transmission; on: non-transparent and cannot
check frame synch signal; off: after synch.
1E1 Interface Connected Cable
1E1 and BNC pin coaxial cable and RJ45-RJ45 straight connected twisted-
pair cable.
