MP2600D, MP2600C & MP1700E Series Installation Manual V1.4
Maipu Confidential & Proprietary Information Page 51 of 52

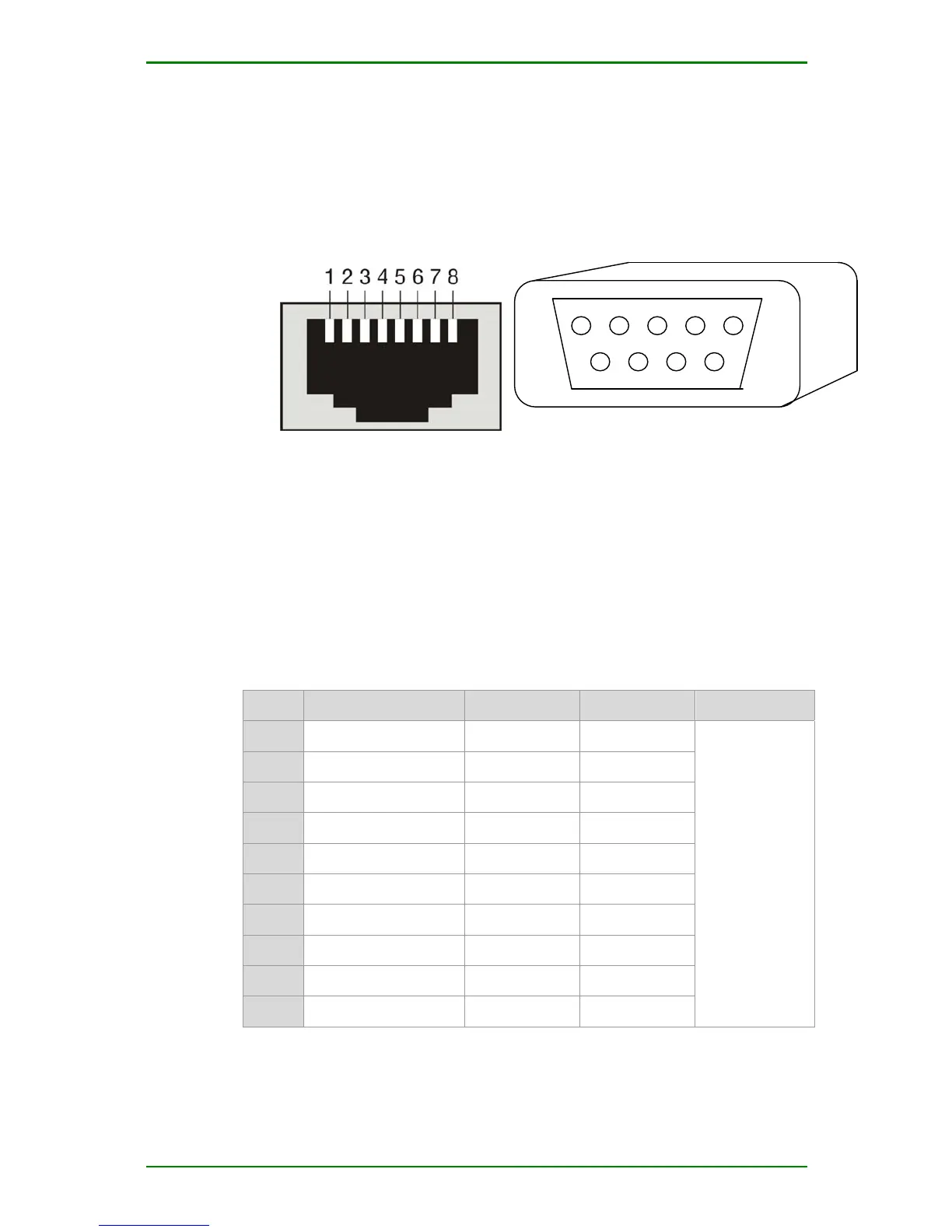

Console Port Cable
MP2600D/MP2600C/MP1700E router console port cable is connected with . One
side RJ45 plug and the other is DB9 female.
RJ45 jack standard DB9 interface
CONSOLE PORT CABLE PIN CONFIGURATION
RJ45 Signal Direction DB9 Length
1 CTS —> 8 3m
2 DSR —> 6
3 RXD —> 2
4 GND --- 5
5 --- --- ---
6 TXD <— 3
7 DTR <— 4
8 RTS <— 7
--- --- 1
--- --- 9
5 4 3 2 1
9 8 7 6
