1SAE Interface Module

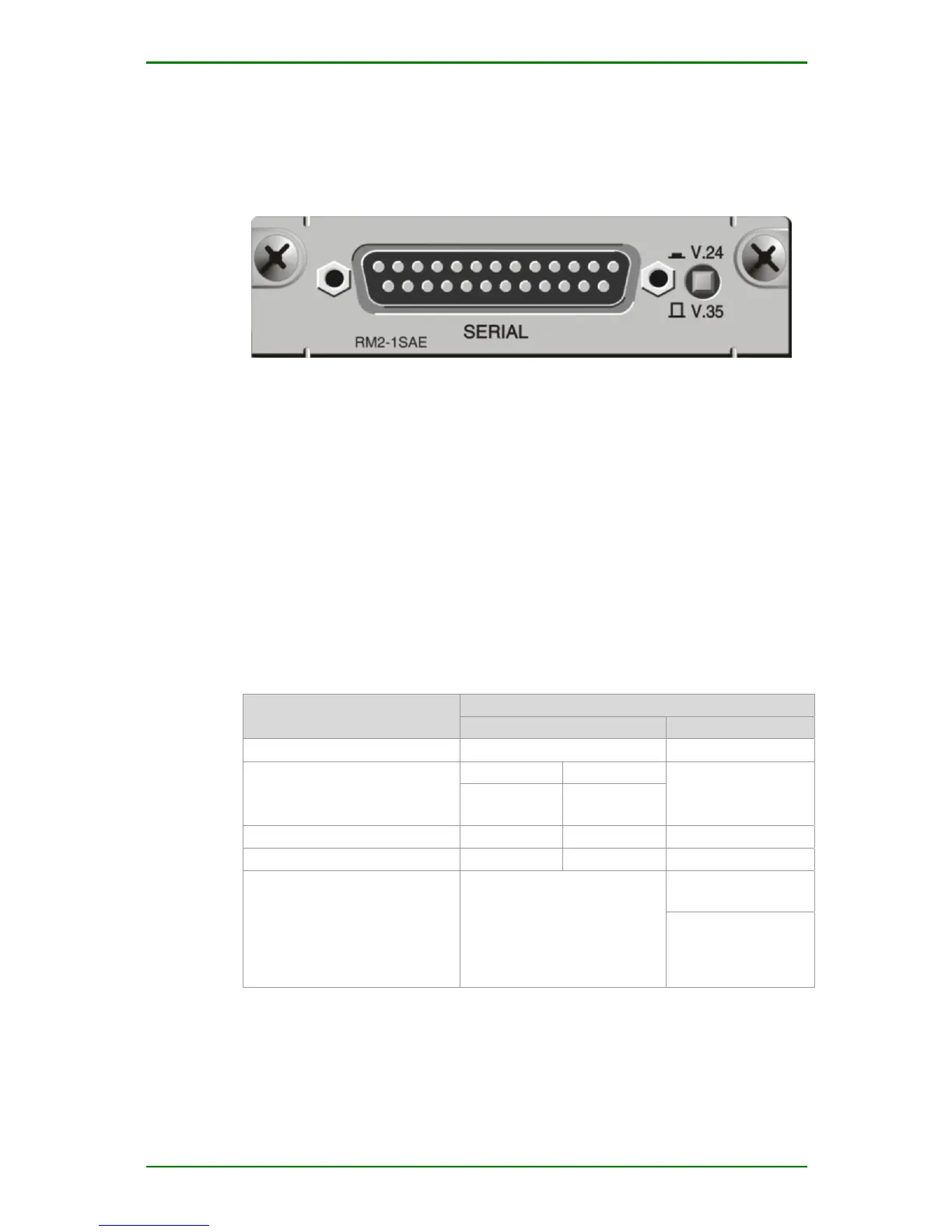

1-port high-speed V.24/V.35 serial module（1SAE）
1SAE interface module connected cable
1SAE module interface cable is V35 DTE cable and V24 connected DTE
cable.
1SAE Interface Attributes
1SAE module interface attributes:
1-port high-speed V.24/V.35 serial module (1SAE) attributes:
Attributes Description
Sync Async
Tie-in DB25-DB25 DB25-DB25
Interface standard and
working mode
V.24 V.35 EIA/TIA-232
DTE
DCE
DTE
DCE
Minimum baud rate (bps) 1200 1200 300
Maximum baud rate (bps) 128K 8M 115.2K
Supported protocols &
services
X25
HDLC
PPP
SLIP
FR
LAPB
Dialup
Backup
HDLC
PPP
SLIP
