Base-band MODEM (M128)
Series
1-port 128K Base-band MODEM (1M128)
1M128 Interface Module, Indicator & DIP
Switch

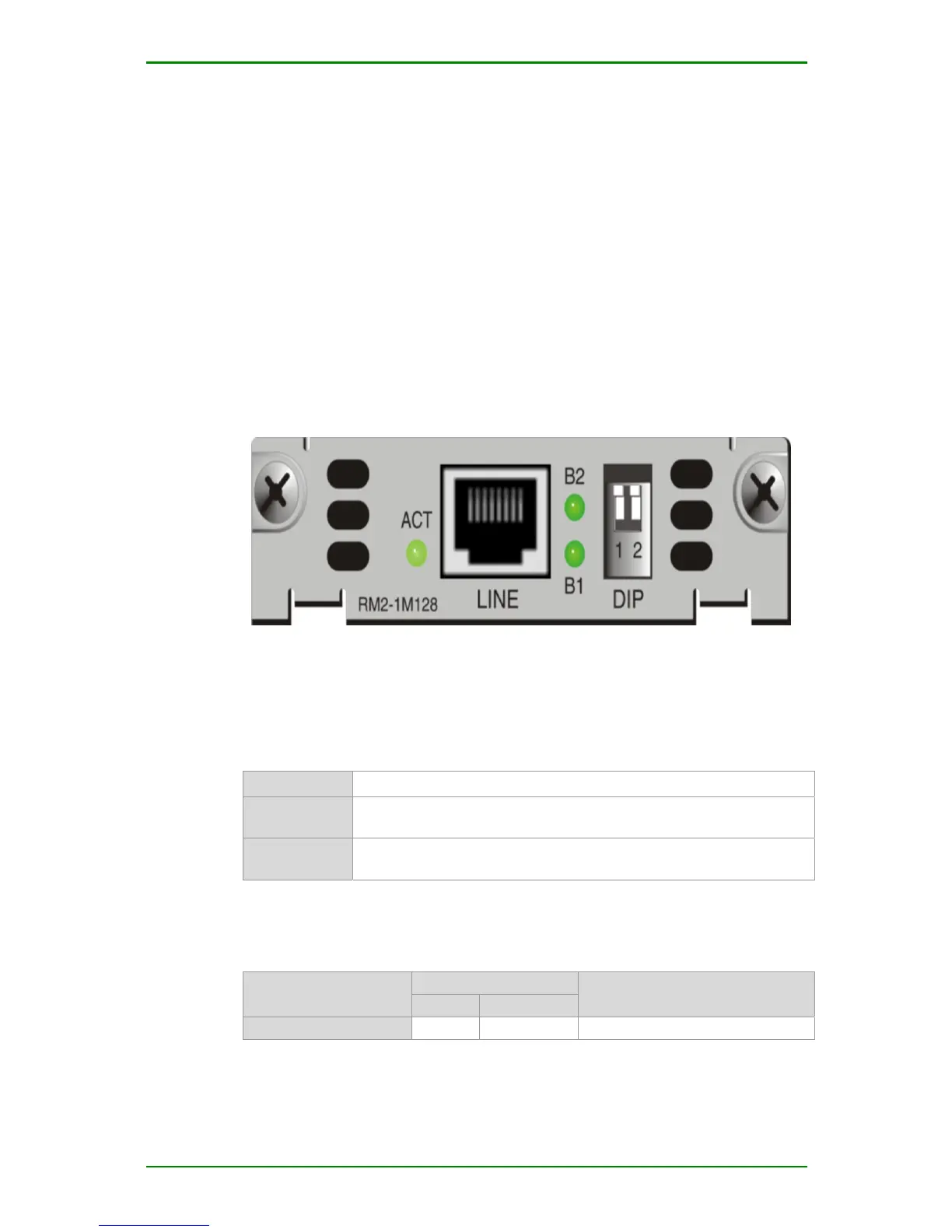

1M128 interface module:
1-port 128K baseband MODEM (1M128)
Indicator description:
1-port 128K base-band MODEM (1M128) indicator:
ACT
On: Link established.
B1
B1 channel indicator
LED on: When using channel B1, and rate is 64K
B2
B2 channel indicator
LED on: When using channel B2, and the rate is 128K
DIP switch:
1-port 128K baseband MODEM (1M128) DIP switch:
Mode DIP switch Description
1 2
Loopback ON Reserved
