MP2600D, MP2600C & MP1700E Series Installation Manual V1.4
Maipu Confidential & Proprietary Information Page 27 of 52

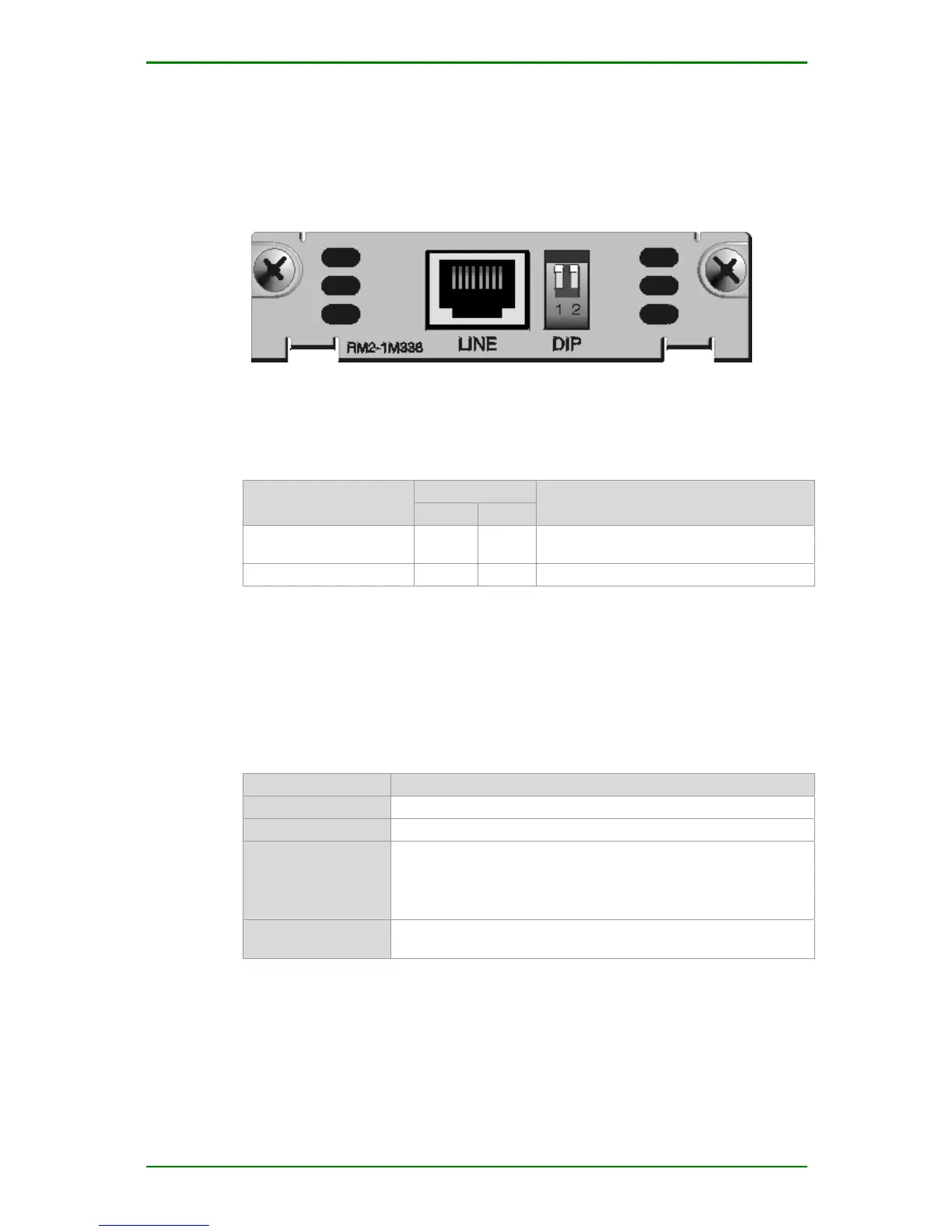

1M336 Interface Module & DIP Switch
1M336 interface module:
1-port 33.6K frequency-band MODEM (1M336)
DIP switch:
1-port 33.6K frequency-band MODEM (1M336) DIP switch:
Mode DIP switch Description
1 2
Frequency-band
MODEM mode
OFF OFF LINE is used as inbuilt frequency-band
MODEM interface.
Console port mode ON OFF LINE is used as CONSOLE port.
1M336 Interface Module Connected Cable
1M336 module connected cable is RJ45 (4, 5 signal line) or RJ11line.
1M336 Module Interface Attributes
1-port 33.6K frequency-band MODEM (1M336) interface:
Attributes Description
Tie-in RJ45
Interface number 1
Supported link
protocol
PPP
FR
X.25
HDLC
Supported network
protocol
IP
