Hardware Installation
Complete machine installation according to the details, and make sure
the power supply switch is OFF
Connect one side of AC power supply cable to router power supply, and
another side to power supply jack
Configure the router through console port after first power on
Insert one side of configuration cable to console port, and another side
to PC or terminal serial
Insert one side of Ethernet cable to LAN interface, and another side to
LAN
Connect sync/async communication cable to router WAN Interface
MP2600D/MP2600C/MP1700E sync/async interface can work in the
mode of V.24/V.35, and these two modes are completed by V.24/V.35
button
In V.24 mode, interface adopts standard RS232 cable connection
In V.35 mode, interface adopts special V.35DTE cable

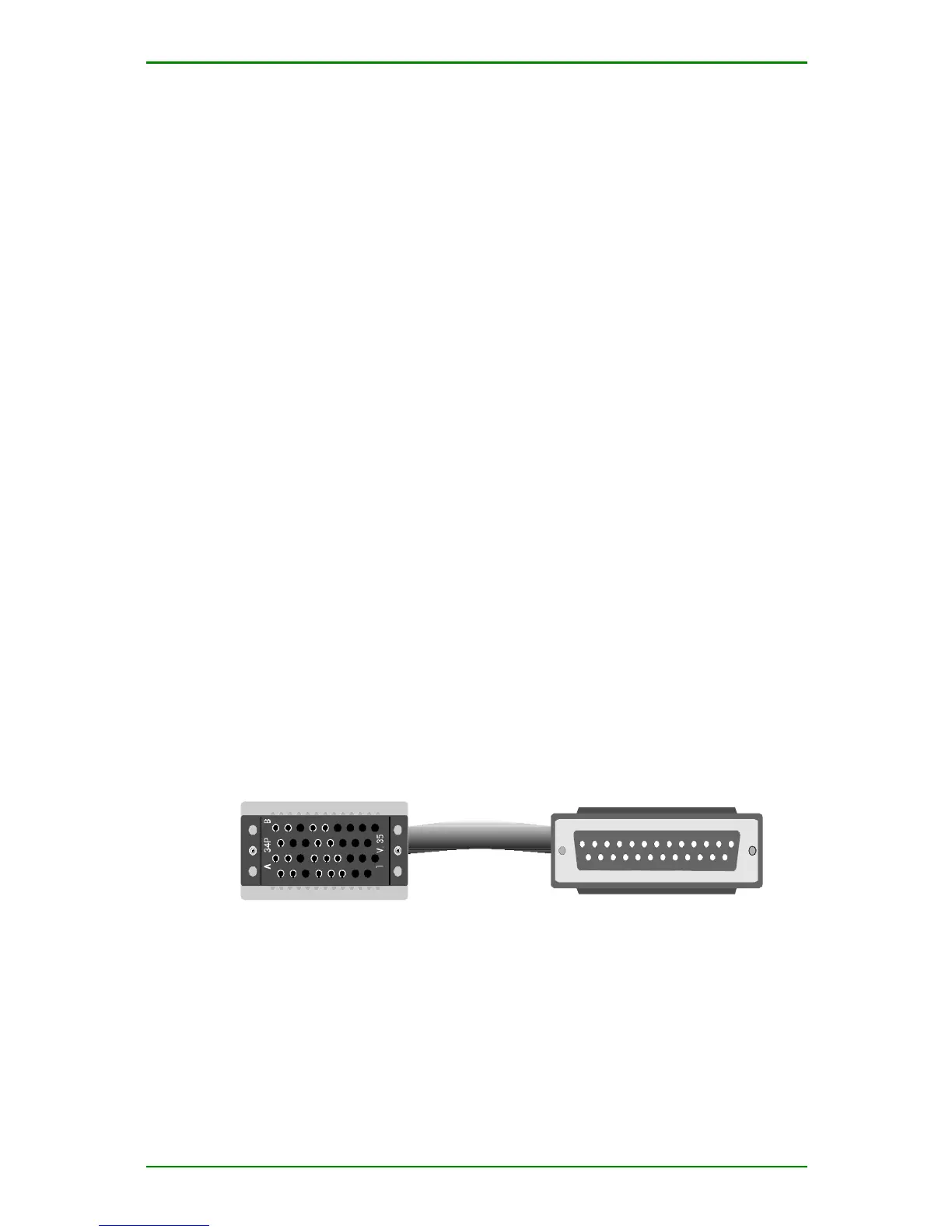

V.24/V.35 cable
