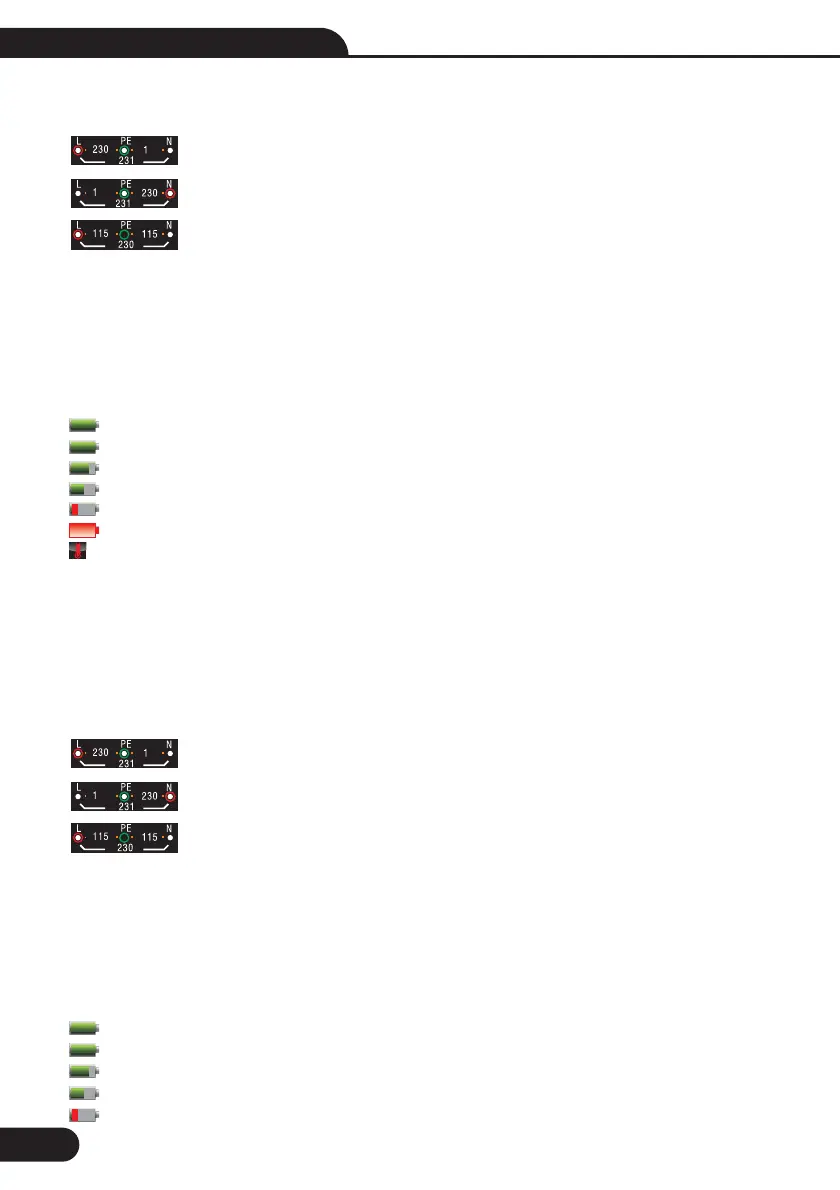

5.1.2-Displayed icons (symbols) and messages in LOOP/PFC function
:Indicates the correct input terminal connectivity . The user should connect the test leads
to the appropriate terminals.
:Indicates L connection is connected on the N input terminal and vice-versa
:Indicates no connection on the PE input terminal
If the wiring condition is other than normal, the Tester is limited on its measurements that can be performed.
• Will not detect two hot wires in a circuit.
• Will not detect a combination of defects.
• Will not detect reversal of grounded and grounding conductors.
:Indicates the battery status.
:100%
:80%
:50%
:20%
:Low Battery
:Indicates high temperature and therefore cannot make any measurements
Measuring : Function in use - measurement being carried out
RCD Trip: During the measurement, the RCD has tripped therefore no test result obtained
-Noise-: Appears during the No Trip Loop Measurement, and indicates that the displayed value may not be
accurate due to “mains” interference - test to be repeated
5.1.3-Displayed icons (symbols) and messages in RCD function
: Indicates the correct input terminal connectivity . The user should connect the test leads
to the appropriate terminals.
: Indicates L connection is connected on the N input terminal and vice-versa
: Indicates no connection on the PE input terminal
If the wiring condition is other than normal, the Tester is limited on its measurements that can be performed.
• Will not detect two hot wires in a circuit.
• Will not detect a combination of defects.
• Will not detect reversal of grounded and grounding conductors.
: Indicates the battery status.
: 100%
: 80%
: 50%
: 20%
Notes:
Message:
Notes:
-Noise-:
