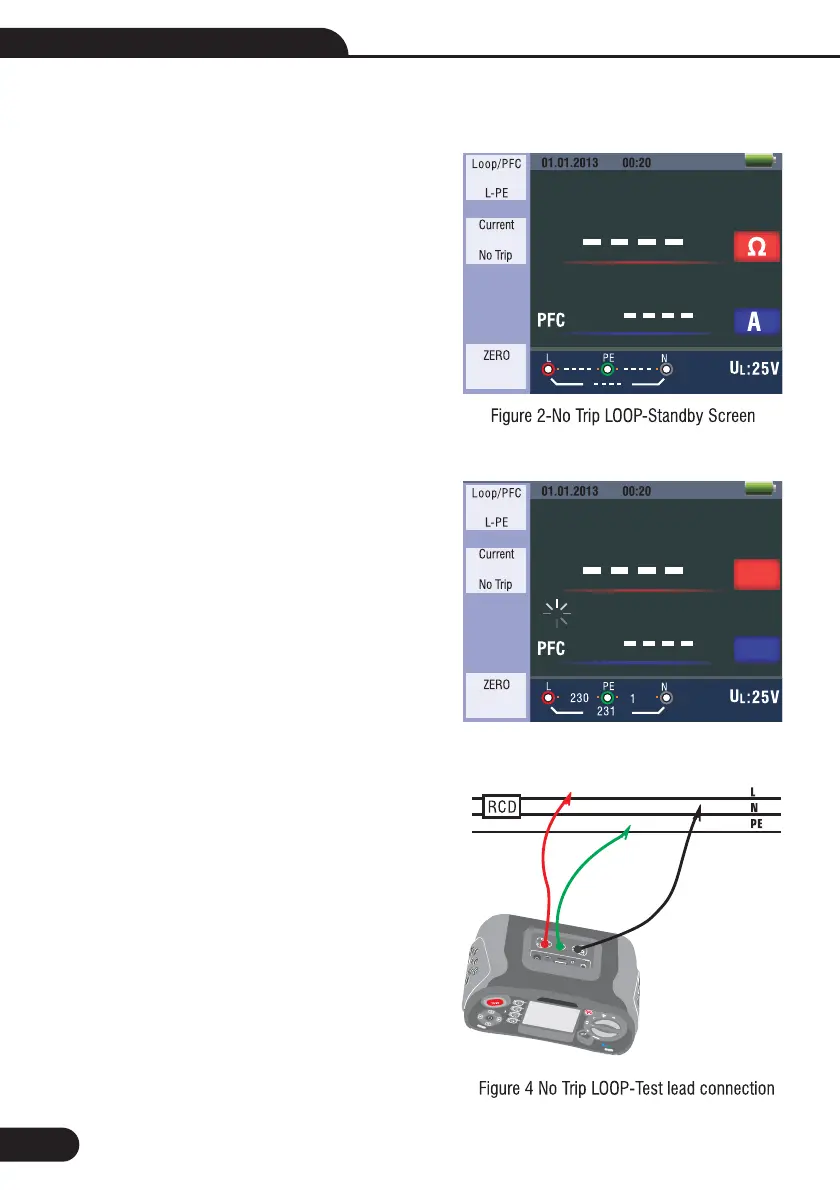

5.2.1-Using the No Trip LOOP Measurement to be selected where the circuit is protected by an RCD whose
rating is 30mA or above
Turn the rotary switch to the LOOP/PFC position
Connect the test leads as Figure Figure
If voltage of the L- PE on the lower left appears, the
unit is ready to TEST
Press the TEST button when ready
If NOISE appears during the No Trip Loop
Measurement, the displayed value may not be
accurate due to “mains” interference and the
test should be repeated
When carrying out the test from a 13A socket
the points of contact are automatically selected by
the plug top connection
1-
2- 4
3-
4-
5-
1
-
-
-
-
3
3
3
Figure 3-No Trip LOOP
Ω
A
16
Multifunction Tester User Manual
