Makita LS1017L Technical Information

P 8/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -2. Starter (cont.)

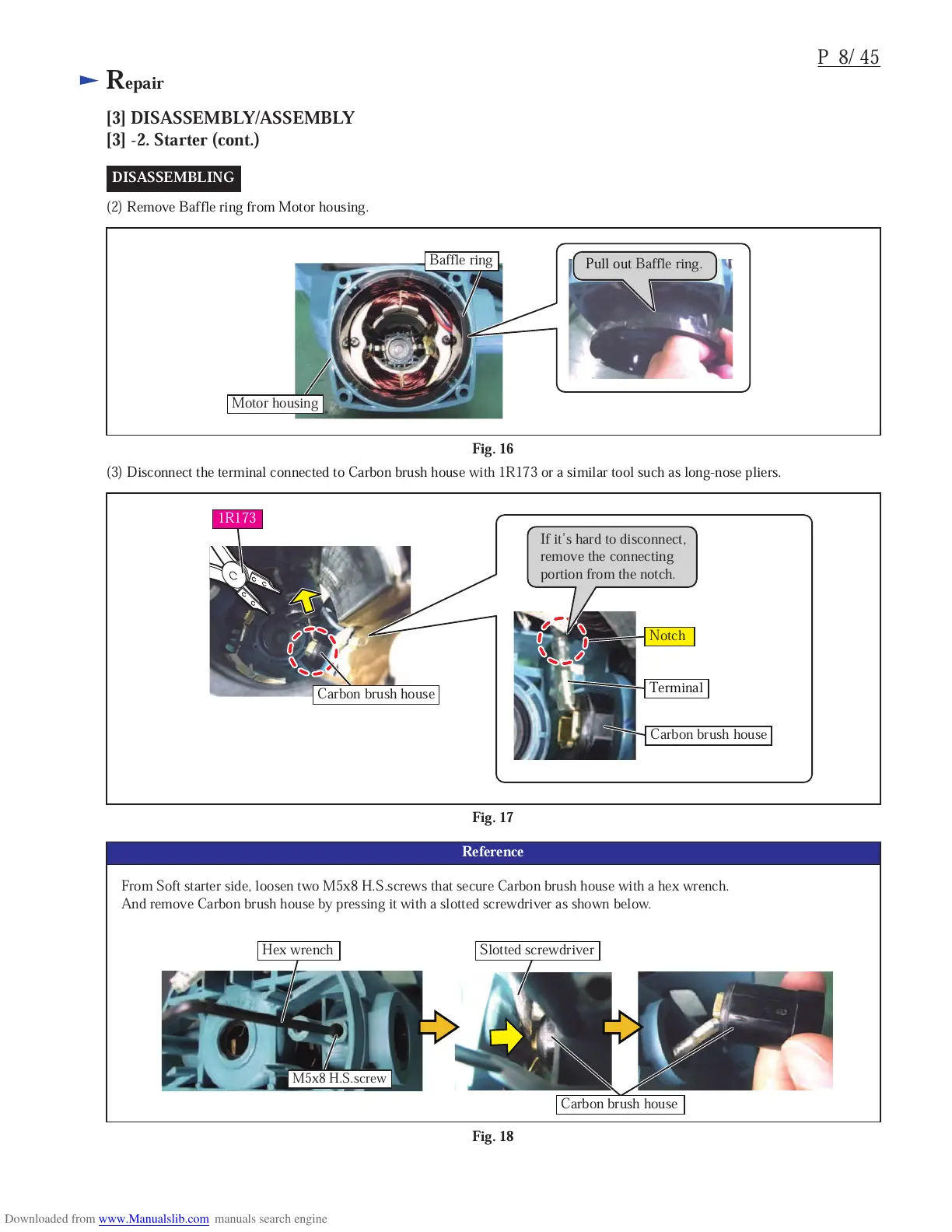

Fig. 16
DISASSEMBLING
(2) Remove Baffle ring from Motor housing.
Fig. 17
Fig. 18
(3) Disconnect the terminal connected to Carbon brush house with 1R173 or a similar tool such as long-nose pliers.
From Soft starter side, loosen two M5x8 H.S.screws that secure Carbon brush house with a hex wrench.
And remove Carbon brush house by pressing it with a slotted screwdriver as shown below.
Terminal
Carbon brush house
Carbon brush house
Baffle ring
1R173
Pull out Baffle ring.
Motor housing
Notch
Reference
Carbon brush house
Slotted screwdriver
M5x8 H.S.screw
Hex wrench
If it’s hard to disconnect,
remove the connecting
portion from the notch.

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
