Makita LS1018-R Technical Information

P 10/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -2. Starter (cont.)

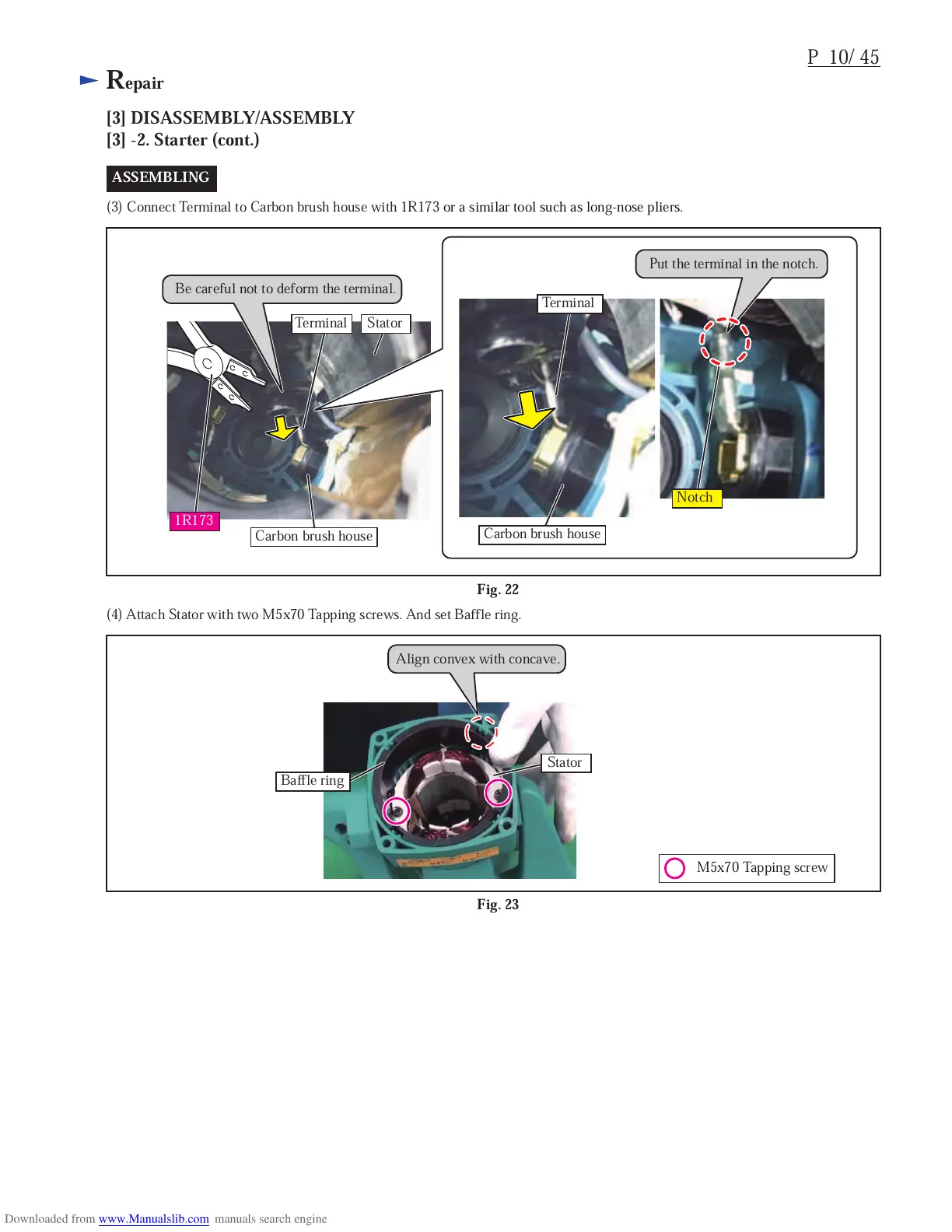

Fig. 22
(3) Connect Terminal to Carbon brush house with 1R173 or a similar tool such as long-nose pliers.
Fig. 23
(4) Attach Stator with two M5x70 Tapping screws. And set Baffle ring.
StatorTerminal
Be careful not to deform the terminal.
Align convex with concave.
ASSEMBLING
Carbon brush house
Carbon brush house
Stator
Baffle ring
Terminal
Put the terminal in the notch.
M5x70 Tapping screw
1R173
Notch
