Makita LS1018-R Technical Information

P 18/ 45
Repair

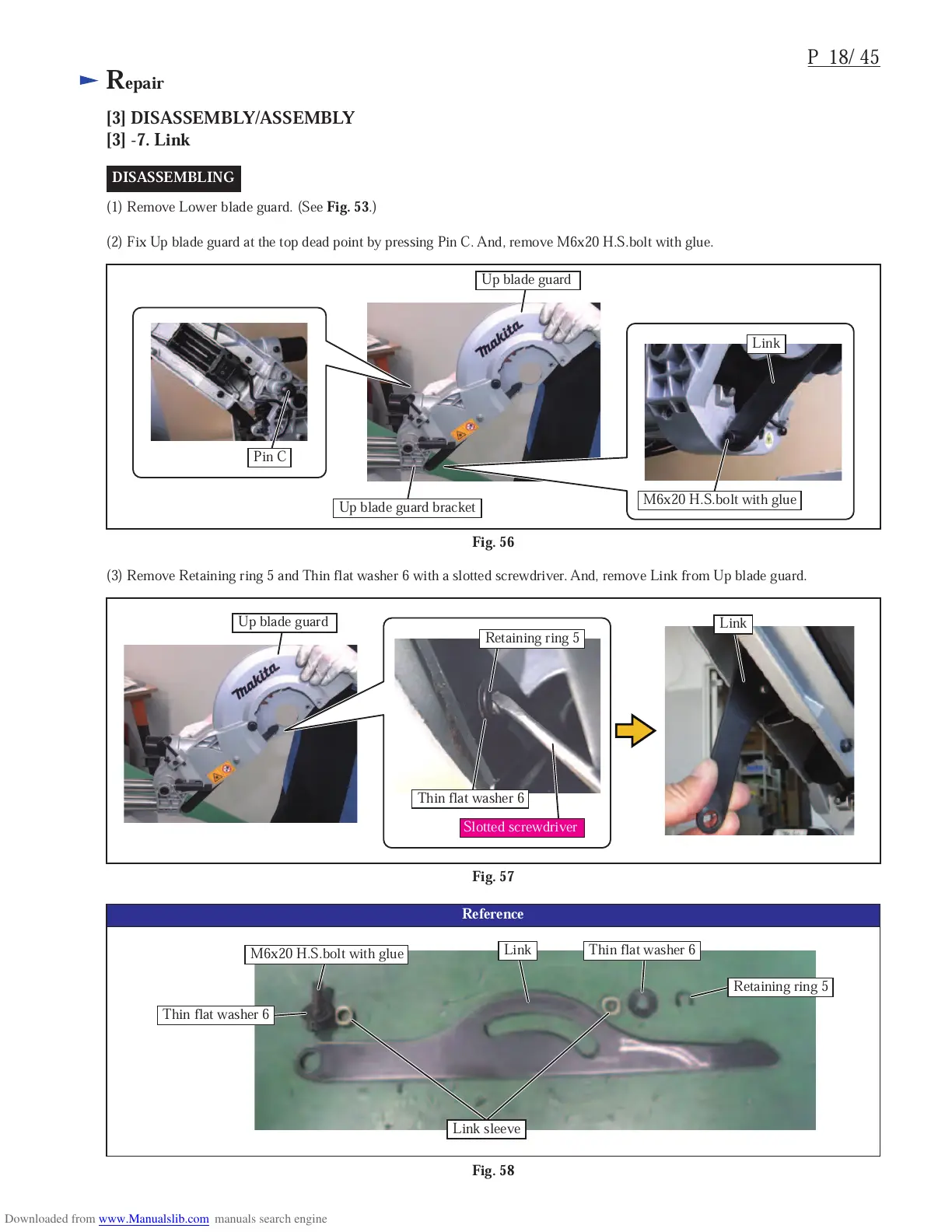

[3] DISASSEMBLY/ASSEMBLY
[3] -7. Link
Fig. 56
(1) Remove Lower blade guard. (See Fig. 53 .)
(2) Fix Up blade guard at the top dead point by pressing Pin C. And, remove M6x20 H.S.bolt with glue.
Fig. 57
(3) Remove Retaining ring 5 and Thin flat washer 6 with a slotted screwdriver. And, remove Link from Up blade guard.
DISASSEMBLING
Pin C
M6x20 H.S.bolt with glue
M6x20 H.S.bolt with glue
Up blade guard
Up blade guard
Up blade guard bracket
Link
Link
Link
Link sleeve
Fig. 58
Reference
Retaining ring 5
Retaining ring 5
Thin flat washer 6
Thin flat washer 6
Thin flat washer 6
Slotted screwdriver
