Repair

[3] DISASSEMBLY/ASSEMBLY

[3] -9. Support arm

If Sliding bar rear cover can not be removed easily,

tap it with a plastic hammer as shown below.

Note

Fig. 76

Fig. 77

Reference

DISASSEMBLING

Fig. 75

(2) Loosen Hex nut with Bevel locking handle and remove

Bevel locking handle.

(3) Loosen two M5x20 cross head screws and remove

Sliding bracket cover.

Fig. 79

Fig. 78

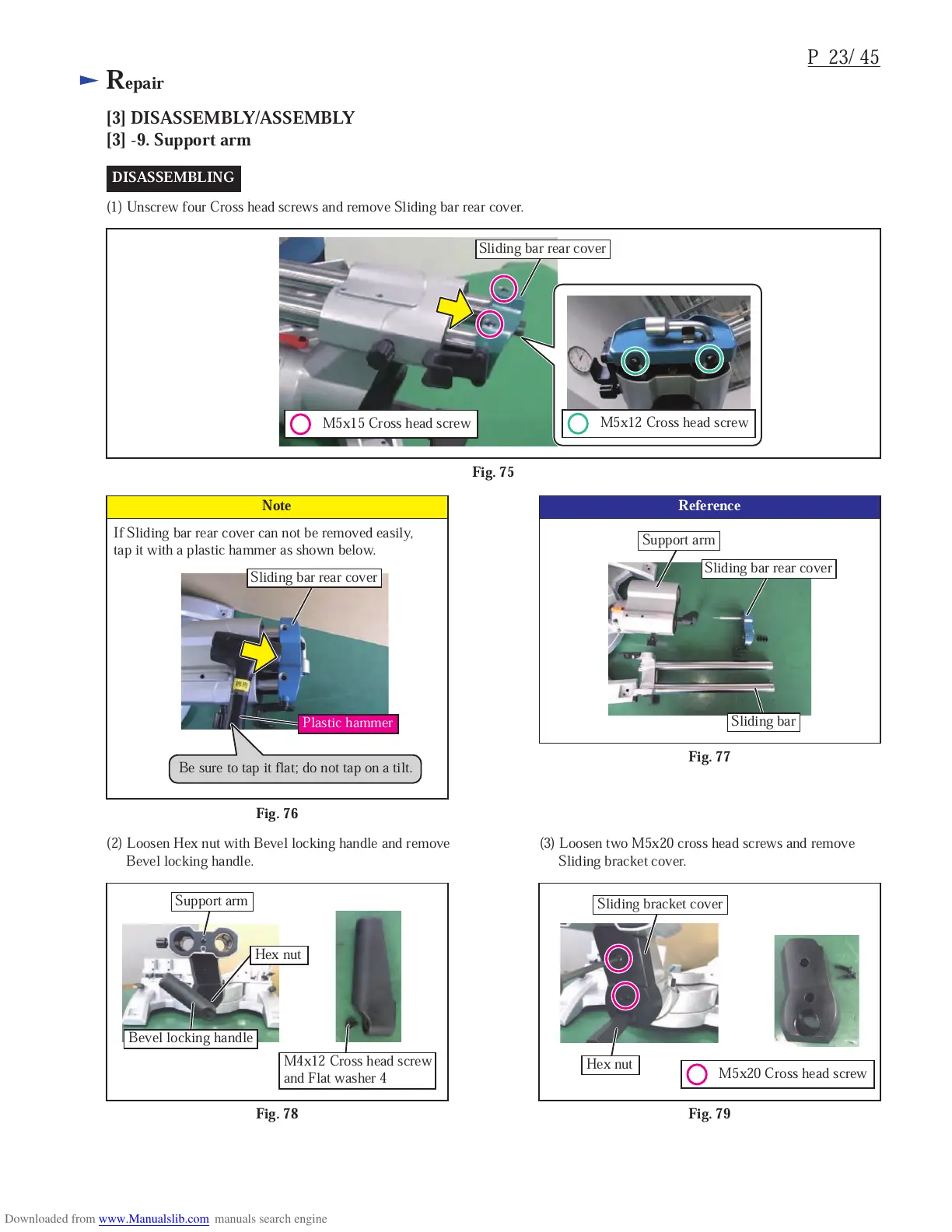

(1) Unscrew four Cross head screws and remove Sliding bar rear cover.

Bevel locking handle

Hex nut

Sliding bracket cover

Hex nut

Sliding bar rear cover

Support arm

Sliding bar rear cover

Be sure to tap it flat; do not tap on a tilt.

Sliding bar

Plastic hammer

M5x15 Cross head screw

M5x20 Cross head screw

M5x12 Cross head screw

M4x12 Cross head screw

and Flat washer 4
