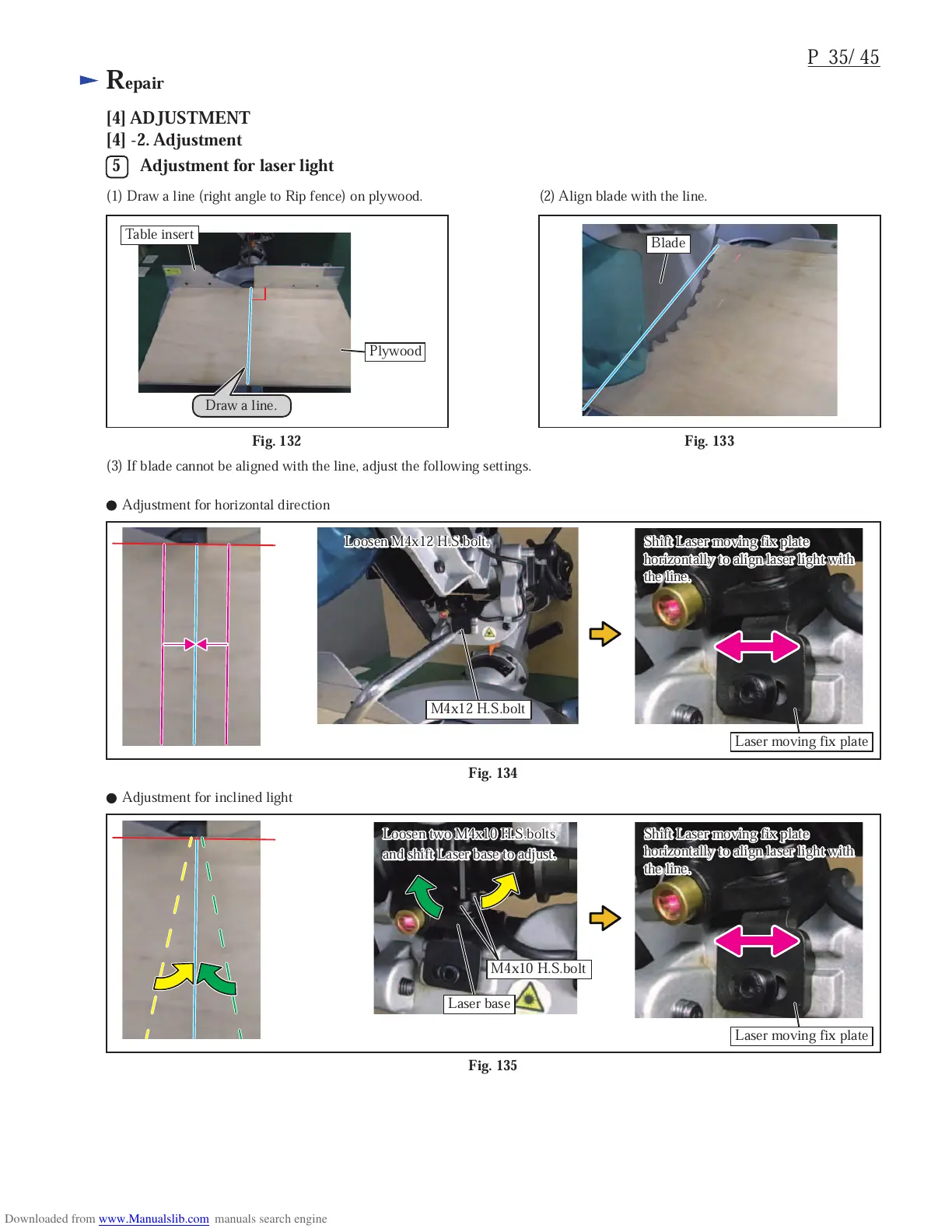

P 35/ 45
Repair
[4] ADJUSTMENT
[4] -2. Adjustment
(1) Draw a line (right angle to Rip fence) on plywood.
(3) If blade cannot be aligned with the line, adjust the following settings.
Adjustment for horizontal direction
Adjustment for inclined light
(2) Align blade with the line.
Fig. 132 Fig. 133
Fig. 134
Fig. 135
Adjustment for laser light
5
Plywood
Blade
Table insert
M4x12 H.S.bolt
Laser moving fix plate
Laser moving fix plate
Draw a line.
Shift Laser moving fix plate
horizontally to align laser light with
the line.
Shift Laser moving fix plate
horizontally to align laser light with
the line.
Shift Laser moving fix plate
horizontally to align laser light with
the line.
Shift Laser moving fix plate
horizontally to align laser light with
the line.
Loosen two M4x10 H.S.bolts
and shift Laser base to adjust.
Loosen two M4x10 H.S.bolts
and shift Laser base to adjust.
Loosen
M4x12 H.S.bolt.Loosen M4x12 H.S.bolt.
Laser base
M4x10 H.S.bolt
