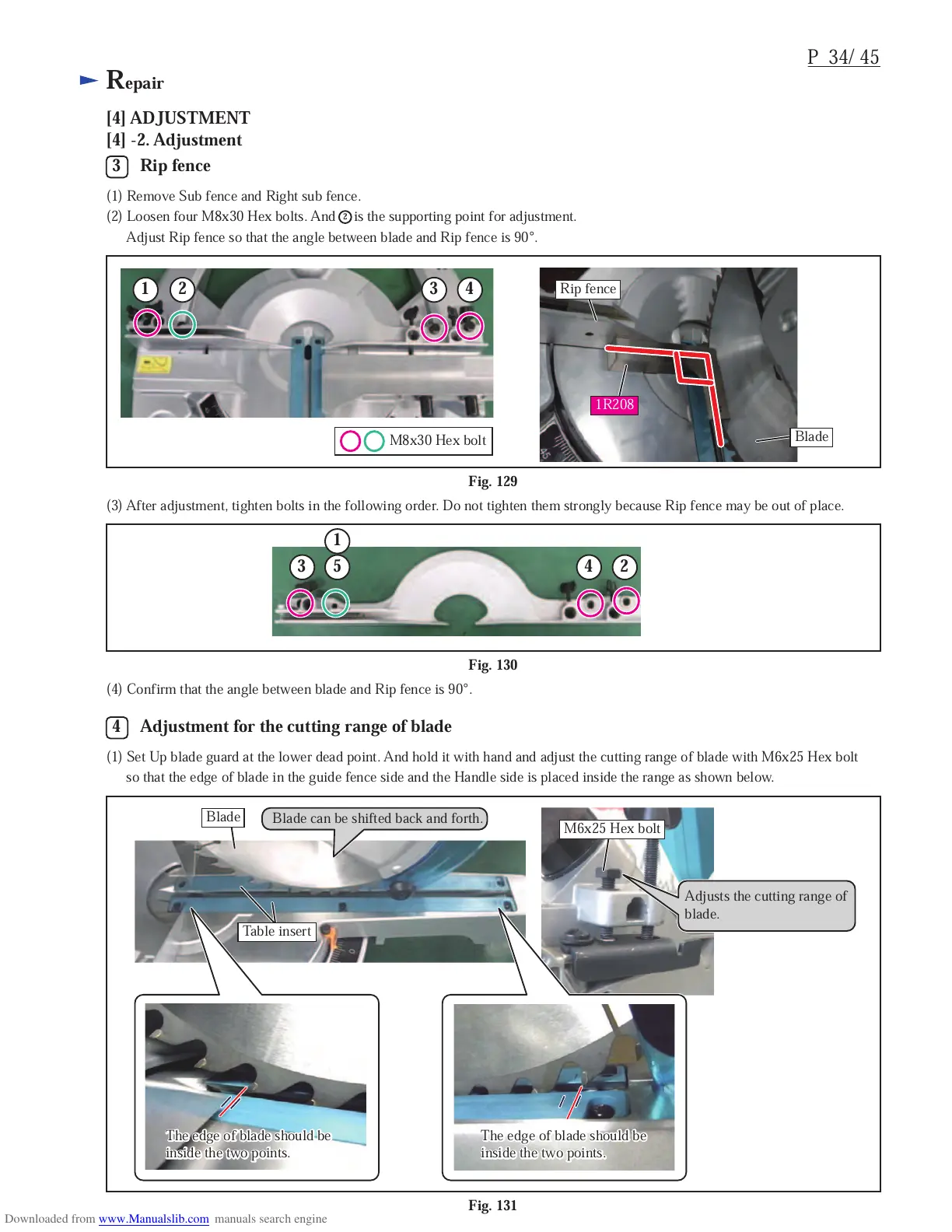

P 34/ 45
Repair
[4] ADJUSTMENT
[4] -2. Adjustment
(1) Remove Sub fence and Right sub fence.
(2) Loosen four M8x30 Hex bolts. And is the supporting point for adjustment.
Adjust Rip fence so that the angle between blade and Rip fence is 90°.
(1) Set Up blade guard at the lower dead point. And hold it with hand and adjust the cutting range of blade with M6x25 Hex bolt
so that the edge of blade in the guide fence side and the Handle side is placed inside the range as shown below.
(3) After adjustment, tighten bolts in the following order. Do not tighten them strongly because Rip fence may be out of place.
(4) Confirm that the angle between blade and Rip fence is 90°.
M8x30 Hex bolt
Blade can be shifted back and forth.
Adjusts the cutting range of
blade.
Fig. 129
Fig. 130
Fig. 131
Rip fence
3
Adjustment for the cutting range of blade
4
Blade
1R208
Rip fence
M6x25 Hex bolt
The edge of blade should be
inside the two points.
The edge of blade should be
inside the two points.
The edge of blade should be
inside the two points.
The edge of blade should be
inside the two points.
Table insert
Blade
1 2
2
3 4
1
23 45
