Makita LS1018-R Technical Information

P 28/ 45
Repair

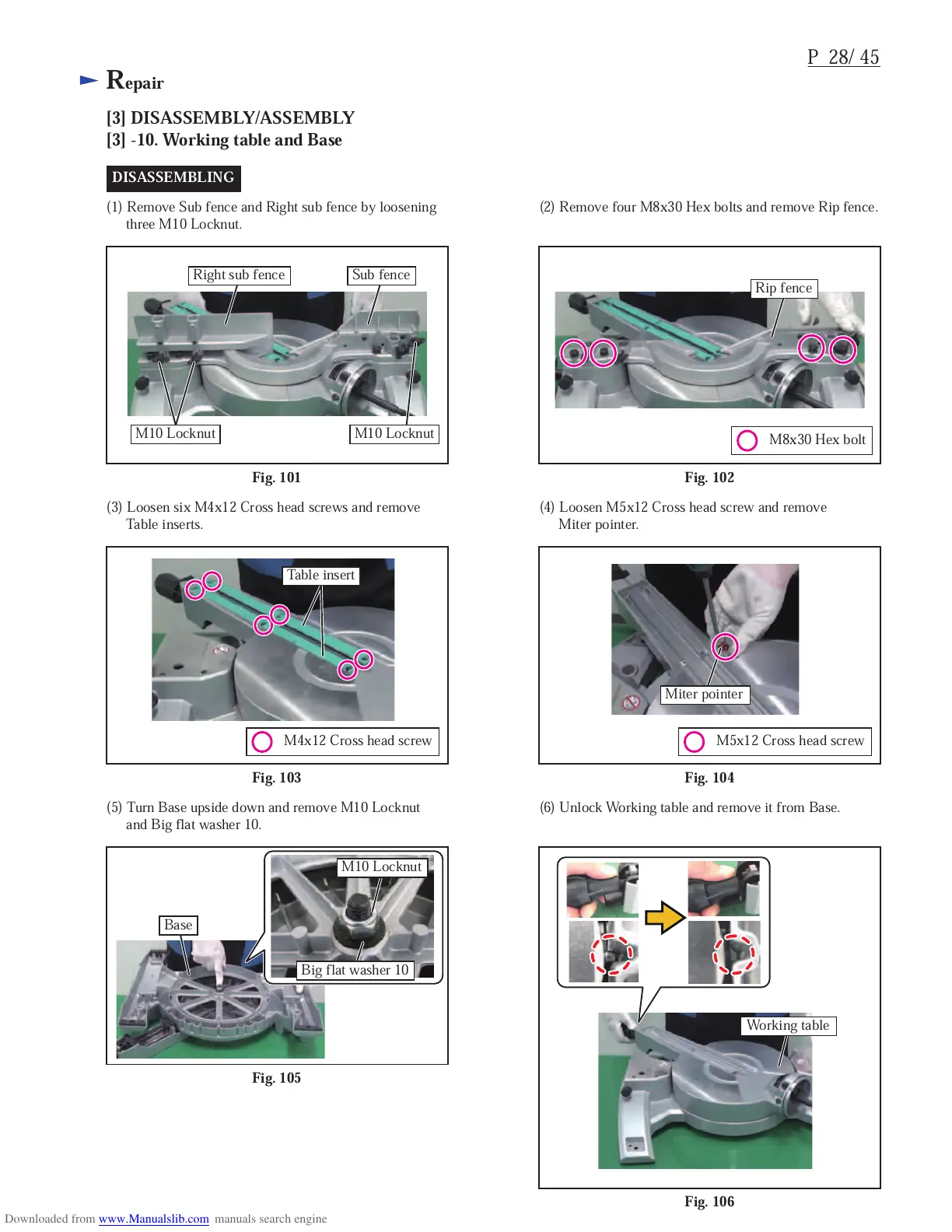

[3] DISASSEMBLY/ASSEMBLY
[3] -10. Working table and Base
DISASSEMBLING
(1) Remove Sub fence and Right sub fence by loosening
three M10 Locknut.
(2) Remove four M8x30 Hex bolts and remove Rip fence.
Fig. 102
Fig. 101
M8x30 Hex bolt
(3) Loosen six M4x12 Cross head screws and remove
Table inserts.
(4) Loosen M5x12 Cross head screw and remove
Miter pointer.
Fig. 104
Fig. 103
(5) Turn Base upside down and remove M10 Locknut
and Big flat washer 10.
(6) Unlock Working table and remove it from Base.
Fig. 106
Fig. 105
Right sub fence Sub fence
Rip fence
M10 Locknut M10 Locknut
M4x12 Cross head screw M5x12 Cross head screw
Table insert
Miter pointer
Big flat washer 10
M10 Locknut
Working table
Base
