Fig. 156

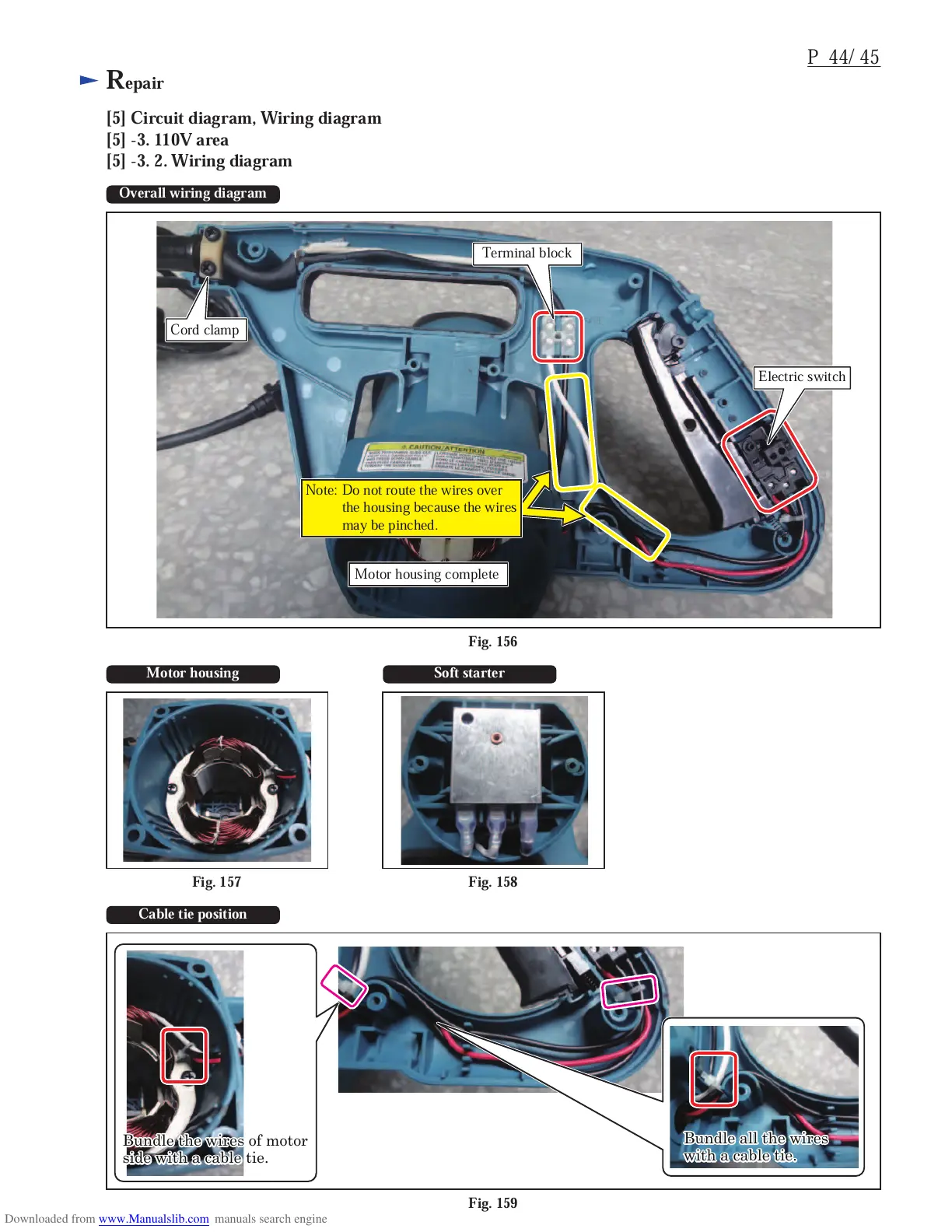

P 44/ 45
Repair
[5] Circuit diagram, Wiring diagram
[5] -3. 110V area
[5] -3. 2. Wiring diagram
Overall wiring diagram
Fig. 159
Cable tie position
Motor housing Soft starter
Motor housing complete
Note: Do not route the wires over
the housing because the wires
may be pinched.
Cord clamp
Terminal block
Electric switch
Fig. 157 Fig. 158
Bundle the wires of motor
side with a cable tie.
Bundle the wires of motor
side with a cable tie.
Bundle all the wires
with a cable tie.
Bundle all the wires
with a cable tie.
To Next Page
