Makita LS1018-R Technical Information

Stator Assembly
<View from the Carbon brush side>

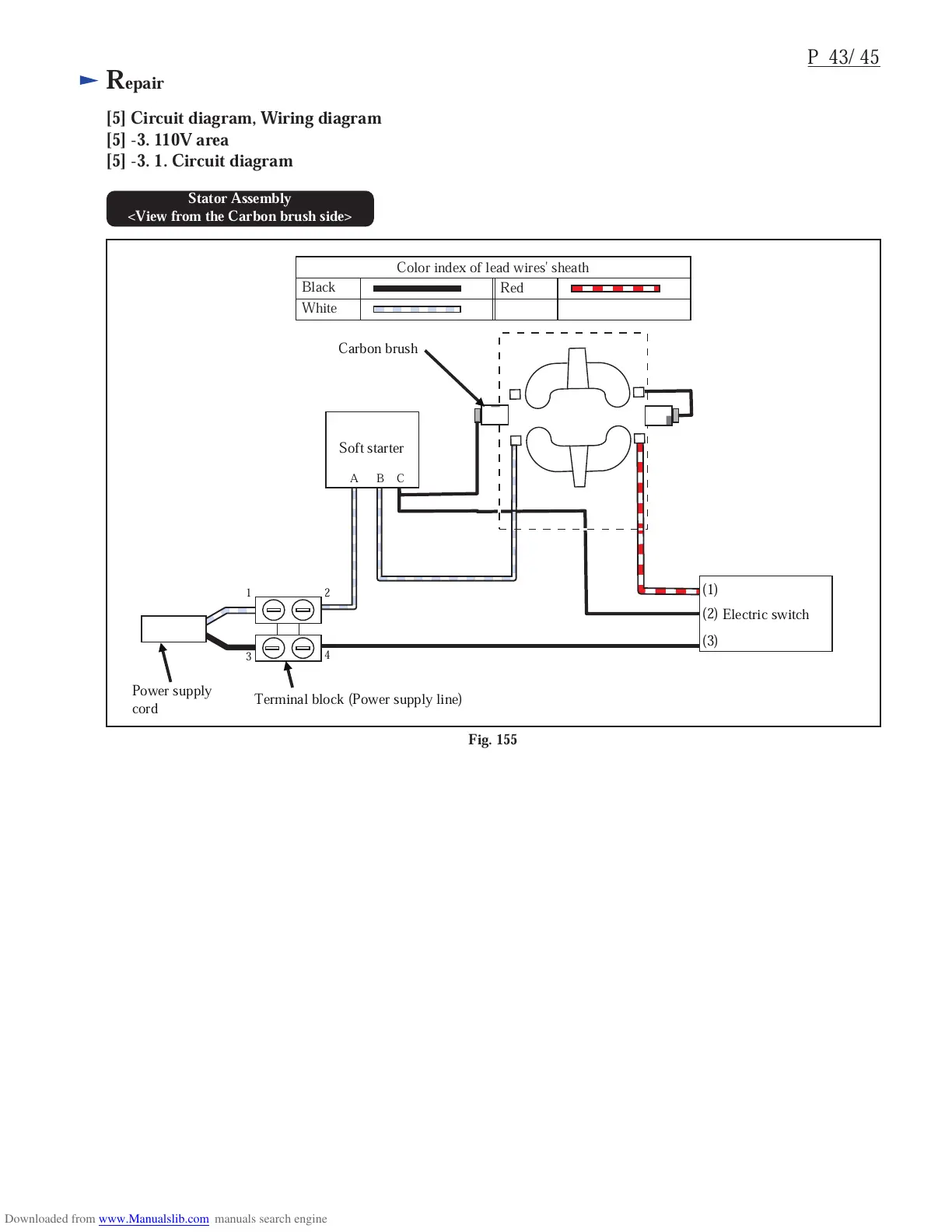

Fig. 155
P 43/ 45
Repair
[5] Circuit diagram, Wiring diagram
[5] -3. 110V area
[5] -3. 1. Circuit diagram
White
Color index of lead wires' sheath
Black
Red
Carbon brush


㻌
㻌
1 2
3
4
Power supply
cord
Terminal block (Power supply line)
A C
B
Soft starter
(3)
(1)
(2)
Electric switch
