Makita LS1018-R Technical Information

P 36/ 45
Repair
[4] ADJUSTMENT
[4] -2. Adjustment

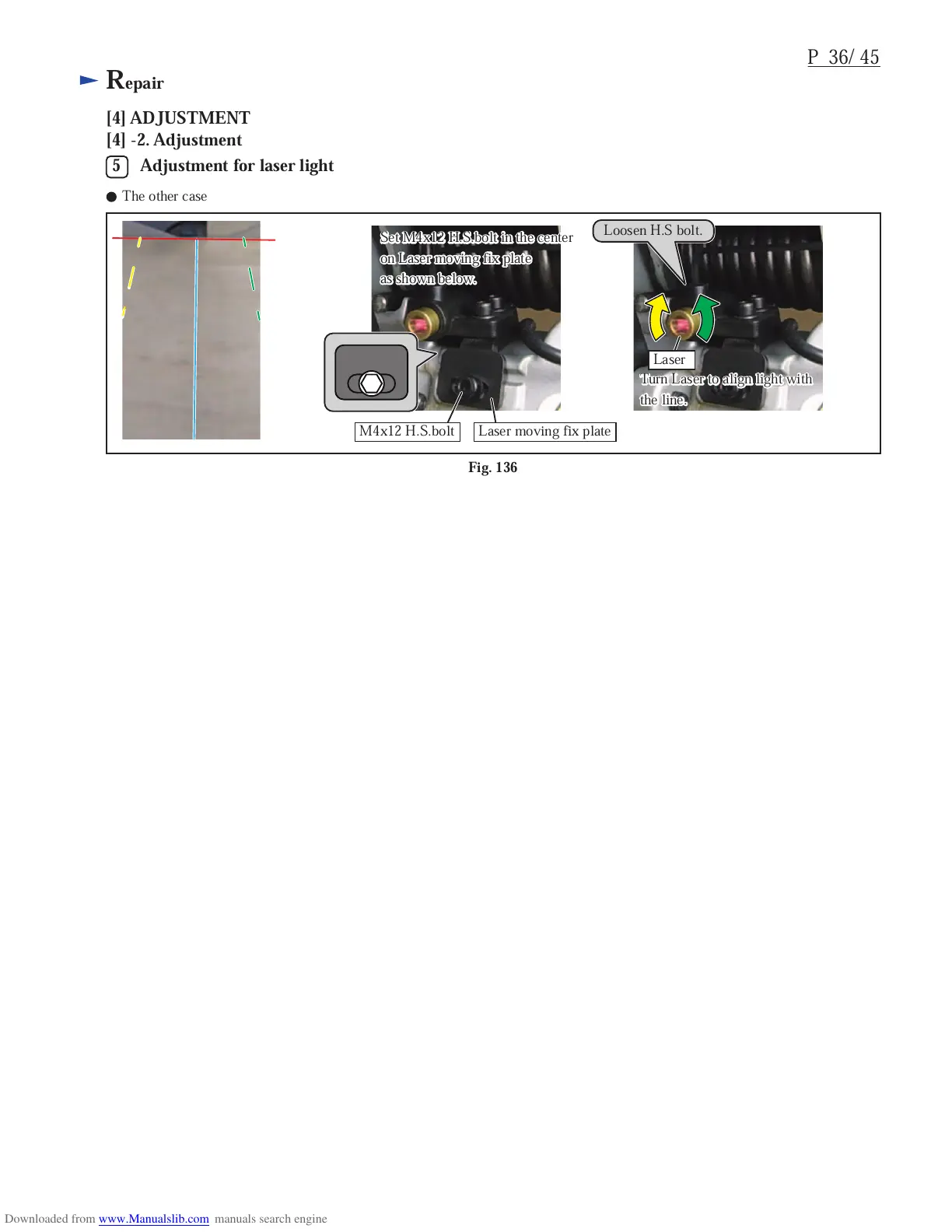

Adjustment for laser light
5
Loosen H.S bolt.
Set
M4x12 H.S.bolt in the center
on Laser moving fix plate
as shown below.
Set M4x12 H.S.bolt in the center
on Laser moving fix plate
as shown below.
Laser moving fix plateM4x12 H.S.bolt
The other case
Fig. 136
Loosen H.S bolt.
Set
M4x12 H.S.bolt in the center
on Laser moving fix plate
as shown below.
Set M4x12 H.S.bolt in the center
on Laser moving fix plate
as shown below.
Laser moving fix plate
Turn Laser to align light with
the line.
Turn Laser to align light with
the line.
M4x12 H.S.bolt
Laser
