P 3/ 45

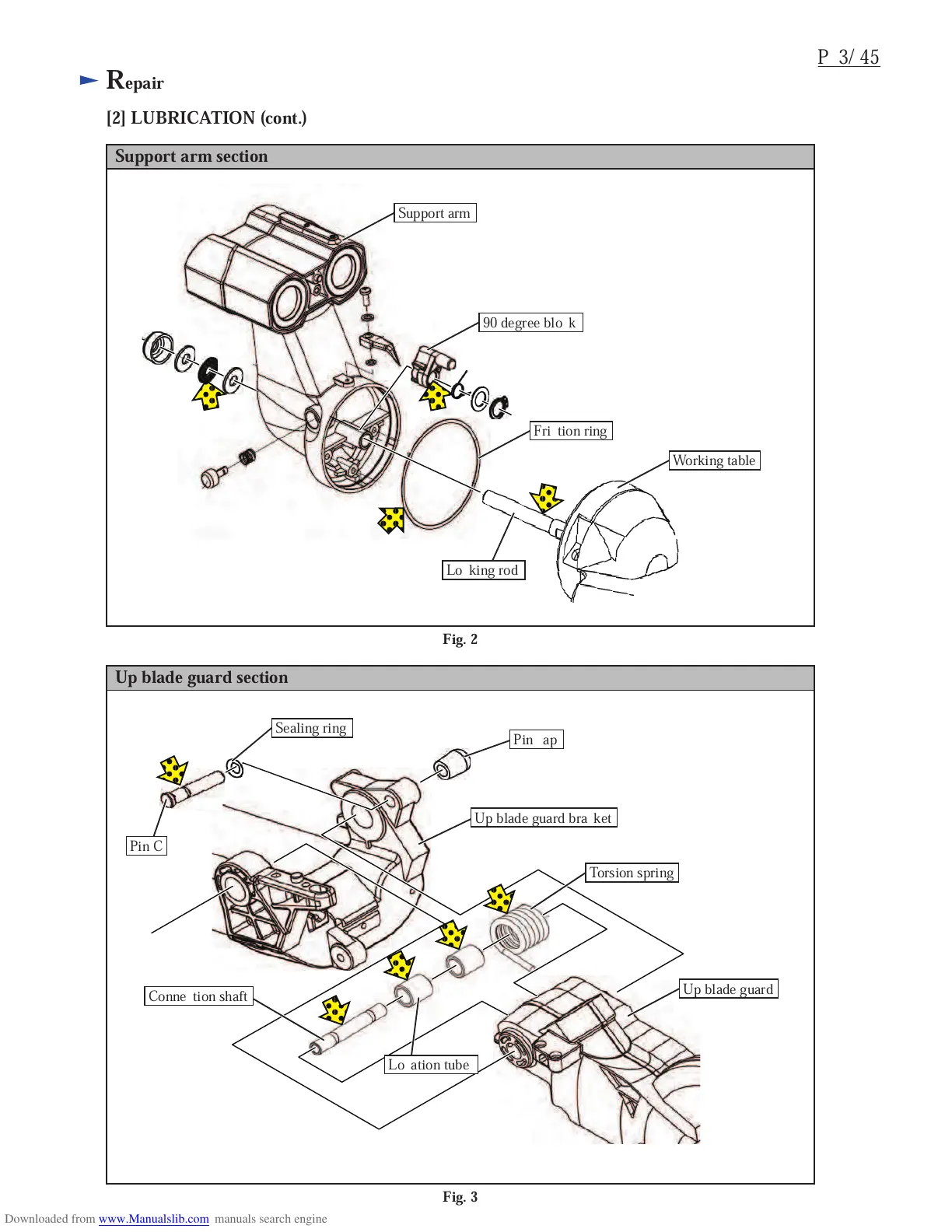

Repair
[2] LUBRICATION (cont.)
Fig. 2
Support arm section
Support arm
90 degree block
Friction ring
Working table
Locking rod
Fig. 3
Up blade guard section
Up blade guard
Up blade guard bracket
Pin cap
Sealing ring
Pin C
Location tube
Torsion spring
Connection shaft
