mammotome REVOLVE - Page 16

2-6

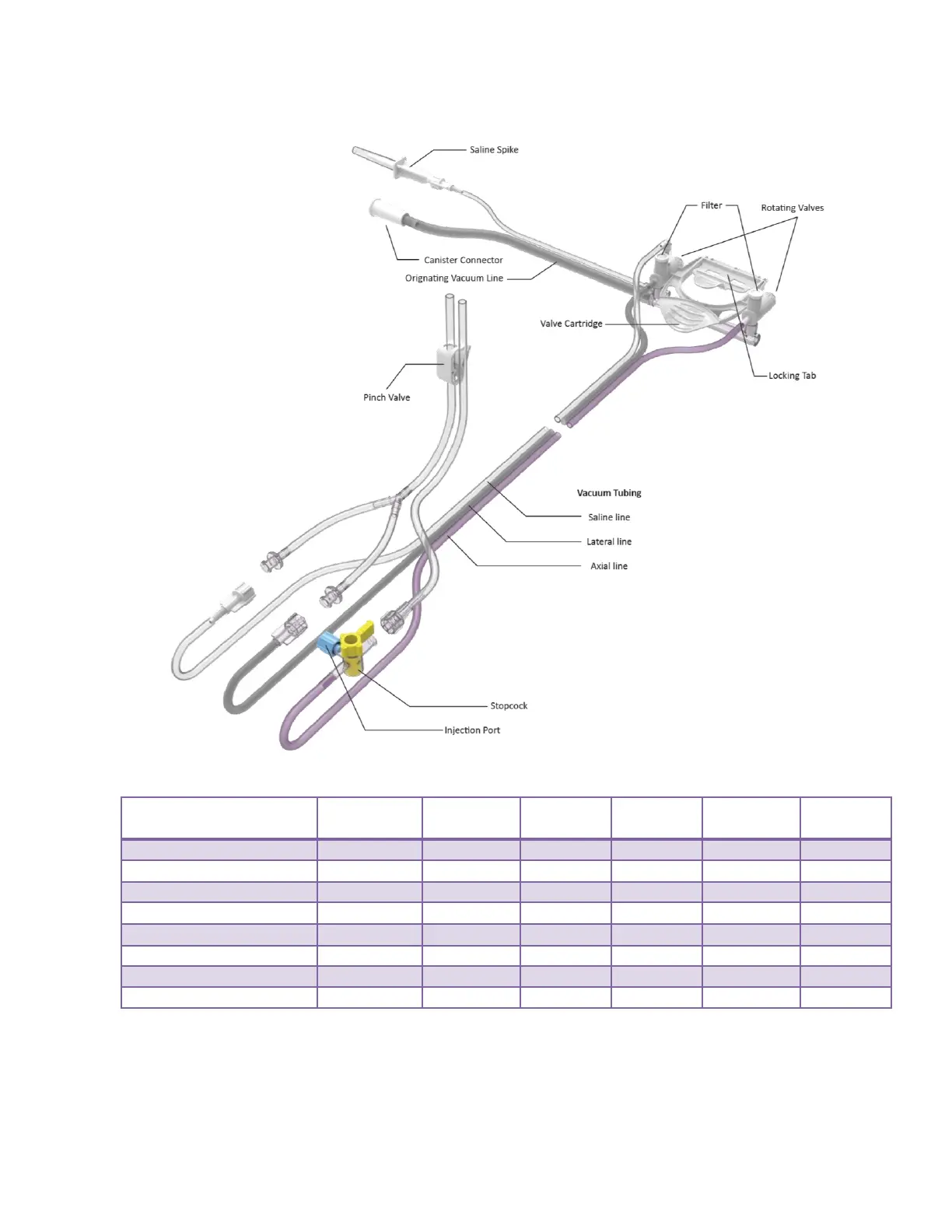

Figure 6. Vacuum Tube Set Illustration and Nomenclature
Table 1. Mammotome revolve ST Probe Specifications
Dimension (mm)
8G 9cm
MST0809
8G 12cm
MST0812
8G 15cm
MST0815
10G 9cm
MST1009
10G 12cm
MST1012
10G 15cm
MST1015
A: Needle Height
5.6
5.6
5.6
4.9
4.9
4.9
B: Needle Width
4.4
4.4
4.4
3.45
3.45
3.45
C: Tip to Center
21.0
21.0
21.0
17.5
17.5
17.5
D: Tip to Thumbwheel
91.5
121.5
151.5
90.0
120.0
150.0
E: Dead Space
9.5
9.5
9.5
8.0
8.0
8.0
F: Aperture Length
23.0
23.0
23.0
19.05
19.05
19.05
Fill Volume (cc)
9
9
10
8
8
8
Firing Distance
19.3
19.3
19.3
19.3
19.3
19.3
