WARNING: Use care when placing the holster in its docking station, to ensure it does not slip out of its
cradle.
NOTE: The cart arrives with the U/S docking station on the left side and the ST docking station on the
right side. The two can be switched if desired. (See instructions for unpacking the cart.) The EX
Holder (docking station) arrives not attached to the cart. Removal and Installation instructions
and tools are provided in the EX Holder packaging.
3. (OPTIONAL) Attaching the EX Holder (Cart Detachable Component) to the Cart (Refer to the
attachment instructions that are delivered with the EX Holder.)
4. (OPTIONAL) Connecting the Remote Footswitch to the Control Module
NOTE: See optional Step 4, above, and optional Step 5, below.

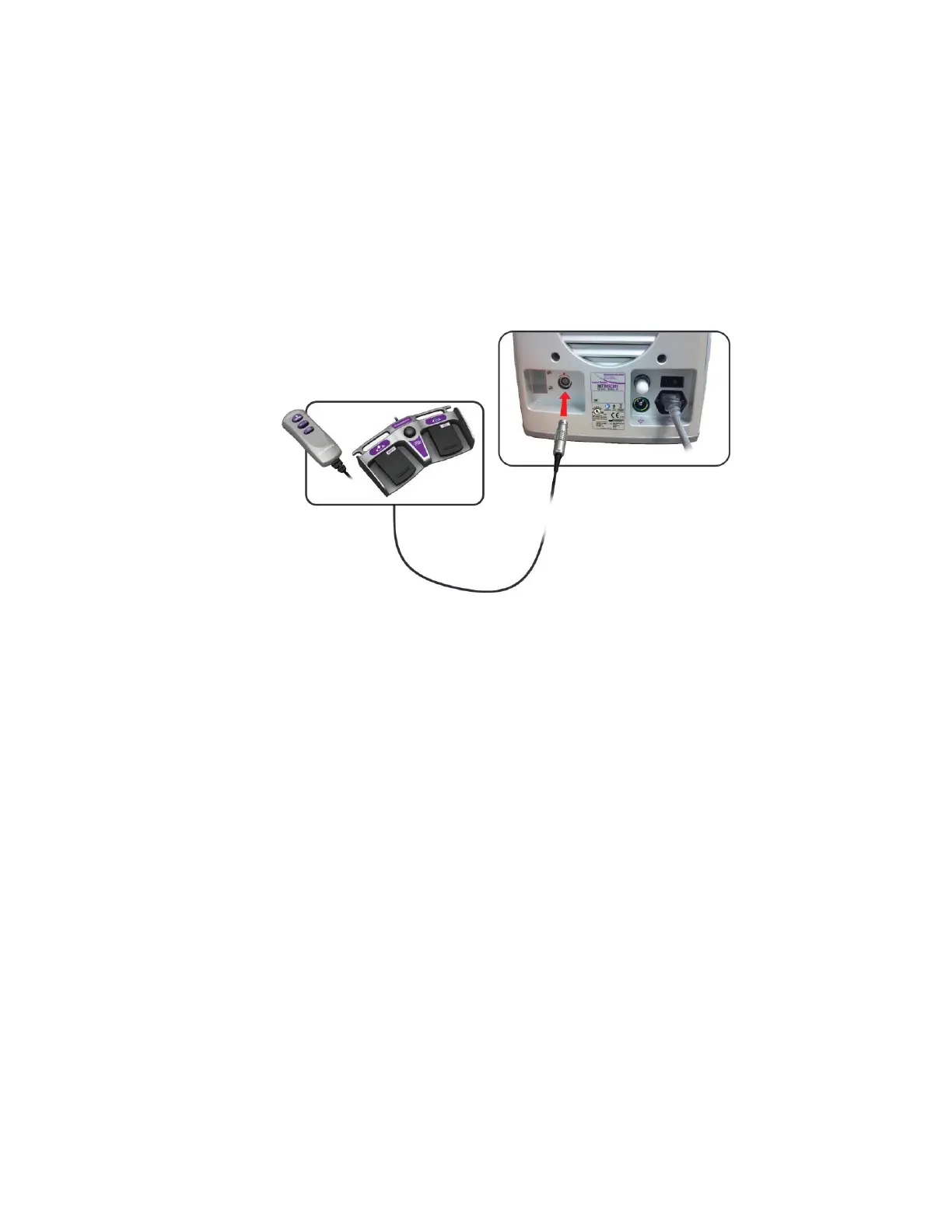

a. Align the remote footswitch’s power connector with the control module’s remote device connection
port (at the back of the control module) and push in until an audible click is heard.
b. Place the remote footswitch on the cart’s base (bottom) shelf for later use.
NOTE: Connecting the remote footswitch to the remote device connection port disables the buttons
on the attached holster (except for arm/fire on the ST holster only). Disconnect the remote
footswitch if the buttons on the holster or remote keypad are intended to be used.
5. (OPTIONAL) Connecting the Remote Keypad to the Control Module
a. Align the remote keypad’s power connector with the control module’s remote device connection port
(at the back of the control module) and push in until an audible click is heard.
b. Place the remote keypad in the storage bin at the back of the cart for later use.
PRECAUTION: Connecting the remote keypad to the remote device connection port disables the
buttons on the attached holster (except for arm/fire on ST only). Disconnect the
remote keypad if the buttons on the holster or remote footswitch are intended to be
used.
6. Connecting the Vacuum Canister to the Control Module
a. Inspect the vacuum canister before use. Ensure the lid is free of any cracks and is tightly sealed onto
the vacuum canister.
NOTE: The canister is single-use only.
