mammotome REVOLVE - Page 18

2-8

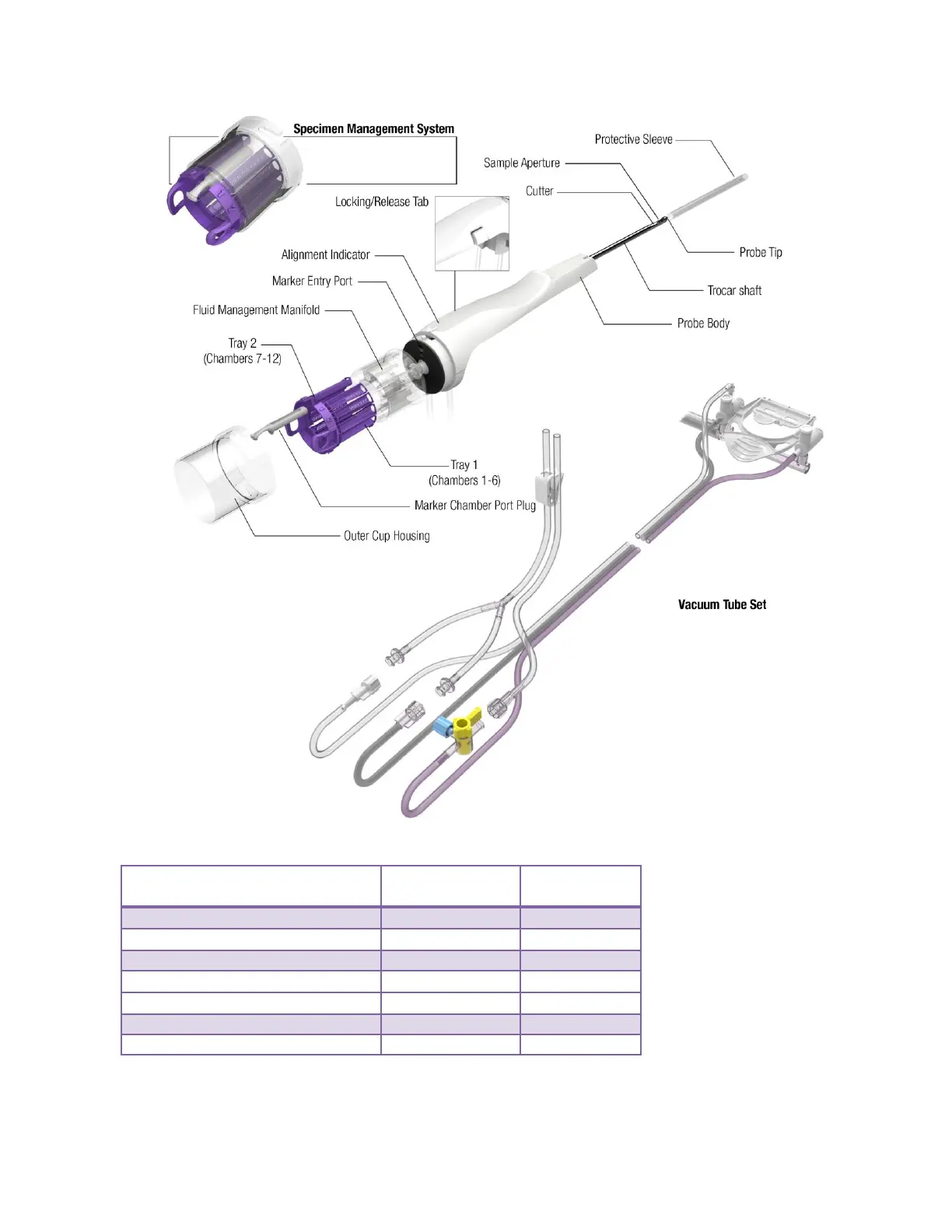

Figure 8. U/S Probe and Vacuum Tube Set Illustration and Nomenclature
Table 2. Mammotome revolve U/S Probe Specifications
Dimension (mm)
8G
MHUS08
10G
MHUS10
A: Needle Height
5.6
4.9
B: Needle Width
4.4
3.45
C: Tip to Center
21.0
17.5
D: Needle Length
123.55
124.04
E: Dead Space
9.5
8.0
F: Aperture Length
23.0
19.05
Fill Volume (cc)
9
8
