COMMONRAILSYSTEM

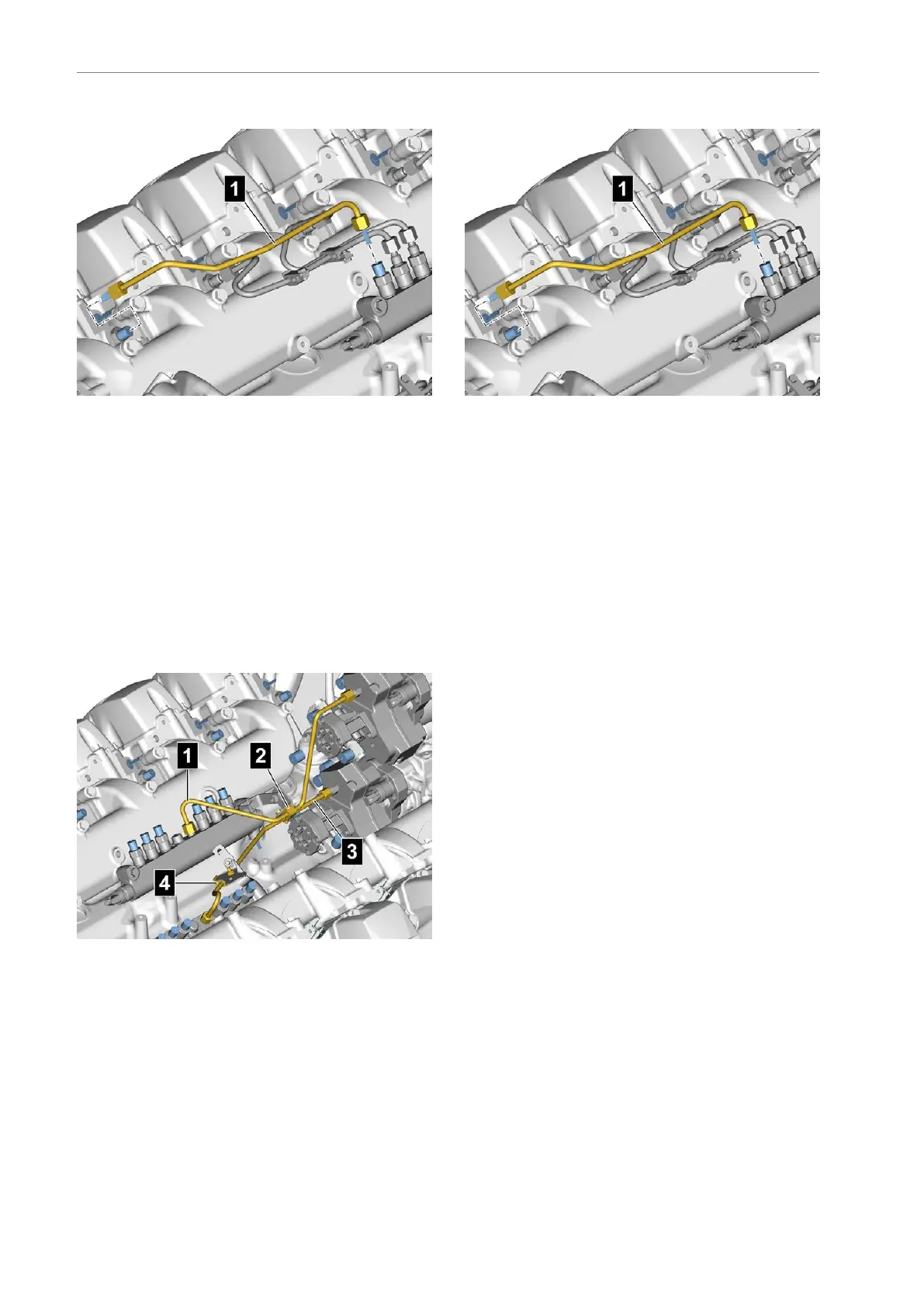

Attachingthehigh-pressureline
•Removethecapsandplugs
•Attachthehigh-pressureline(1),ensuringthatit
isstrain-free,usingtheAngleextension[15]and
Specialspanner,size17[14]
•Tightenthenewhigh-pressureline(1)toInitial
torque10Nm
•Tightenthehigh-pressureline(1)toInitial
torque10Nmifre-using
•Repeatthesameprocedurefortheother
high-pressurelines
•Attachthepipeclampsasmarked
•Tightenthepipeclampmountingboltsto5Nm
Attachingthehigh-pressuresupplylines
•Removetheendplugsandprotectivesleeves
•Tightenthehigh-pressurelines(1)and(3)toInitial
torque10NmusingtheAngleextension[41]in
conjunctionwiththeSpecialspanner,size17[40]
•Positionthepipeclamps(2)and(4)asmarked
•Tightenthepipeclampmountingboltsto5Nm
•Ifusingforthersttime,tightenthehigh-pressure
lines(1)and(3)toFinaltightening60°usingthe
Specialspanner,size17[40]inconjunctionwith
theAngleextension[41]
•Ifre-using,tightenthehigh-pressurelines(1)
and(3)toFinaltightening30°usingtheSpecial
spanner,size17[40]inconjunctionwiththeAngle
extension[41]
Finaltighteningofhigh-pressureline
•Tightenthenewhigh-pressurelines(1)toFinal
tightening60°withAngleextension[15]and
Specialspanner,size17[14]
•Tightenthehigh-pressurelines(1)toFinal
tightening30°withAngleextension[15]and
Specialspanner,size17[14]ifre-using
•Repeatthesameprocedurefortheother
high-pressurelines
114AE63stedition
