COMMONRAILSYSTEM

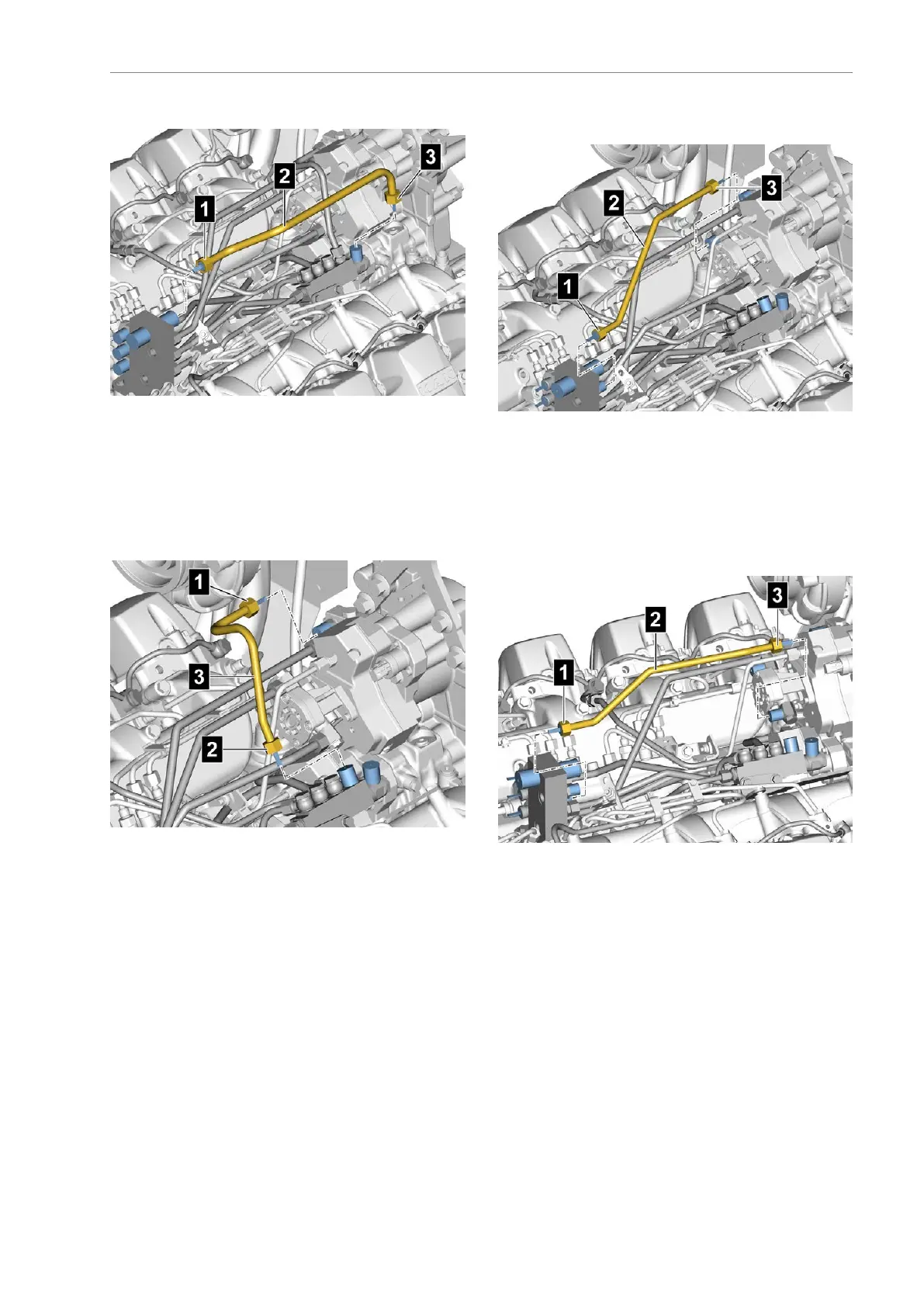

Detachingthefuelreturnline
•Unscrewtheunionnuts(1)and(3)
•Removethefuelline(2)
•Plugthefuelline(2)withtheEndplug(GPN330
L18)[46]
•PlugtheconnectionswithEndplug(GPN330
L18)[46]andProtectivesleeveZ28x20[51]
Detachingthefuellinedrain–lter
•Unscrewtheunionnuts(1)and(2)
•Removethefuelline(3)
•Plugthefuelline(3)withtheEndplug[47]
•PlugtheconnectionswithProtectivesleeveZ
18x1.5[49]
Detachingthefuellinehigh-pressurepumptop
–fuellter
•Unscrewtheunionnuts(1)and(3)
•Removethefuelline(2)
•Plugthefuelline(2)withtheEndplug[47]
•PlugtheconnectionswithProtectivesleeveZ
18x1.5[49]
Detachingthefuellinehigh-pressurepumptop
–handpump
•Unscrewtheunionnuts(1)and(3)
•Removethefuelline(2)
•Plugthefuelline(2)withtheEndplug[47]
•PlugtheconnectionswithProtectivesleeveZ
18x1.5[49]
