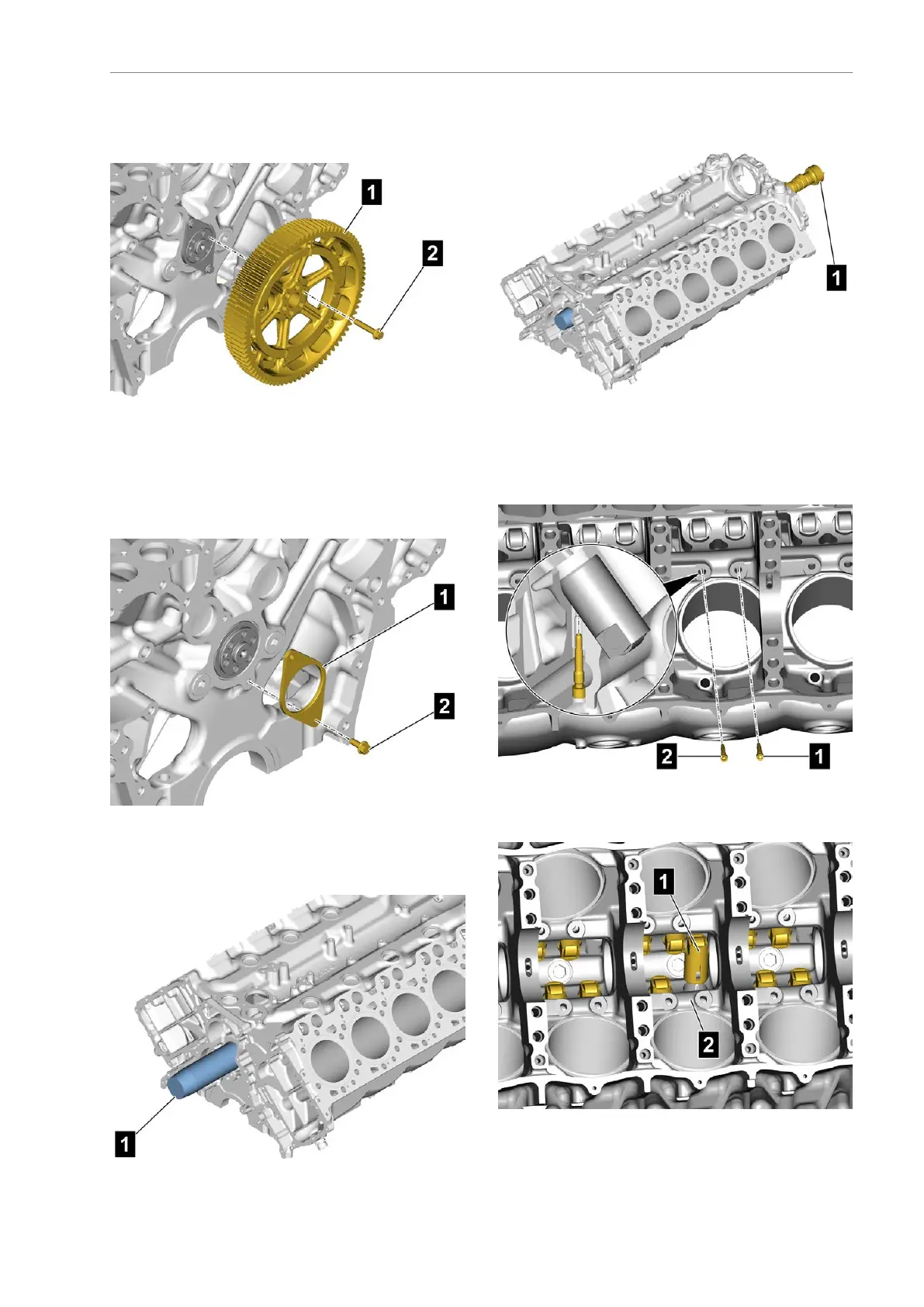

VALVETIMING
Removingthecamshaft
Detachingthecamshaftgear
•Unscrewthemountingbolts(2)
•Pulloffthecamshaftgear(1)overthealignment
pin
Detachingtheaxialshim
•Unscrewthemountingbolts(2)
•Removetheaxialshim(1)
Attachingtheinsertionpin
•ScrewtheInsertionpin[99](1)intothecamshaft
Removingthecamshaft
•Pushoutthecamshaft(1)towardstheywheel
housingwithInsertionpin[99]
•UnscrewtheInsertionpin[99]
Unscrewingtheanti-rotationdevice
•Unscrewtheanti-rotationdevices(1)and(2)
Removingtherollertappet
•Extracttherollertappet(1)fromthecrankcase(2)
AE63stedition247
