ENGINELUBRICATION
Removingoilpumps

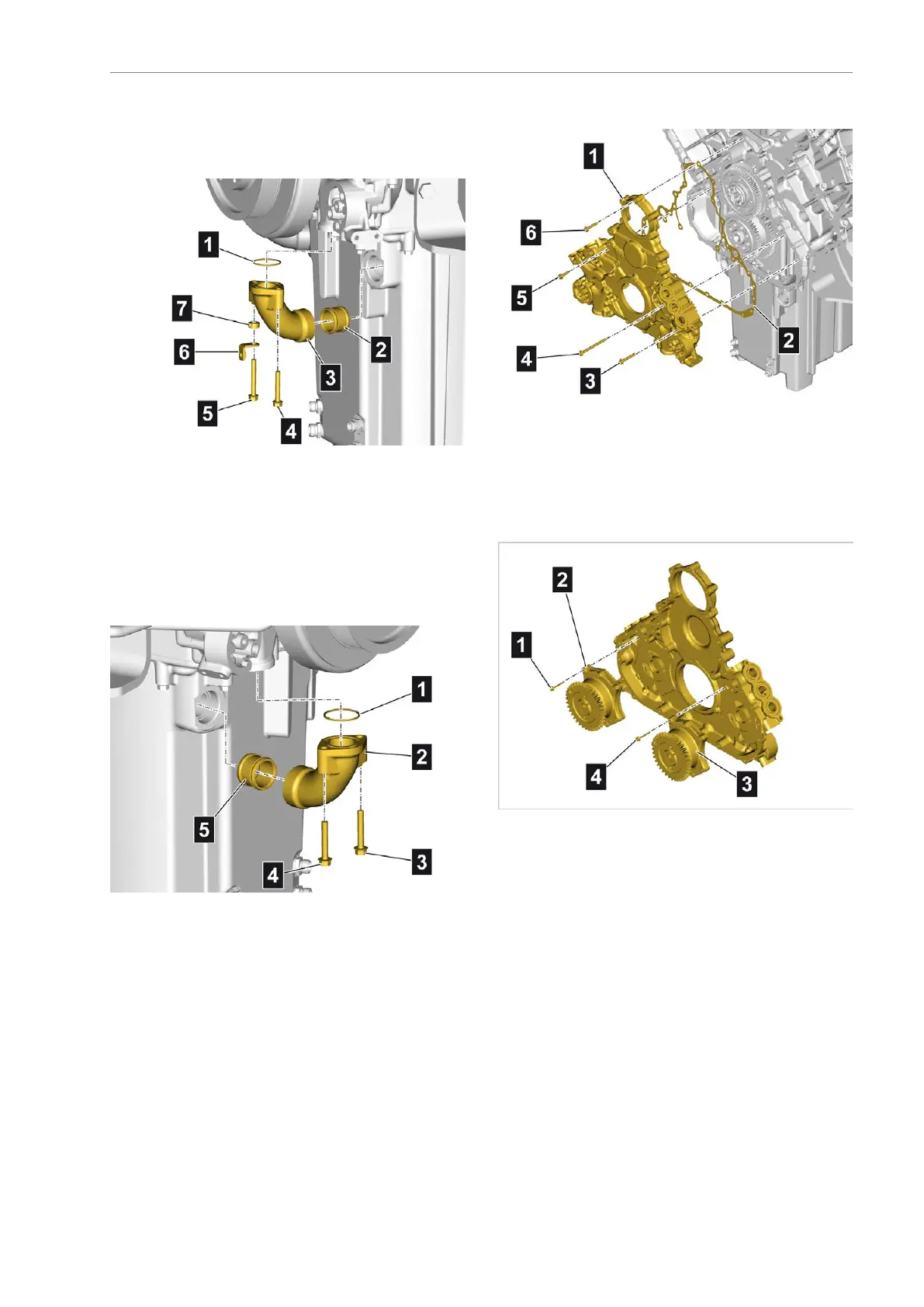

Detachingthemanifoldfortheleftoilsuction
line
•Markthemountingbolts(4)and(5)
•Unscrewthemountingbolts(4)and(5)andthen
removewiththeholder(6)andbush(7)
•Removethemanifold(3)withtheO-ring(1)
•Pullouttheinsertpipe(2)
•Cleanthesealingsurfaces
Detachingthemanifoldfortherightoilsuction
line
•Unscrewthemountingbolts(3)and(4)and
remove
•Removethemanifold(2)withtheO-ring(1)
•Pullouttheinsertpipe(5)
•Cleanthesealingsurfaces
Detachingthecover
•Marktheinstallationpositionofthemountingbolts
(3),(4),(5)and(6)
•Unscrewthemountingbolts(3),(4),(5)and(6)
•Removethecover(1)withtheseal(2)
•Cleanthesealingsurfaces
Removingoilpumps
•Marktheinstallationpositionofthemounting
bolts(1)and(4)
•Unscrewthemountingbolts(1)and(4)
•Removetheoilpumps(2)and(3)
AE63stedition291
