CRANKMECHANISM

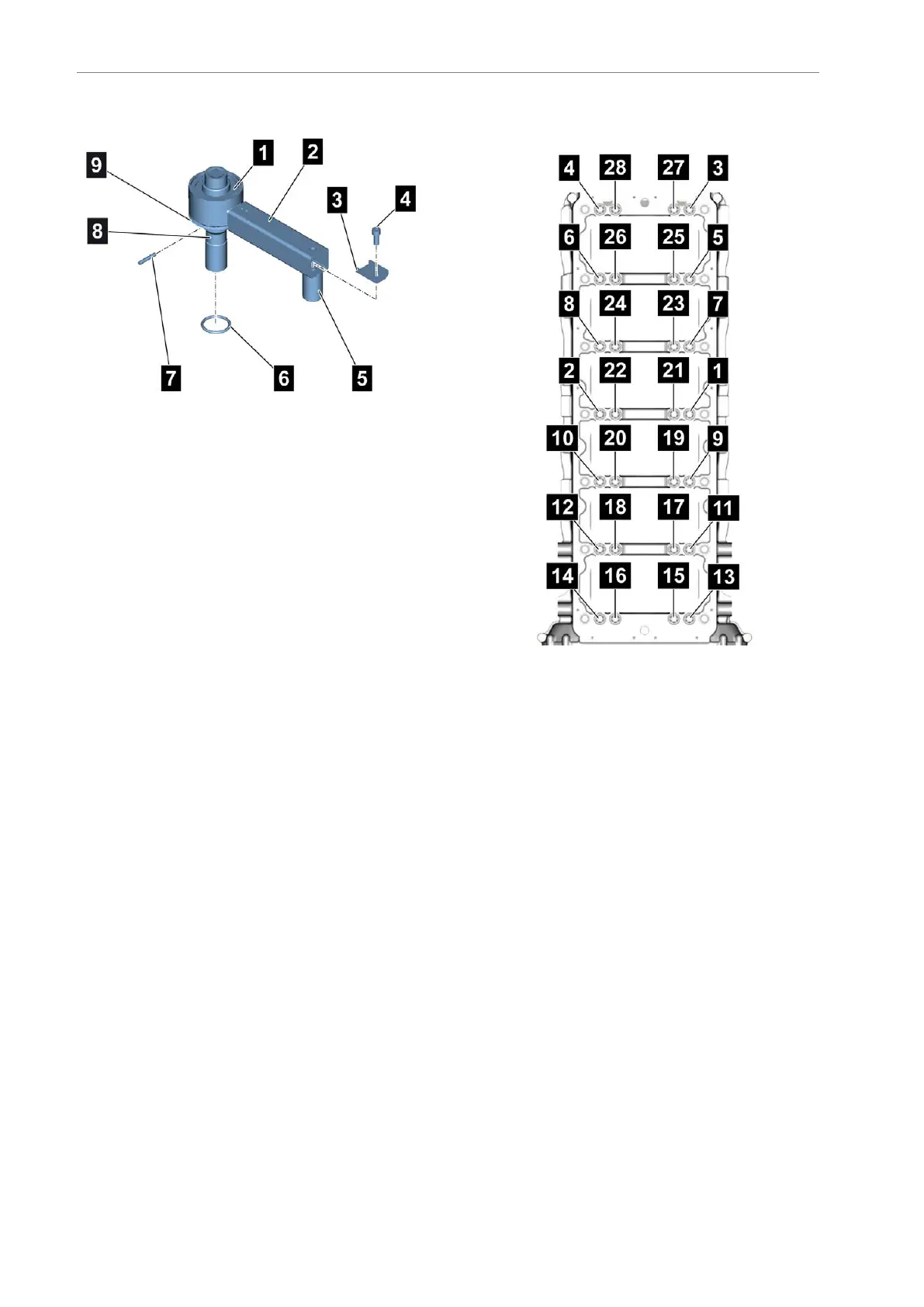

Assemblingspecialtool1
•InserttheT orquemultiplieri=1:3.3[156](1)into
theSupport[157](2)
•AttachtheHoldingdevice[159](5)withthe
Cylinderheadbolt[160](4)andtheAdapter[163]
(3)ontheSupport[157](2)
•PlacetheT orqueanglegauge[158](9)ontothe
Torquemultiplieri=1:3.3[156](1)
•PuttheSocket,size22[155](8)ontheT orque
multiplieri=1:3.3[156](1)andsecureusing
theConnectingpin[161](7)andRubberring,
42mm[162](6)
•InserttheSocket[164]intotheSocket,size
22[155](8)andHoldingdevice[159](5)
Unscrewingtheinnercrankcaselowersection
mountingbolts
•Unscrewthemountingbolts1to28usingthe
specialtool
•Unscrewthemountingbolts1to28
•Disassemblethespecialtool
