CRANKMECHANISM

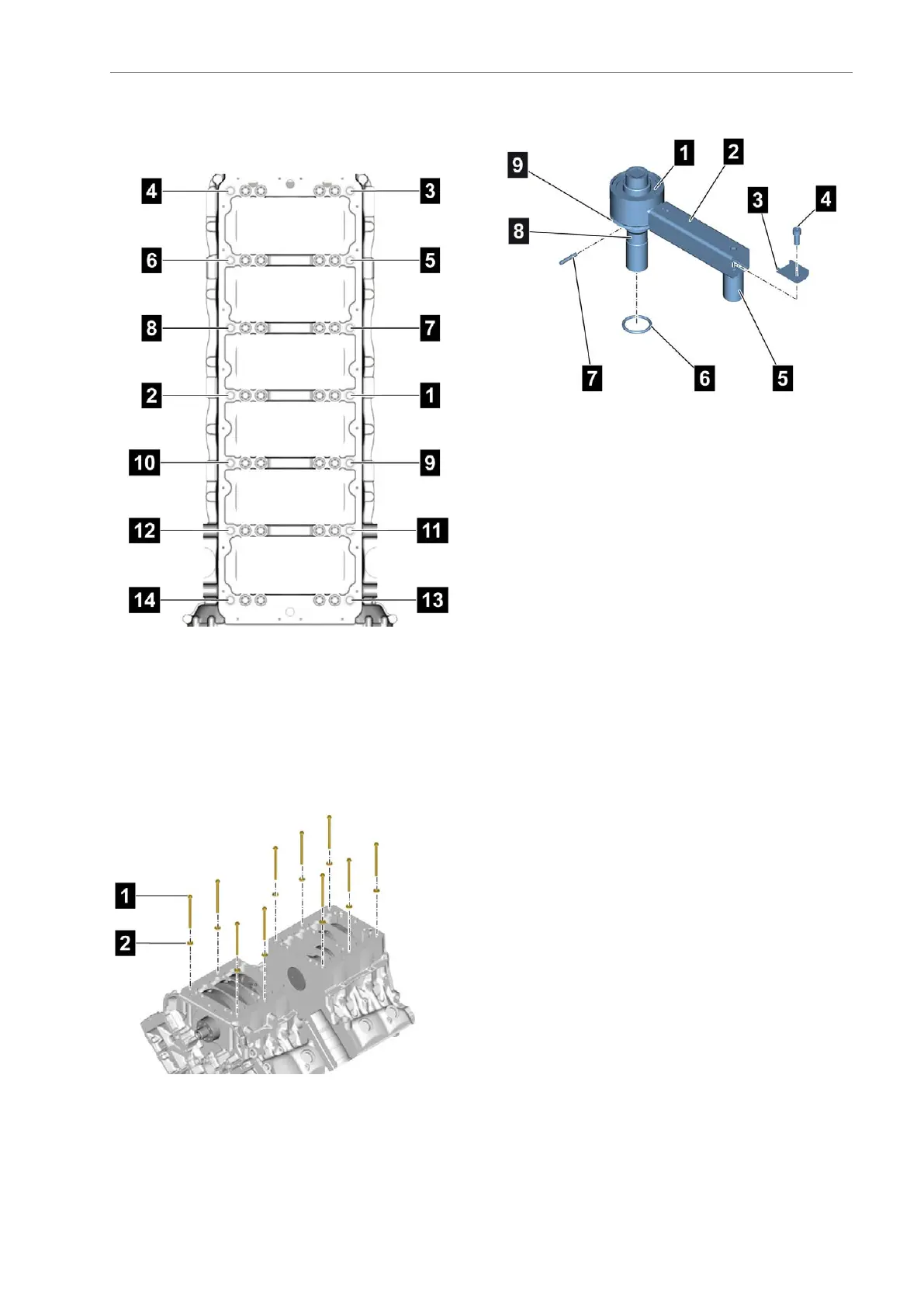

Tighteningsequenceofoutermountingbolts
•Evenlytightenthemountingbolts(1)and(2)
alternatelyuntilthecrankcaselowersection
comesintocontact
•Tightenthemountingbolts1to14inthetightening
sequence
Tighteningtheoutermountingbolts
•ThinlyapplycleanengineoiltoMANStandard
3277onthecontactsurfacesandthreadsofthe
newmountingbolts(1)
•Screwinthenewoutermountingbolts(1)with
washers(2)asmarked
•Tightentheoutermountingbolts(1)to65Nmas
perthetighteningdiagram
Assemblingspecialtool1
•InserttheT orquemultiplieri=1:3.3[156](1)into
theSupport[157](2)
•AttachtheHoldingdevice[159](5)withthe
Cylinderheadbolt[160](4)andtheAdapter[163]
(3)ontheSupport[157](2)
•PuttheT orqueanglegauge[158](9)ontheT orque
multiplieri=1:3.3[156](1)
•PuttheSocket,size22[155]ontheT orque
multiplieri=1:3.3[156](1)andsecureusing
theConnectingpin[161](7)andtheRubberring,
42mm[162](6)
•InserttheSocket[164](8)intotheSocket,size
22[155]andHoldingdevice[159](5)
AE63stedition349
