B-LONGITUDINAL STABILITY DEVICE WARNING
This device warns the operator of the machine's longitudinal stability limits.
However, lateral stability can reduce the load chart in the upper part, and this reduction is not detected by the longitudinal
stability limiter and warning device.

IMPORTANT

The operator must respect the machine's load chart.

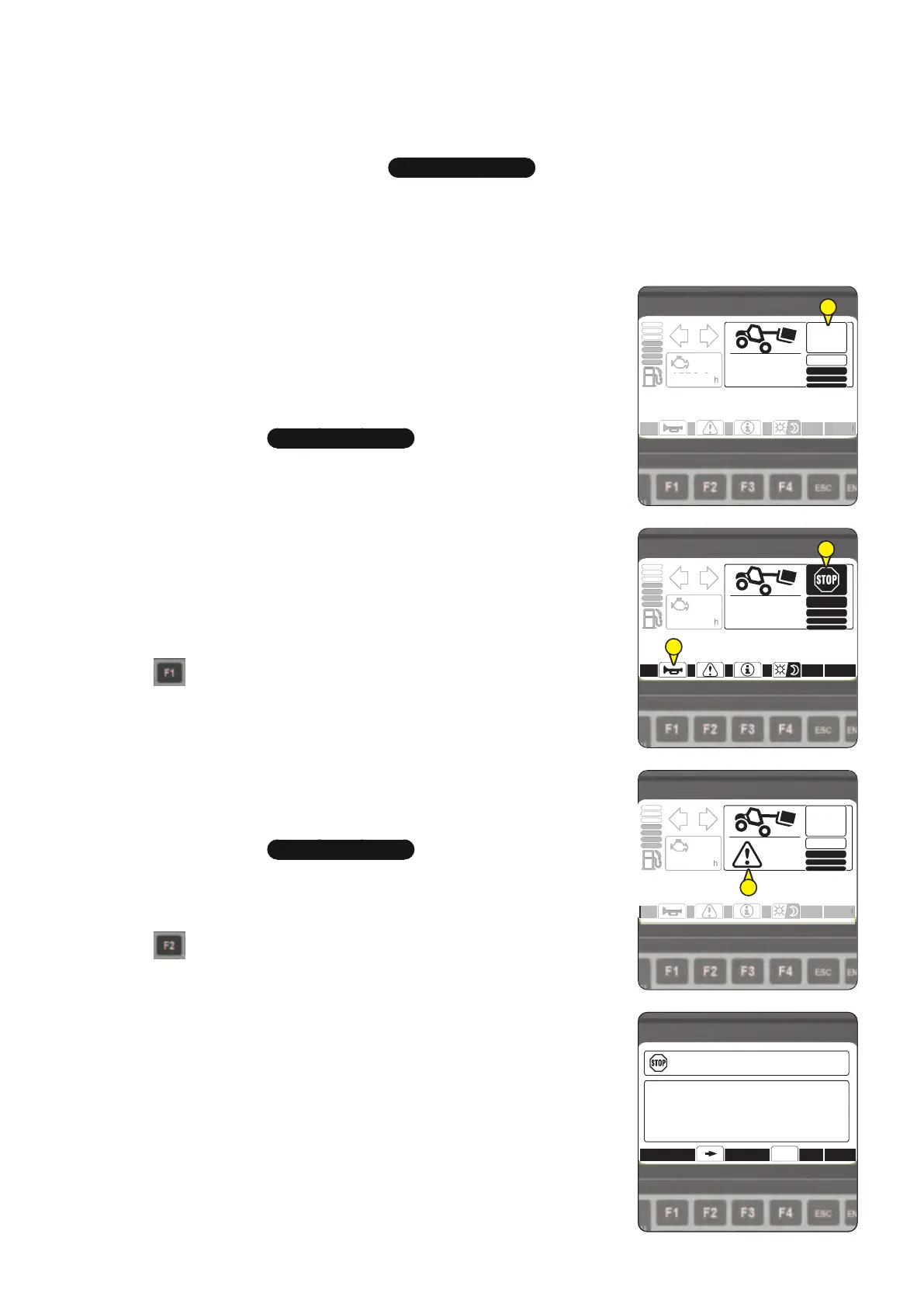

1-LOAD LEVEL
2-OVERLOAD WARNING
This warning light comes on when the machine reaches 100% of the maximum allowable
load.
As soon as the overload warning is given, the "aggravating" hydraulic movements cut-
off is activated automatically.

IMPORTANT

Remain very vigilant under these conditions.
The user is only informed of the stability of the machine by the visual and audible information given by the
longitudinal stability warning device.
NOTE: The "aggravating" hydraulic movements cut-off is deactivated in two scenarios:
• When the operator has pressed the "aggravating" hydraulic movement cut-off
switch for 3 seconds (-SWITCHES).
• As soon as the operator selects forward or reverse gear with the engine speed
above 1,200rpm.
3-AUDIBLE ALARM
This alarm is triggered at the same time as the load level1 comes on.
- Press on to eliminate or activate the audible alarm.
4-FAULT
This fault appears when an anomaly is detected on the longitudinal stability limiter
and warning device.

IMPORTANT

If a fault is displayed, stop the machine.
Never carry out the repair yourself.
It is forbidden to dismantle the safety device assembly. This must be carried out by qualified personnel.
Contact your dealer.
- Press on to scroll through the faults according to the anomalies:
• "ON-OFF overload Sensor Controller"
• "ANA Overload Sensor"
• "Movement Cut-off Control"
• "Bypass Control"
• "Overload Consistency"
• "Movement Cut-off Consistency"
• "Bypass Consistency"
- Test the longitudinal stability limiter and warning device (
3-MAINTENANCE:
10H - DAILY MAINTENANCE OR EVERY 10 HOURS OF SERVICE).
NOTE: If the fault persists, consult your dealer.
