18000 OPERATOR MANUAL SET-UP AND INSTALLATION
4
FIGURE 4-77
Dead-End Socket
Two-Block Weight
NOTE Dead end wire rope at upper
boom point dead-end lug.
See NOTE
See NOTE
See NOTE
See NOTE

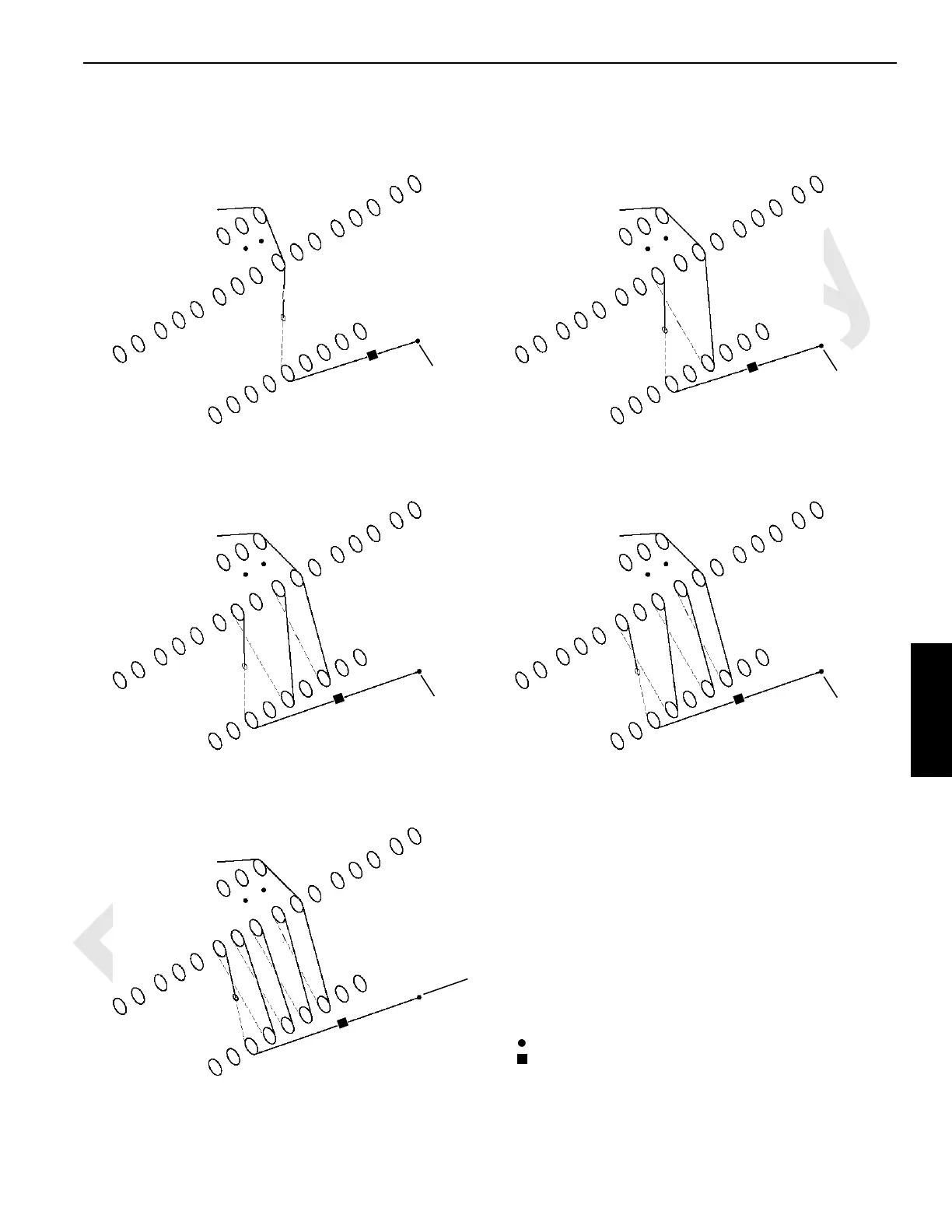

SINGLE HOIST DRUM REEVING
#55, #55A, and #79A Tops
Boom Top Wire
Rope Guide
Lower Boom
Point
2 Part
9 Sheave Block
4 Part
9 Sheave Block
6 Part
9 Sheave Block
8 Part
9 Sheave Block
10 Part
9 Sheave Block
4-224
