SET-UP AND INSTALLATION 18000 OPERATOR MANUAL
4-132
Published 12-05-17, Control # 032-23

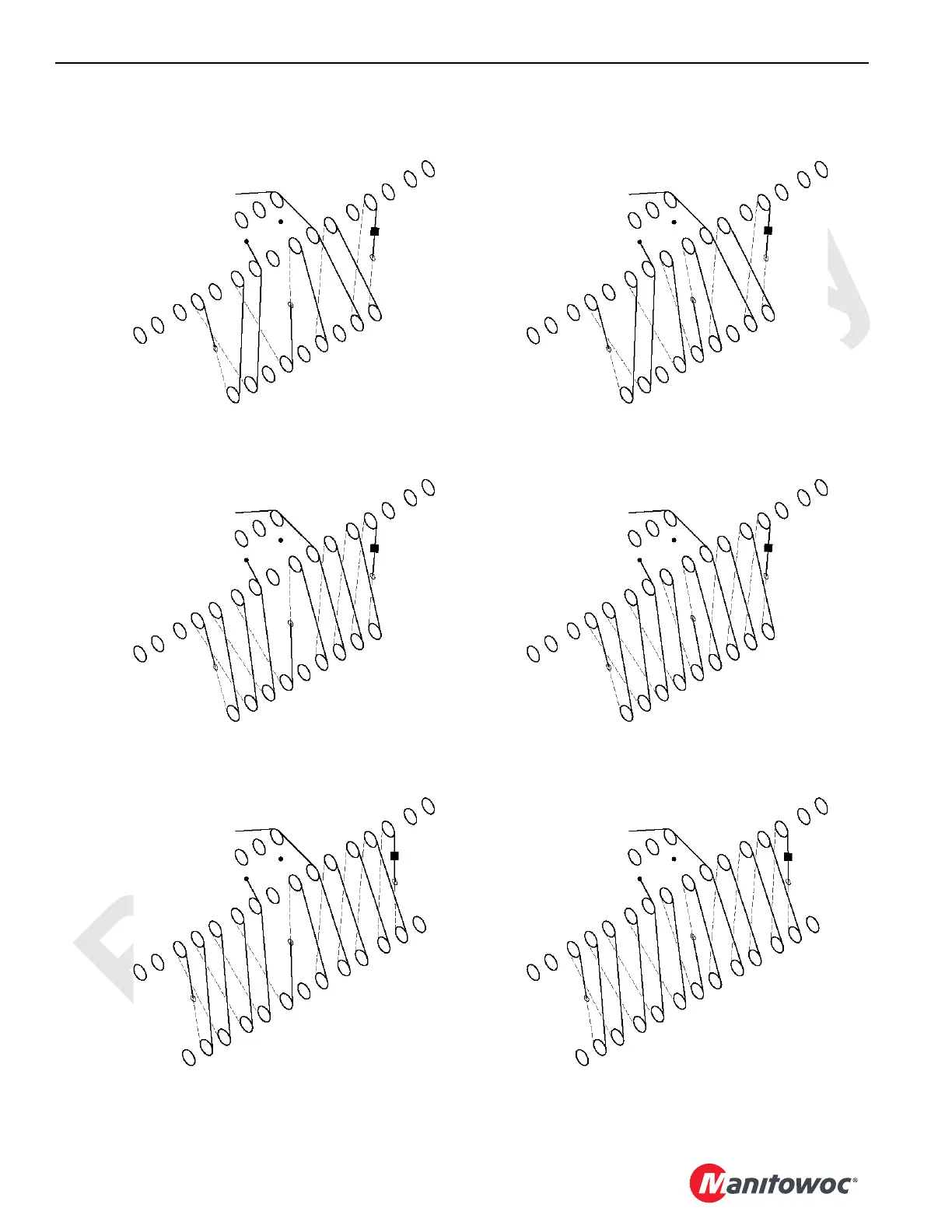

FIGURE 4-77 continued
SINGLE HOIST DRUM REEVING
#55, #55A, and #79A Tops
12 Part
9 Sheave Block
14 Part
9 Sheave Block
16 Part
9 Sheave Block
18 Part
9 Sheave Block
20 Part
13 Sheave Block
22 Part
13 Sheave Block
Boom Top Wire
Rope Guide
Lower Boom
Point
4-225
