Manitowoc Grove GMK 5200-1 User Manual

Maintenance work on the carrier
7.19 Towbar coupling
09.03.2018
Maintenance manual 3 302 746 en 7 - 141
GMK5200-1
Checking for
correct
functioning

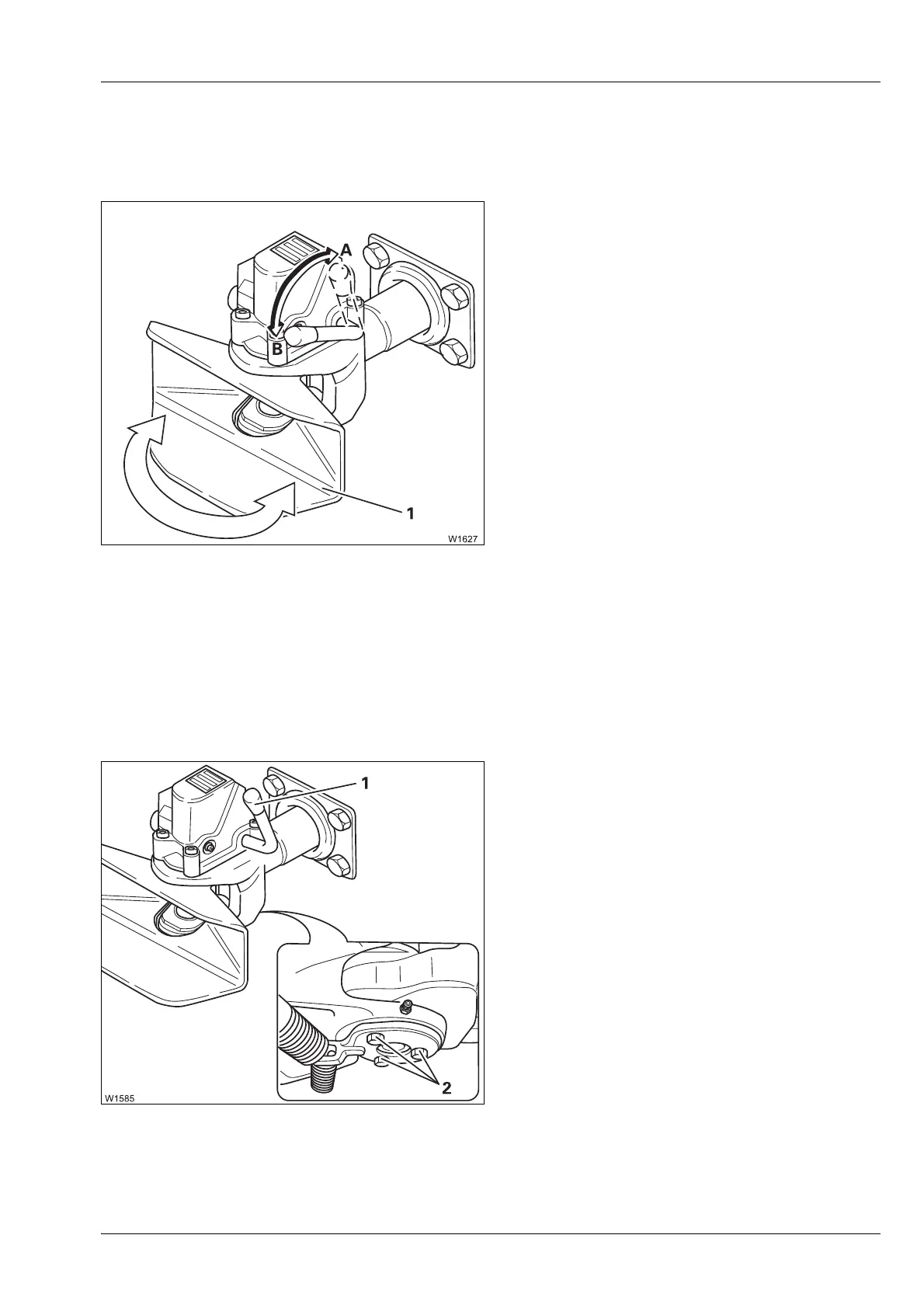

The coupling jaw must be able to move easily
in both directions.
• Hold the coupling jaw (1) pressed slightly to
the left or right.
• Open the coupling (position A) and let the
coupling jaw go.
The lever must automatically lock the coupling
jaw in the middle position. The coupling jaw is
locked when the coupling can no longer move
to the side.
H
If the lever does not automatically engage with the coupling jaw, the central
position must be re-adjusted;
à p. 7 - 141.
Resetting the
middle position
• Open the coupling (lever (1) pointing
upwards) and loosen the screws (2).
• Push the coupling jaw to the side until the
lever engages.
• Tighten the screws – torque 58 Nm
(42.7 lbf ft).
• Check the functioning of the coupling jaw;
à p. 7 - 140.
