Manitowoc MLC100-1 - REMOVE CRANE COUNTERWEIGHT

Manitowoc Published 10-09-2020, Control # 259-06 10-5
MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL ACCESSORIES
10

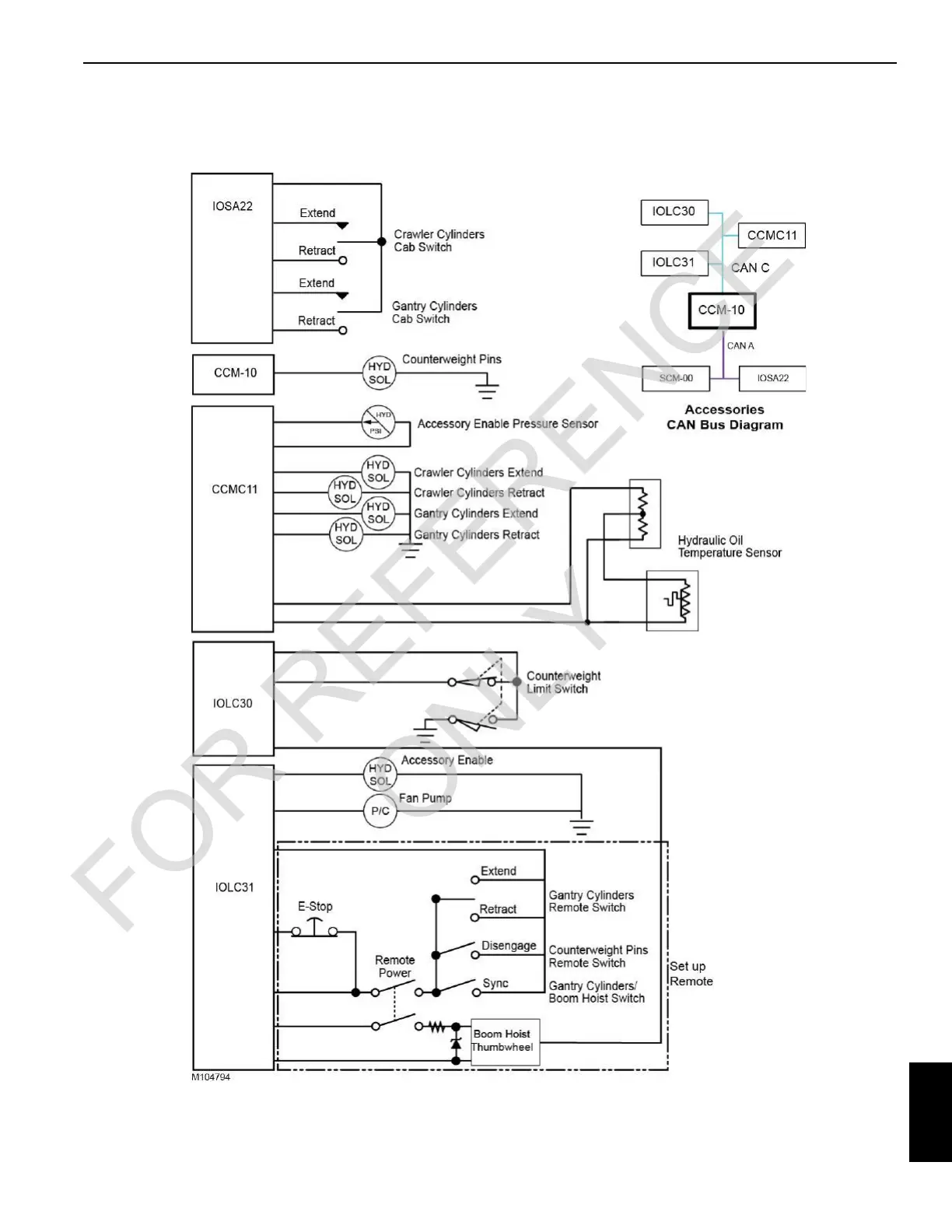

ACCESSORY SYSTEMS ELECTRICAL DIAGRAM
A detailed electrical schematic is provided at the end of Section 3 in this Service Manual.
FIGURE 10-2
FOR REFERENCE
ONLY
