HYDRAULIC SYSTEM MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL
2-20
Published 10-09-2020, Control # 259-06

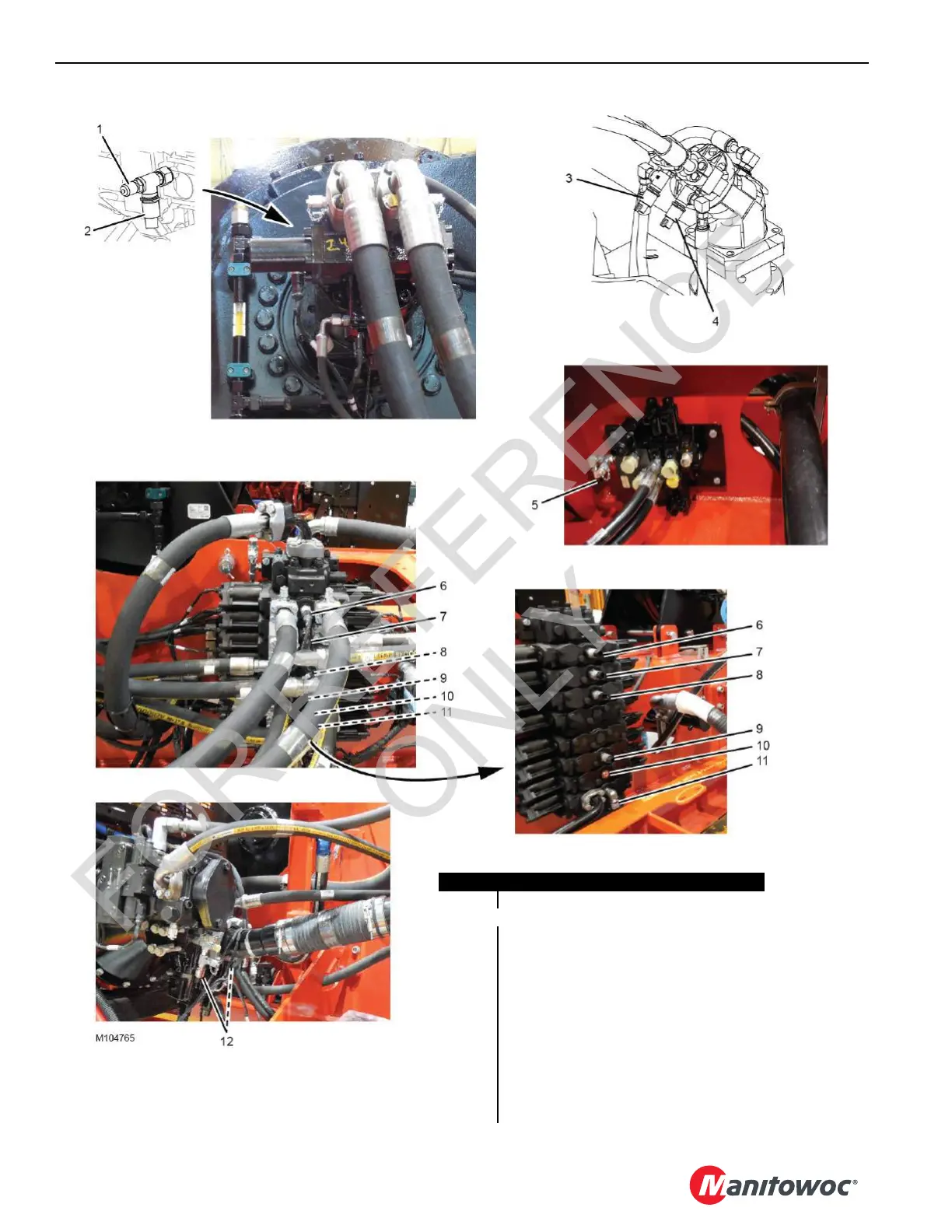

FIGURE 2-16
Main Valve
Swing Motor
Typical Drum Motor
High Pressure Accessory Valve
Item Description
1 Gauge Coupler with Dust Cap-18 UNF x -6
PRESSURE TRANSDUCER ID
2 Drum Motor (similar all drums)
3 Swing Right
4Swing Left
5 High Pressure Accessory
6 Right Travel
7Drum 4
8Drum 1 Primary
9Drum 2 Primary
10 Drum 3 (optional)
11 Travel Left
12 Main Pump
Main Valve Hoses Removed
Main Pump
FOR REFERENCE
ONLY
