HYDRAULIC SYSTEM MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL
2-24
Published 10-09-2020, Control # 259-06

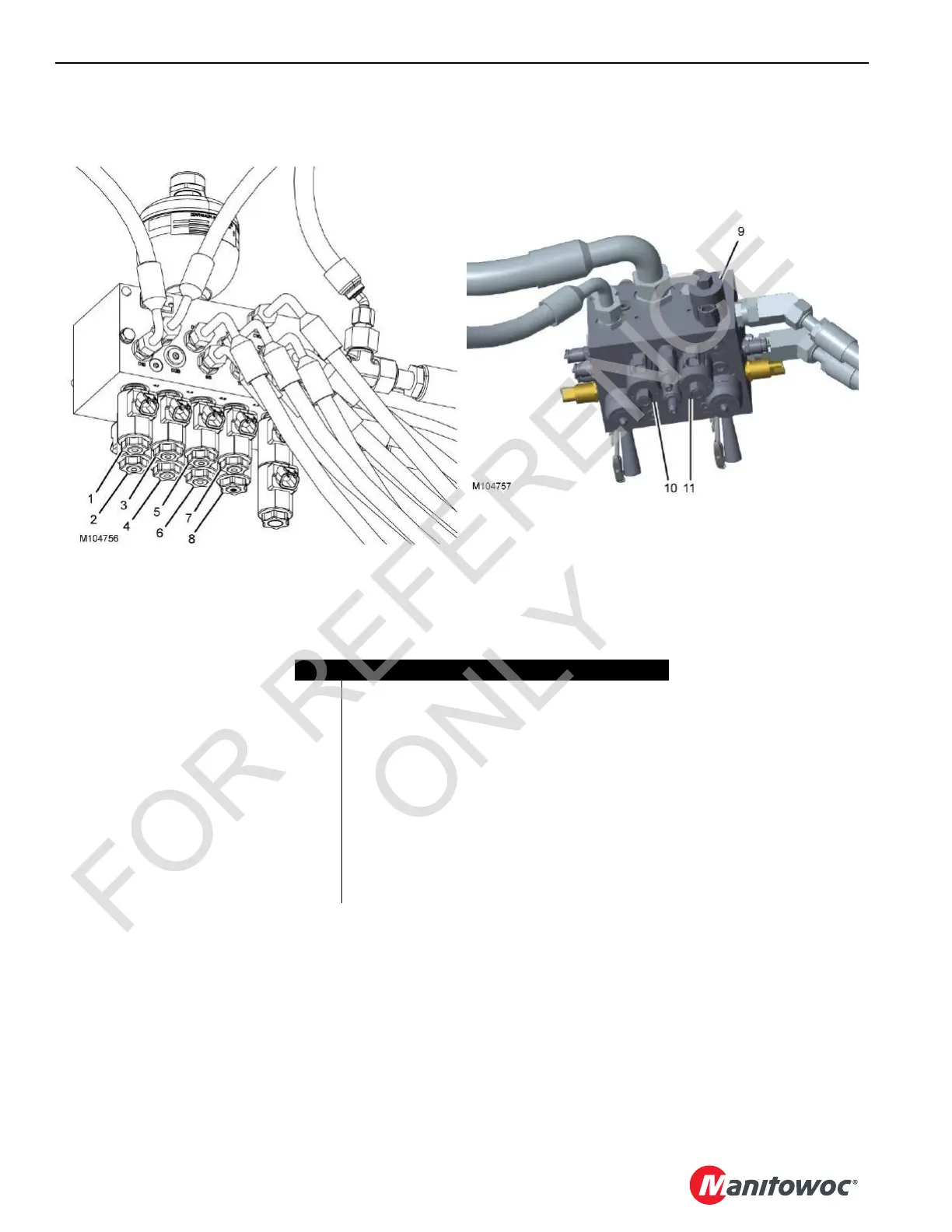

FIGURE 2-18
Item Description
1Drum 1 Brake
2Drum 2 Brake
3Drum 3 Brake
4Drum 4 Brake
5 Swing Brake
6Travel Brake
7 2-Speed Travel
8 Counterweight Pin Puller
9 Free Fall Enable
10 Proportional Brake Command Drum 1
11 Proportional Brake Command Drum 2
Low-Pressure Hydraulic Valve
Located on Rotating Bed
Free Fall Hydraulic Valve
Right Side Enclosure above Pumps
FOR REFERENCE
ONLY
