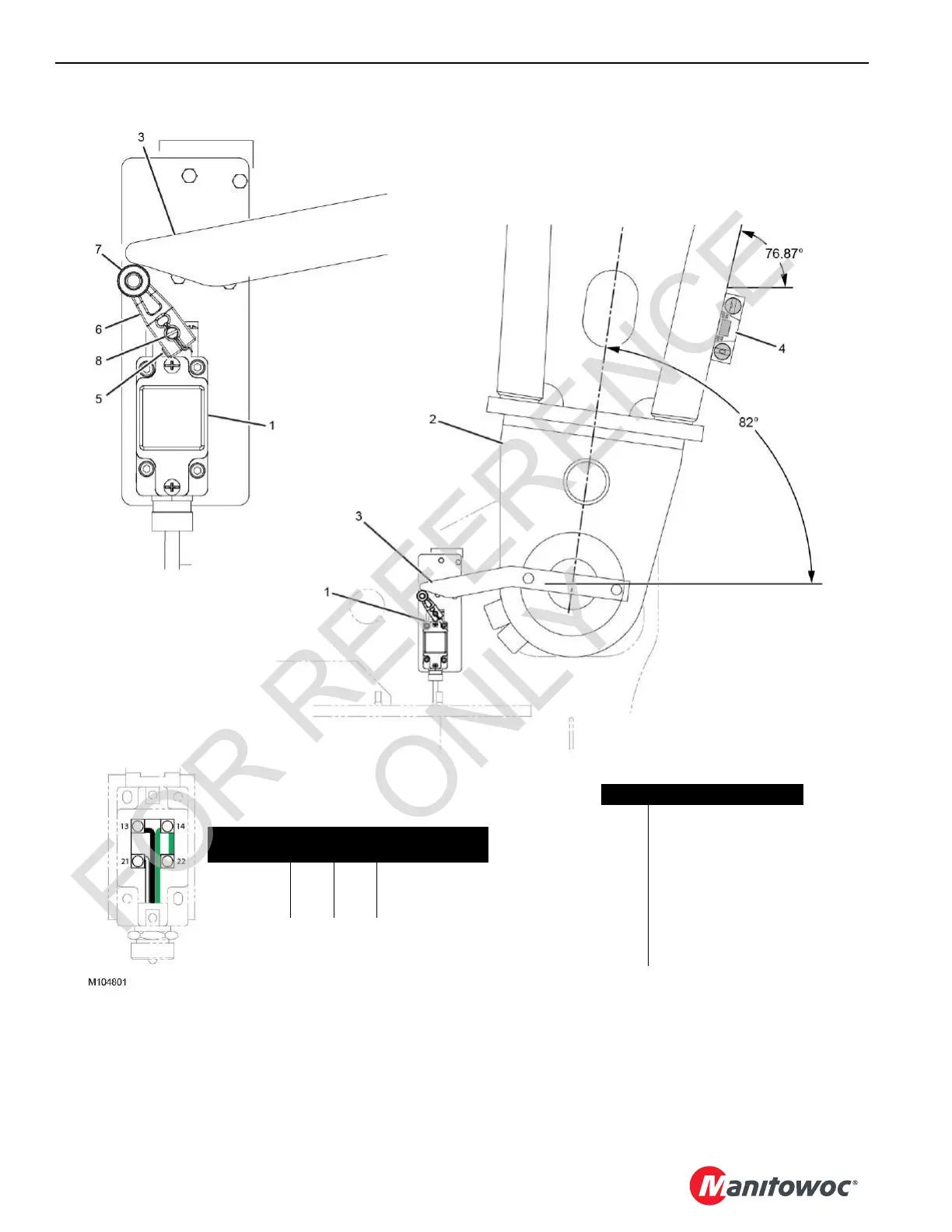

BOOM MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL
4-4
Published 10-09-2020, Control # 259-06
Item Description
1Limit Switch
2 Boom Butt
3 Actuator
4Smart Level
5 Set Screw
6 Lever
7 Roller
8 Shaft
Limit Switch Wiring
Wire Color
Switch
Terminals
Function
Green 14 22 Maximum Angle
Black 13 Ground
White 21 24 VDC Supply
FIGURE 4-3
FOR REFERENCE
ONLY
