CRANE INSTALLATION 800D
10-2
Published 5-27-2018 Control # 039-06
6. Loosely assemble flex plate and two anchor ears as
shown. Locate flex plate anchor ears to torsion box and
RSOD anchor plate as specified and tack in place. If
proper ground clearance cannot be obtained, see
location drawing for further instructions. Remove flex
plate and weld (E70) ears to torsion box and anchor
plate as specified. Install flex plate with six 5/8 in Grade
8 bolts, washers and nuts. Tighten to proper torque.
Repeat flex plate installation procedure on other side.
Raise and locate the RSOD frame to the RSOD
mounting subassembly and weld (E70).
7. Set the crane frame on the subbase and install the three
1-1/8 in diameter Grade 8 mounting bolts at each corner.
Bolt the crane to mounting anchors through tubes in the
subbase and mounting anchors to truck frame. Tighten
mounting bolts to the proper torque.

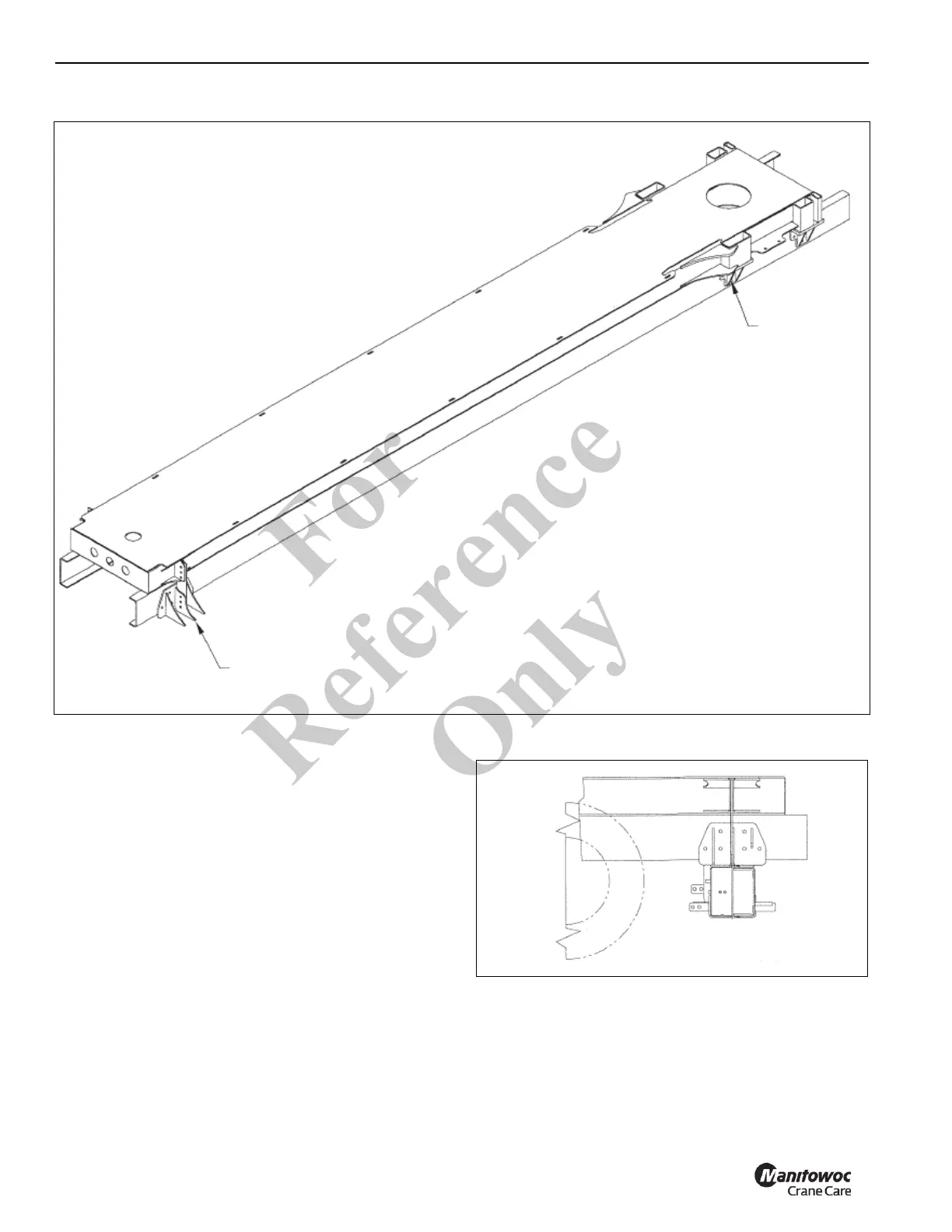

MOUNT
ANCHOR
ASSEMBLY
RSOD MOUNTING
SUB-ASSEMBLY FOR
RSOD STABILIZER
9446
SEE LOCATION DRAWING FOR
WELD CALLOUTS
9447
Fo
r
Reference
Only
