CRANE INSTALLATION 800D
10-10
Published 5-27-2018 Control # 039-06

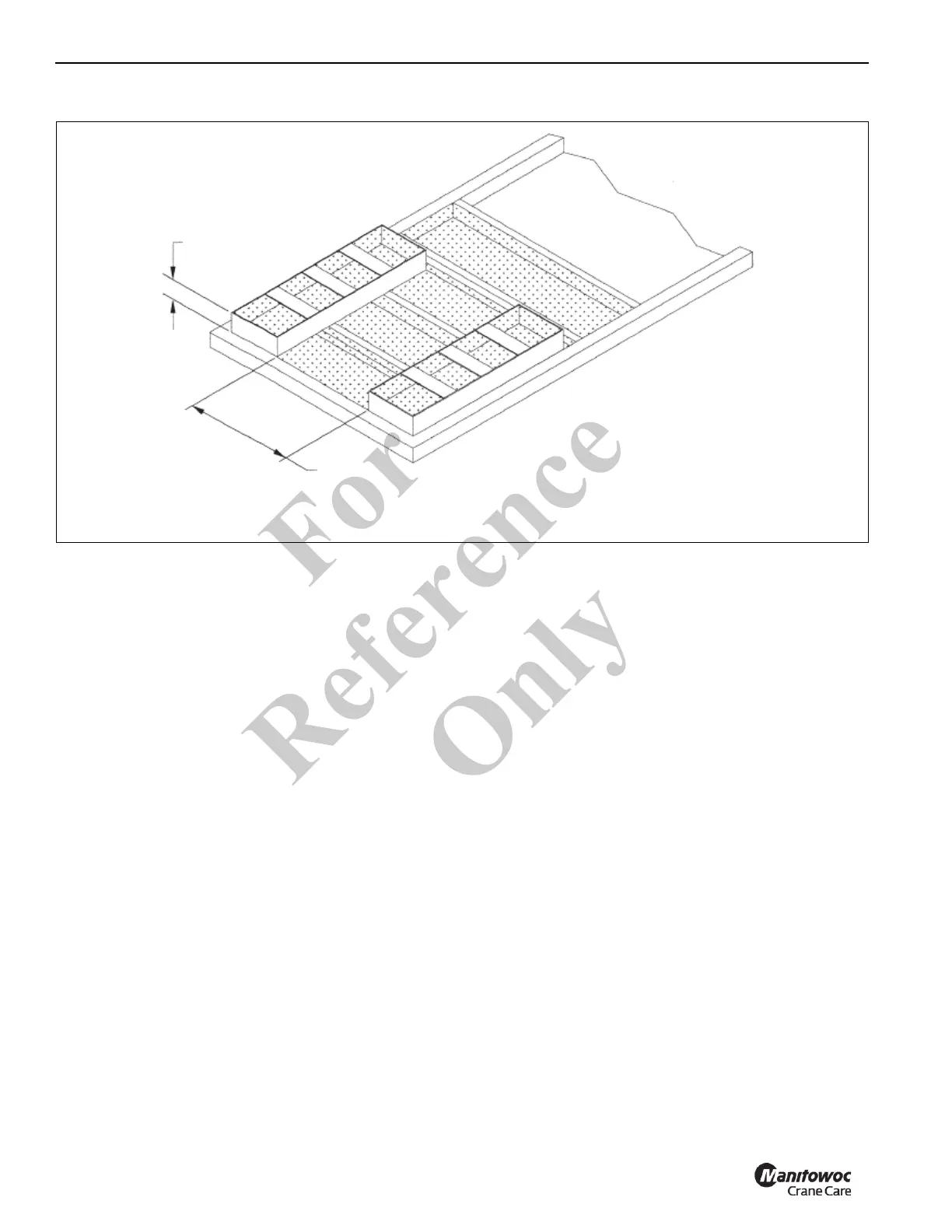

The method shown above can be use do shift more weight to
the front of the crane than the previous methods will. When
using this method check for interference with hydraulic
reservoir and truck tires. Bed attachment to truck should be
planned in advance. If the bed is attached to torsion box by
bolting through slots in torsion box, leave open area in
concrete counterweight for hardware access. The weight of
the concrete can be determined by multiplying the volume in
cubic inches by 0.083 Ib per cubic inch.
Example
Concrete poured in the bed measures 4 in (10.16 cm) deep
by 86 in (218.44 cm) wide by 70 in (177.80 cm) long. The
weight of the concrete is 4 × 86 × 70 × 0.083 = 2000 Ib (907
kg). The center of this weight will be in the center of the
concrete slab.
