ECODRIVE DKC01.1/DKC11.1 Drive Controllers
DOK-ECODRV-ASE-02VRS**-WAR1-EN-P • 07.96 Exchanging Drive Components 4-5
Cable exchange:
• Turn off the main switch
• protect against the drive being turned back on prematurely
⇒ Danger of accident with life-threatening voltage levels.
Connect or disconnect the power connector
connections for the cables only if power has been
turned off for the machine!
Note: When the cables are exchanged, open connectors from power
connections should be closed with protection covers to protect
against the spread of coolant, lubricating fluid or dirt (adm.
protection level V2).

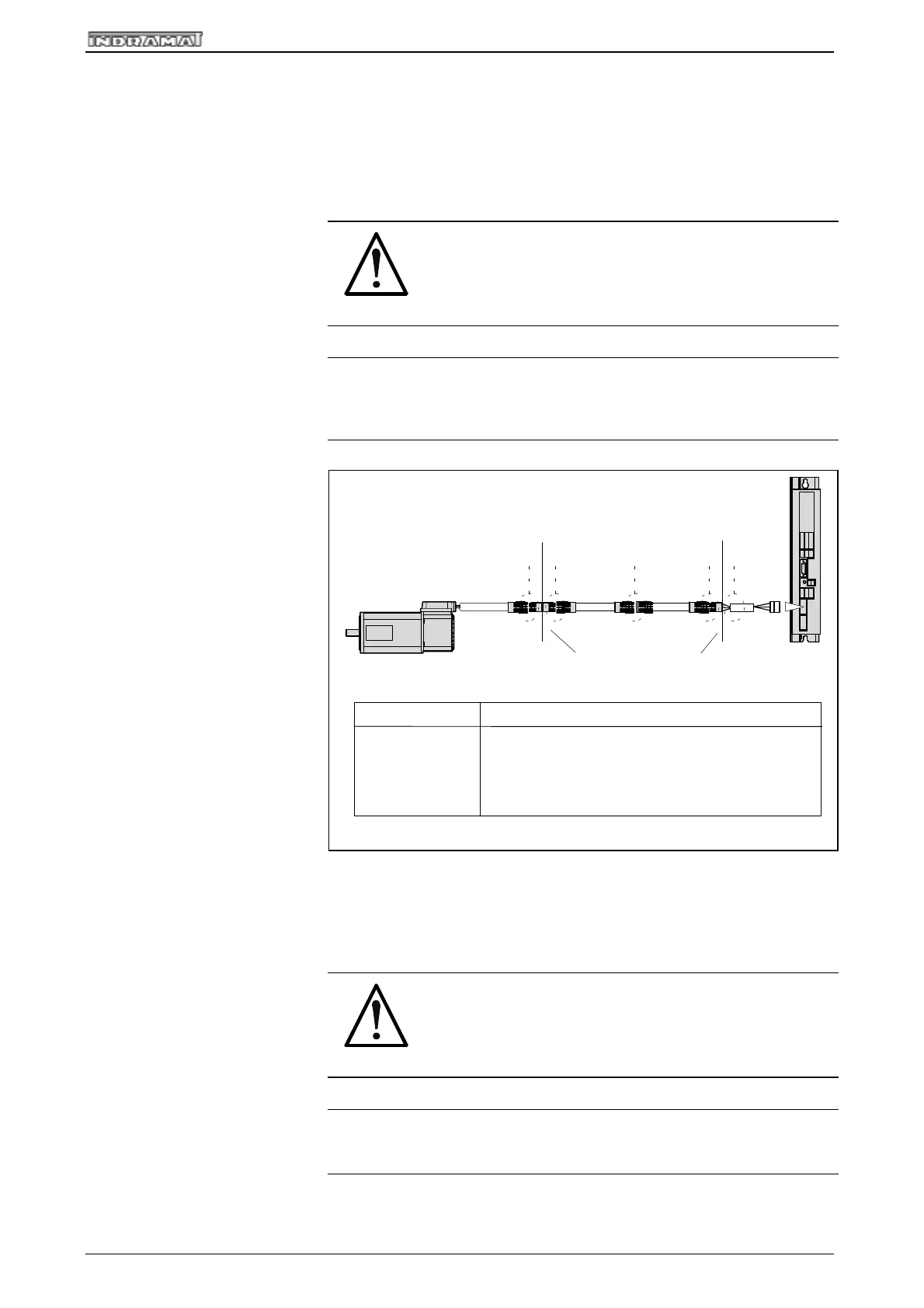

Switchboard wall
Machine housing
V2 V2 V2 V2 V2
MKD
DKC
V2
Immediate environment requirements
Conductive contamination cannot occur when operating the
control drive (at least not with the IP 65); when installing or
exchanging drive components, non-conductive contamination
or light condensation may momentarily occur.
AP5002F1.DRW
Figure 4-2: Contamination level according to DIN VDE 0160
• when exchanging cables, observe the directions given by the machine
manufacturer.
⇒ Only connect the power connectors if they are dry and
clean.
Note: If no assmebled cables from INDRAMAT are used. Check to
see if the new cables comply with the connection plan from the
machine manufacturer!
