DOK-ECODRV-ASE-02VRS**-WAR1-EN-P • 07.96 Diagnostic Message Description 1-3
If more than one diagnostic message is generated at the same point
within the string, the diagnostic with the highest priority will be displayed
first.
The following graphic shows the order of priority.
Error
Warning
Command
error
P
R
I
O
R
I
T
Y
Command
active
Read
y
to o
p
erate ?
no
y
es
Communication phase
Drive lock
active
Ready to
operate
Drive
ready
Drive
Halt
Drive
enable

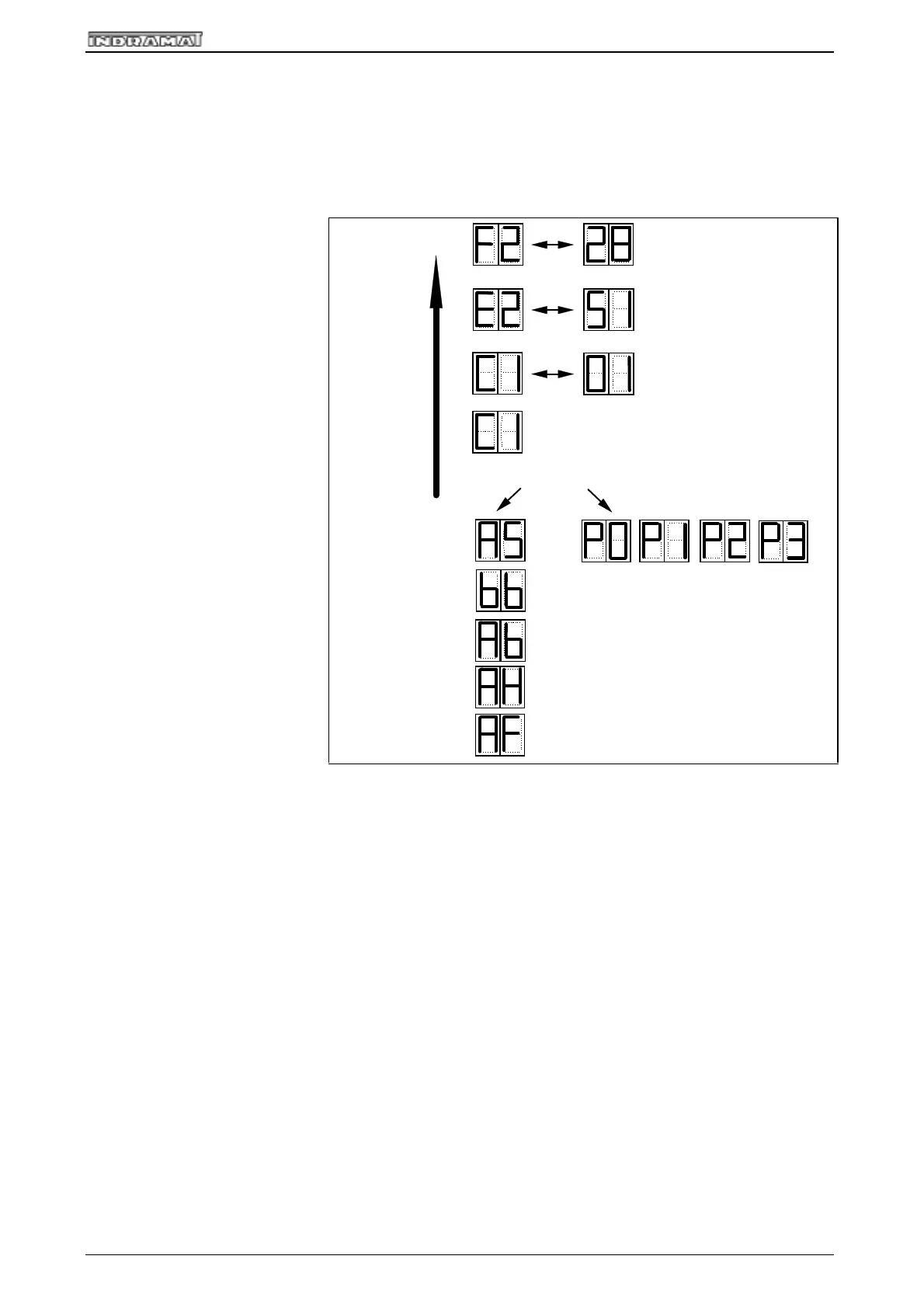

Figure 1-3: Priority dependent diagnostic message diagram
Clear Coded Text-Diagnostic Message
The clear coded text-diagnostic message contains the diagnositic number
followed by the diagnostic text; for example, "excessive output error" (Fig
1-1). It can be read from parameter “S-0-0095, diagnostic message”
and serves the direct display of the process state on a operator surface.
The clear coded text-diagnostic message will be changed over from the
language selection to the current language.
Priority of the diagnostic
message output
