Mannesmann VDO E-Tacho 1323.02 User Manual

2 Preparations for the Programming
6 Programming Instructions E-Tacho 1323.02
2 Preparations for the Programming
2.1 Connection MTC 1602.04 to the E-Tacho
1. Connect MTC via the programming line E-Tacho with
the E-Tacho 1323.02 as shown in Fig. 2.
Programming line E-Tacho
Plug A white Õ Mounting plug A
B yellow Õ B
D brown Õ D
2. Lead the power supply line (plug A white) out of the
instrument box and connect it to the programming line
E-Tacho, Pos. 5.
3. Connect MTC to the vehicle’s power supply.

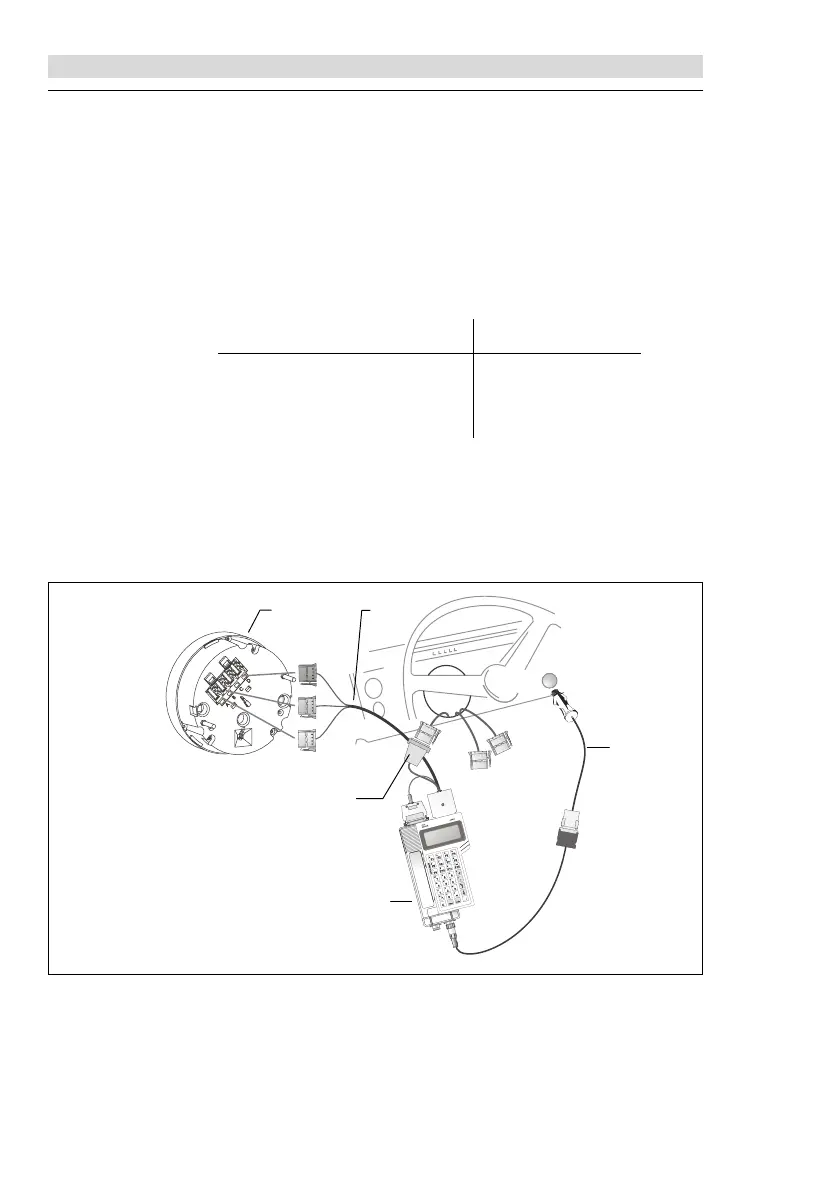

Fig. 2: Wiring diagram E-Tacho programming by means of MTC
3
4
5
1
2
