Mannesmann VDO E-Tacho 1323.02 User Manual

2.1 Connection MTC 1602.04 to the E-Tacho
© Mannesmann VDO AG 7
(1) E-Tacho 1323.02 (4) MTC 1602.04
(2) Programming line E-Tacho (5) Power supply E-Tacho
(3) Line vehicle voltage
(cigarette lighter)
(plug A white)
2.1.1
Start Programming Procedure MTC 1602.04
After having connected the MTC to the vehicle voltage,
the program starts automatically and the initial menu
appears. By means of the programming line, the
program recognises that the device is an E-Tacho.

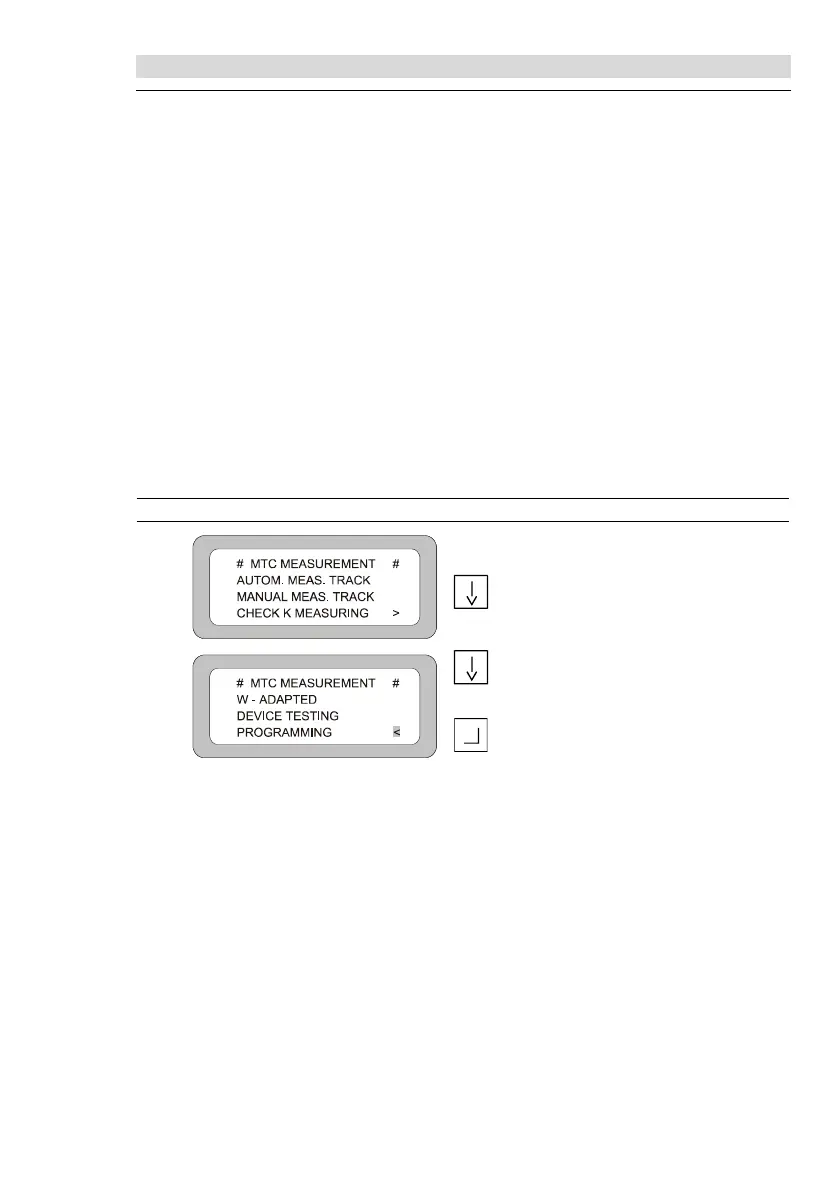

Display mask Display contents Input Programming procedure
1a
Initial menu:
Move the cursor beyond this display
mask to the next mask.
1b
Pull down the ”Programming“ menu
and ...
confirm.
The main menu E-Tacho programming with the possible
subprograms is displayed.
➥
Further steps see chap. 3 Programming Procedure.
