Mannesmann VDO E-Tacho 1323.02 User Manual

2.2 Connection ATC 1601.26 to the E-Tacho
© Mannesmann VDO AG 9
(1) E-Tacho 1323.02 (4) Connection to the interface
(2) Programming line E-Tacho (5) Power supply E-Tacho
(3) ATC 1601.26 (plug A white)
2.2.1
Start Programming Procedure ATC 1601.26
After having switched on the ATC, the program starts
automatically, and the initial menu appears. By means
of the testing line, the program recognises the device as
an E-Tacho.

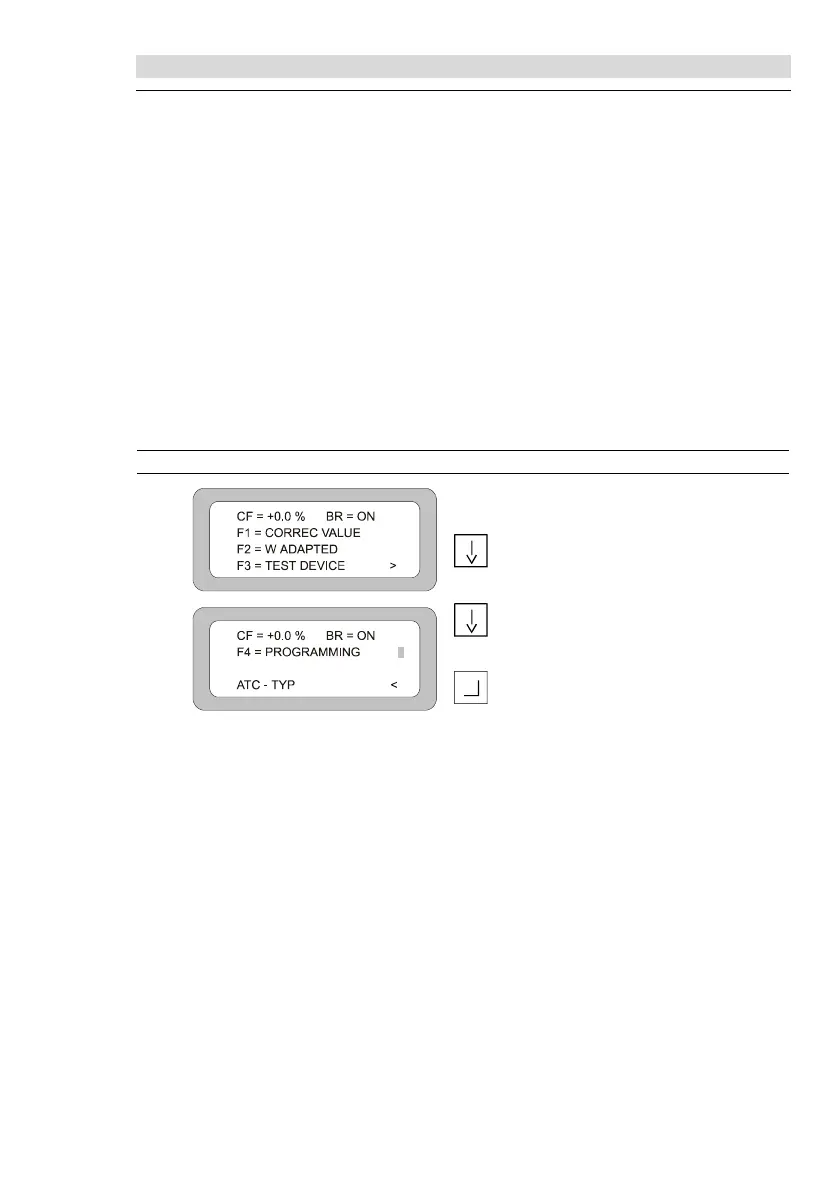

Display mask Display contents Input Programming procedure
1a
Initial menu:
Move the cursor beyond this display
mask to the next mask.
1b
Pull down the “Programming“ menu
by means of F4 or the cursor and ...
confirm.
The main menu E-Tacho programming with the possible
subprograms is displayed.
➥
Further steps see chap. 3 Programming Procedure.
