2 Preparations for the Programming

8 Programming Instructions E-Tacho 1323.02

2.2 Connection ATC 1601.26 to the E-Tacho

1. Connect ATC via the programming line E-Tacho to the

E-Tacho 1323.02 as shown in Fig. 3.

Programming line E-Tacho

Plug A white Õ Mounting plug A

B yellow Õ B

D brown Õ D

2. Connect the power supply line (white plug) with the

programming line E-Tacho, Pos. 5.

3. Connect ATC to the interface power supply unit.

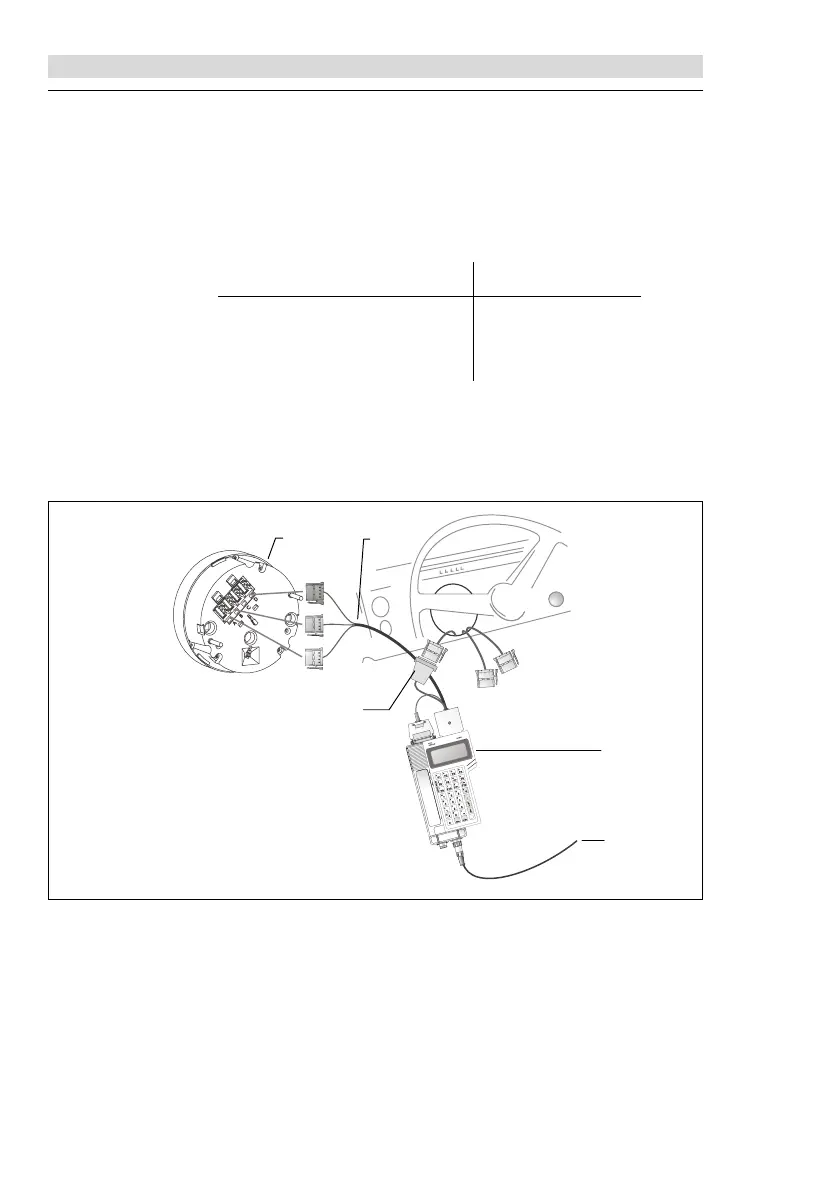

Fig. 3: Wiring diagram E-Tacho programming by means of ATC
